Removing and Installing the Top Cover

WARNING
Make sure the rack is anchored securely so it will not tilt forward when
the server chassis is extended. A crush hazard exists should the rack tilt
forward. This could cause serious injury.
CAUTION
For proper cooling and airflow, do not operate the server with the cover
removed. Always reinstall the cover before turning the server on.
Do not leave the chassis cover open or a system fan removed any longer than
necessary; system cooling could be reduced.
The server comes with a removable top cover that allows the PCI cards, memory boards, and the
system fans to be hot-swapped, and the system components to be serviced.

Removing the Top Cover

To remove the top cover, follow these instructions:
1. Observe the safety precautions, warnings, and cautions described in
2. If the chassis is rack-mounted, slide the chassis out far enough to expose the entire top cover
(see cautions and warnings above).
3. To open the top cover, unscrew the two captive screws on the faceplate of the chassis, as shown
by letter "A" in Figure 86.
4. Slide the top cover toward the back of the chassis until the tabs on the cover disengage with the
slots in the chassis. See letter "B" in the figure.
5. Lift the cover from the chassis.
A
Intel® Server Platforms SR4850HW4 & SR4850HW4/M Product Guide
B

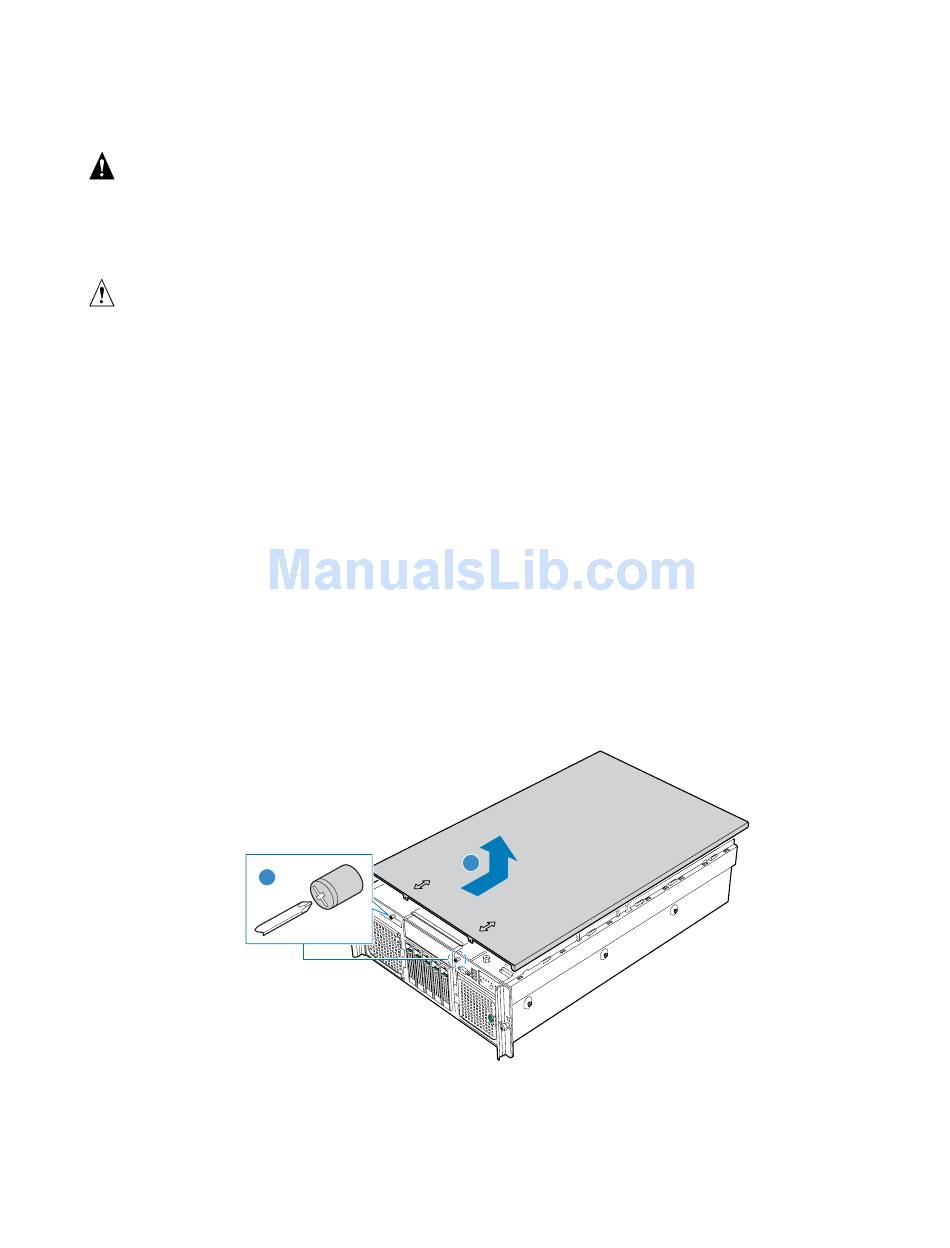

Figure 86. Removing the Top Cover

"Safety Information".
TP01403
