Servicing the Intel Management Module
7. Align the pin on the Intel® Management Module with the hole in the main board. See letter
"A" in Figure 118.
8. Align the connector on the Intel® Management Module with the connector on the main board.
See letter "B" in the figure.
9. Press the Intel® Management Module gently, but firmly into the connector until it is fully
seated.
10. Install the memory boards into Slots A and B. For instructions, see
Memory
Board".
11. Replace the top cover. For instructions, see
208

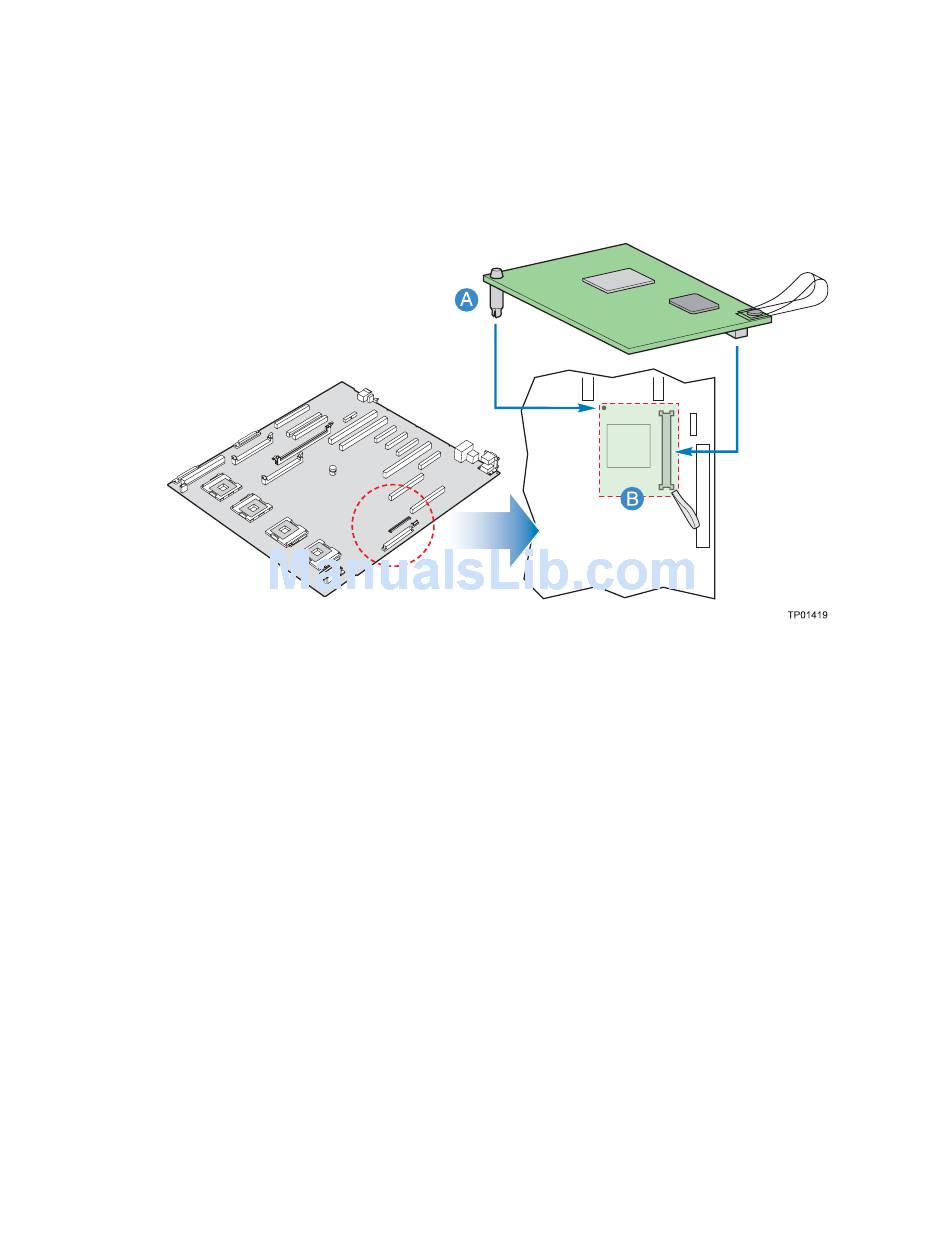

Figure 118. Installing the Intel® Management Module
Intel® Server Platforms SR4850HW4 & SR4850HW4/M Product Guide
"Cold Insertion of a
"Installing the Top
Cover".
