Servicing the RAID on MotherBoard (ROMB) Components
7. Route the battery cable through the holder on the side of the chassis. See letter "A" in Figure
107.
8. Attach the connector on the cable to the 2 x10 header on the main board at J1H1. This
connector is labeled "BBU". See letter "B" in Figure 107.
9. Fit the hooks on the back of the battery into the matching slots on the chassis. See Figure 108.
196
A
B

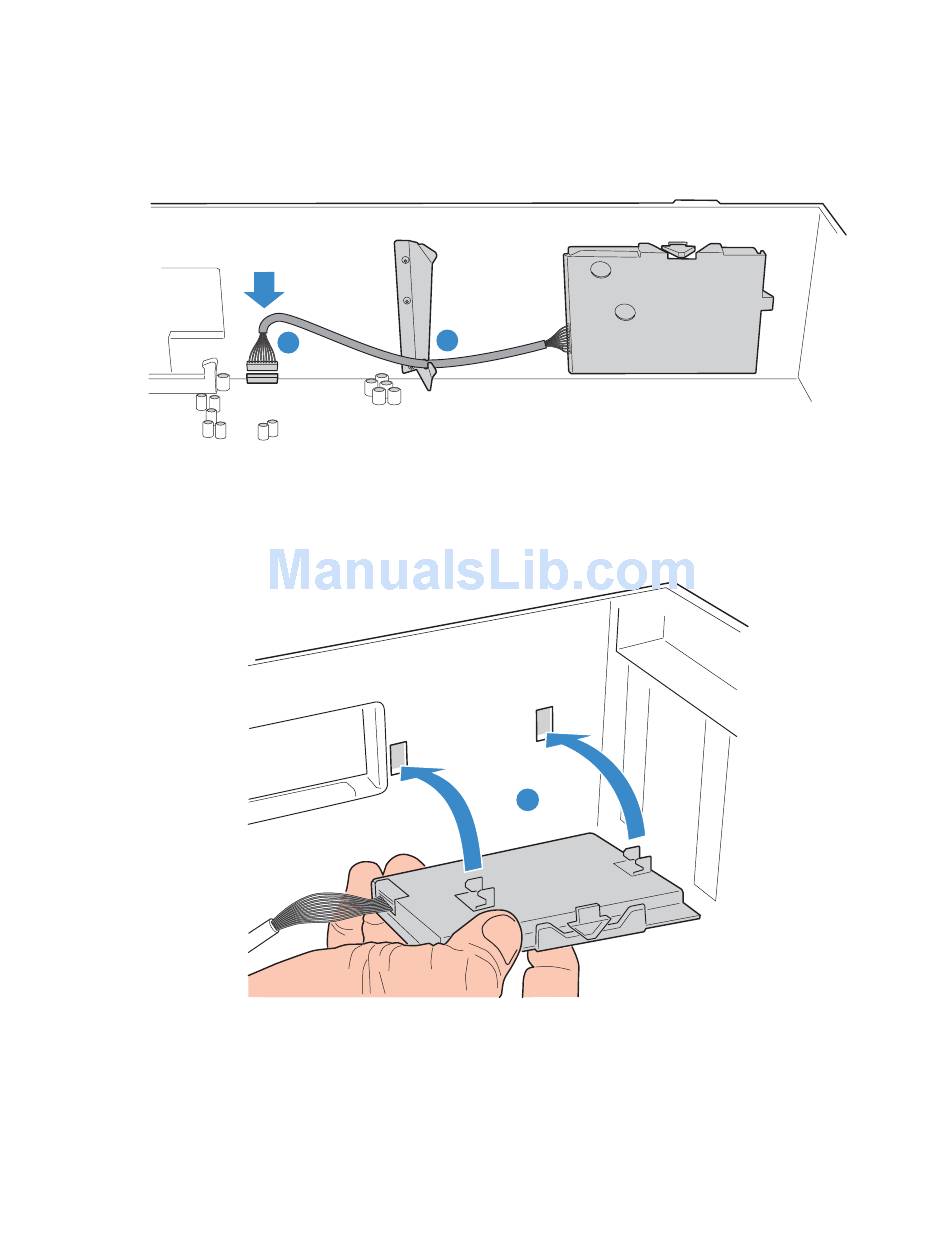

Figure 107. Route and Connect RAID Battery Cable
Figure 108. Attach Intel® RAID Smart Battery to Chassis
Intel® Server Platforms SR4850HW4 & SR4850HW4/M Product Guide
A
TP01407
TP01409
