Removing a Hard Disk Drive

1. Observer the safety, ESD, and other precautions described in
2. Press on the green drive carrier latch. See letter "A" in Figure 64.
3. Pull the handle to remove the drive cage from the chassis. See letter "B" in the figure.
4. Place the drive cage on a clean, static-free work surface.

Mounting a Hard Disk Drive in a Carrier

To mount a hard drive in a carrier:
1. Observer the safety, ESD, and other precautions described in
2. Remove the hard disk drive from the protective wrapper and place it on a clean ESD-protected
work surface.
3. Record the model and serial number of the drive in your "Equipment".
4. Set any jumpers and/or switches on the drive according to the drive manufacturer's
instructions.
5. If the drive carrier is installed in the chassis, remove it and place it on a clean static-free work
surface. For instructions, see
6. Remove the four screws that hold the air baffle in place. See letter "A" in Figure 65.
7. Remove the air baffle from the carrier. See letter "B" in the figure.
8. Store the air baffle for future reinstallation.

Figure 65. Removing the Air Baffle from the Hard Disk Drive Carrier

Intel® Server Platforms SR4850HW4 & SR4850HW4/M Product Guide
A

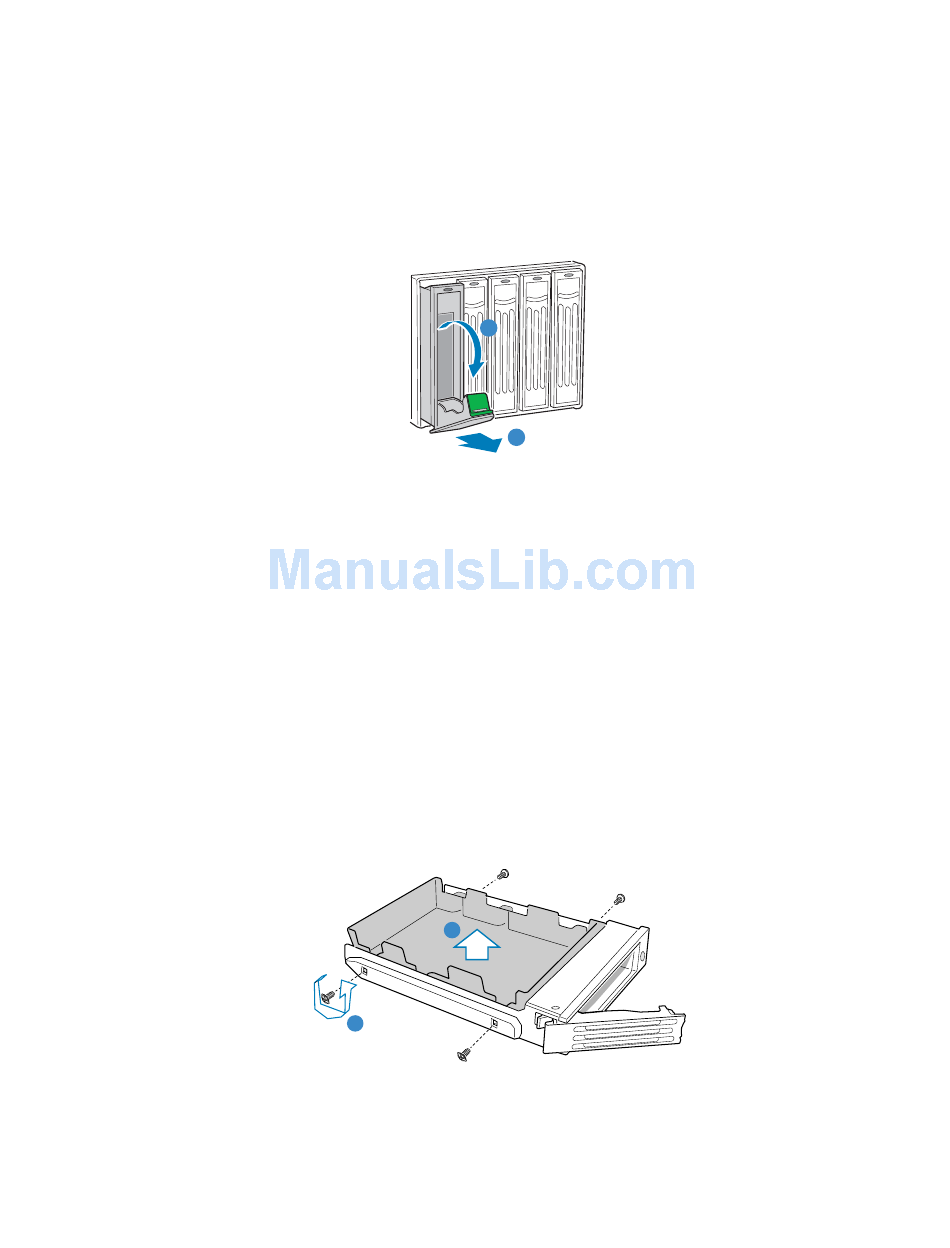

Figure 64. Removing a Hard Disk Drive Carrier

"Removing a Hard Disk
B
A
"Safety Information."
B
TP01431
"Safety Information."
Drive".
TP01432
141
