Hot-insertion of a Memory Board

1. Add or replace memory DIMMs as needed. For instructions, see
DIMMs".
2. Ensure the handle on the memory board is in the open / up position.
3. Align the ends in the card guides and slide the memory board into the memory board slot. See
letter "A" in Figure 78.
4. Push the handle down into the fully-locked position. See letter "B" in the figure.
5. Install the top cover. For instructions, see
158
"Installing the Top
B

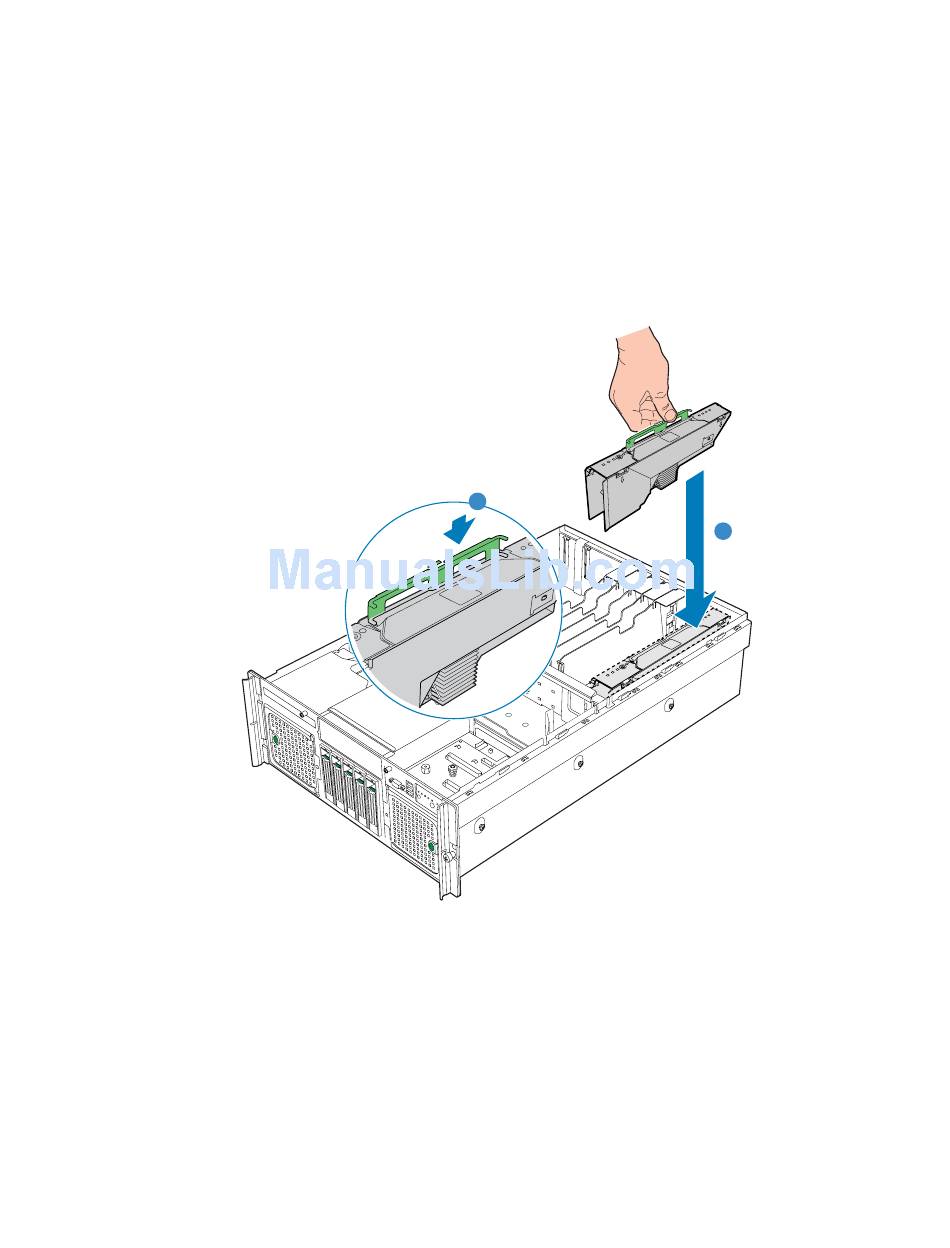

Figure 78. Installing Memory Board
