Figure 28. Lan Channel Setup Screen 3 - Intel SR4850HW4 - Server Platform - 0 MB RAM Product Manual

Service Technicians Guide
LAN Channel Configuration Screen 3 – LAN Alerting Setup
This screen allows you to continue to enter the necessary settings to configure the specified LAN
channel.
Enable LAN Alerting: Allows you to configure the LAN alert settings for this LAN channel
on the server. The availability of all settings on this display depends on the setting of this
checkbox.
Alert Destination Console 1 IP Address: Allows you to enter the first alert destination IP
address for this LAN channel. The Alert IP Address is the logical or Internet address of the
Alert-Destination. In case of single node destination this is the unicast or specific IP address.
This is the IP Subnet address if the alert needs to be broadcast within a particular subnet. The IP
is entered as a dotted decimal IP, such as 192.168.0.2.
Resolve Alert Destination 1 MAC Address: Instructs the SCW to resolve the MAC address of
the first alert destination IP address. If the Alert Destination MAC address cannot be resolved,
then the SCW will display a dialog which allows you to enter in a MAC address. A final option
would be to just continue, which would result in alerts being sent via broadcast.
Alert Destination 1 MAC Address: The Alert Destination MAC Address is the physical or the
Ethernet address of the Alert Destination. It corresponds to the Alert Destination IP Address.
The MAC address is entered as six dotted hexadecimal bytes, such as 3e.4d.ab.12.c3.23.
88

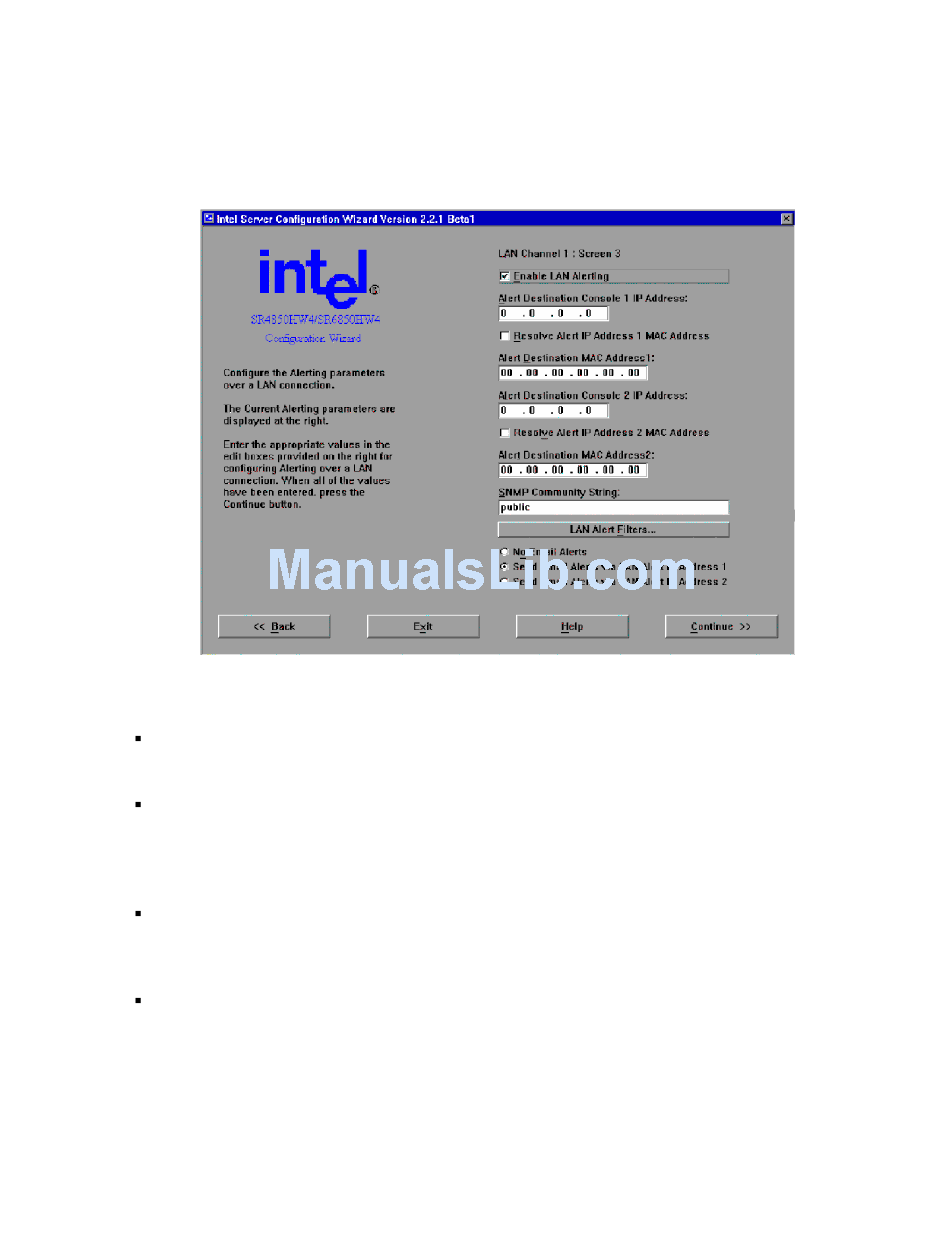

Figure 28. LAN Channel Setup Screen 3
