Installing The Main Board; Figure 123. Installing The Main Board - Intel SR4850HW4 - Server Platform - 0 MB RAM Product Manual

Installing the Main Board

To install the main board, follow these instructions:
1. Observe the safety precautions, warnings, and cautions described in
2. Set the main board into the chassis. See letter "A" in Figure 123.
3. Hold up the plunger at the center of the board. See letter "B" in the figure.
4. While holding the plunger, slide the board to the rear of the chassis, aligning the two slots at the
rear of the board with the tabs in the chassis. See letter "C" in the figure.
5. Release the plunger and ensure it is fully seated.
Intel® Server Platforms SR4850HW4 & SR4850HW4/M Product Guide
A
B

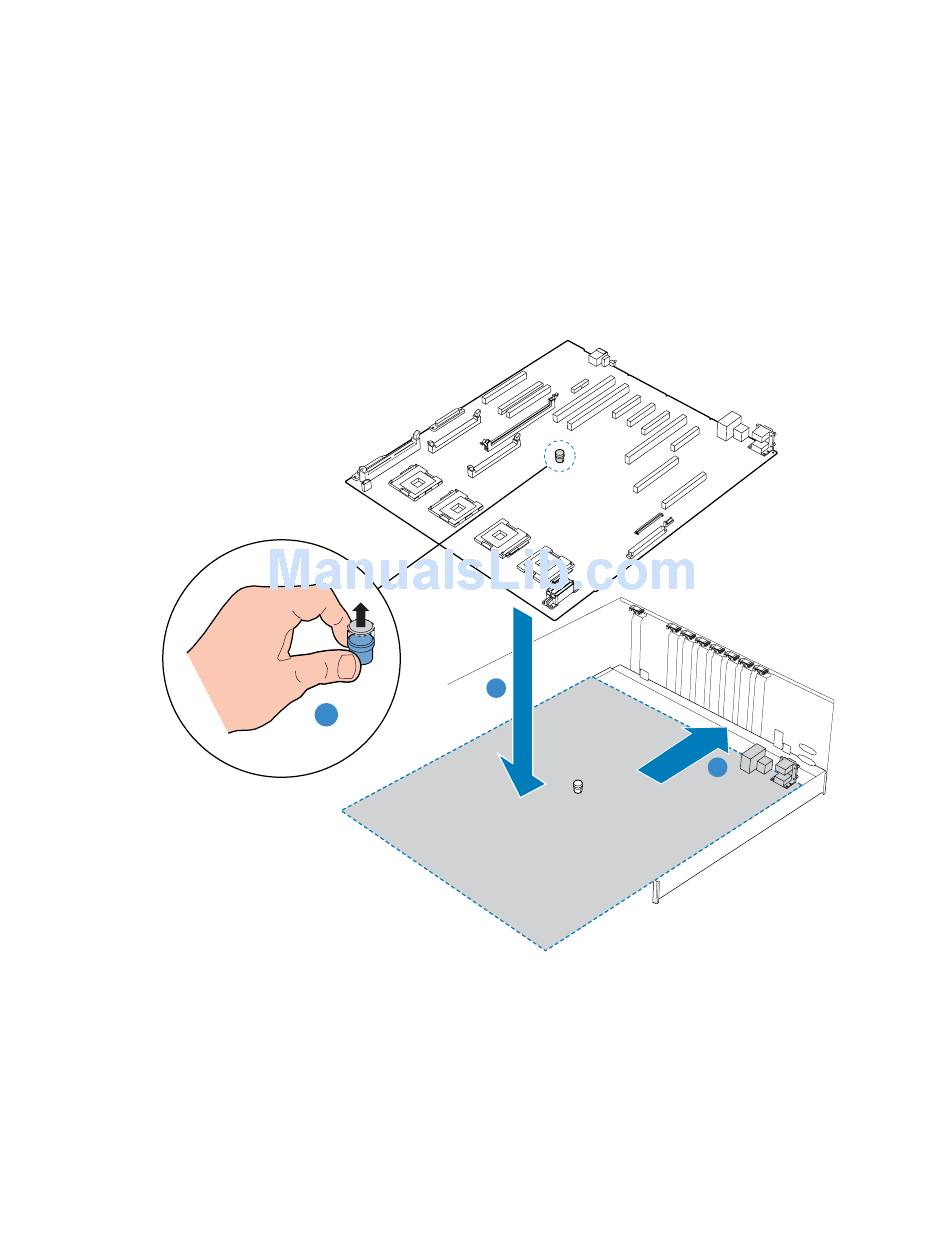

Figure 123. Installing the Main Board

"Safety Information".
