10. Push the battery to the left to latch the battery into place. See Figure 109.
11. Install the memory board or the memory board air baffle into Slot D. For instructions, see
"Cold Insertion of a Memory
12. Install the top cover. For instructions, see
Removing the Intel® RAID Smart Battery
1. Observe the safety precautions, warnings, and cautions described in
2. Turn off all peripheral devices connected to the system.
3. Power down the system and unplug both AC power cords.
4. Remove the top cover. For instructions, see
5. Remove the memory board or the memory board air baffle from Slot D. For instructions, see
"Cold Removal of Memory
6. Disconnect the battery cable from the main board.
7. Pinch the top and bottom covers of the battery holder to open it.
8. Remove the Intel® RAID Smart Battery from the chassis.
9. Install the memory board or the Memory Baffle air baffle into Slot D. For instructions, see
"Cold Insertion of a Memory
10. Install the top cover. For instructions, see
Intel® Server Platforms SR4850HW4 & SR4850HW4/M Product Guide

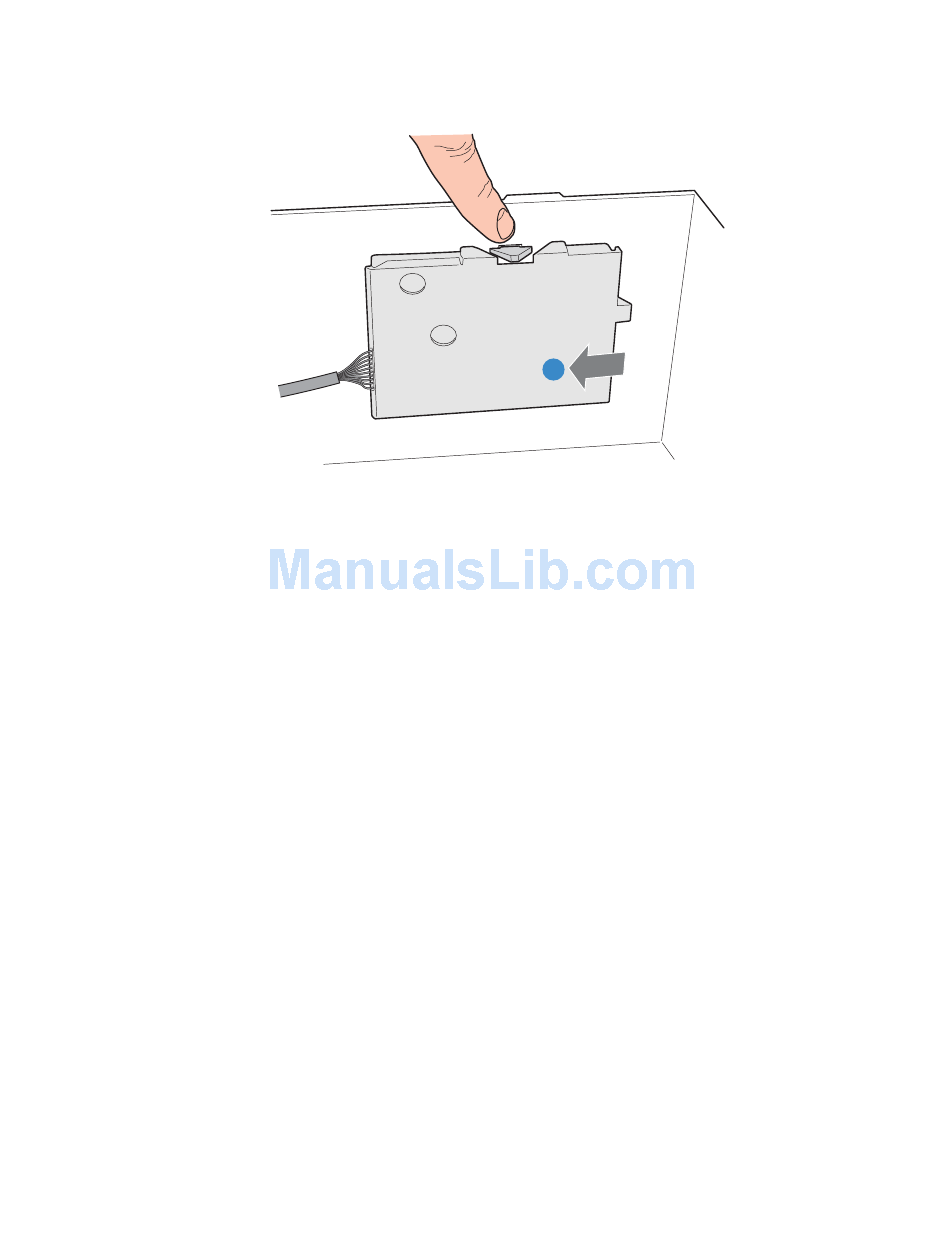

Figure 109. Lock Intel® RAID Smart Battery into Place
Board".
Board".
Board".
B
"Installing the Top Cover".
"Removing the Top Cover".
"Installing the Top Cover".
TP01408
"Safety Information".
197
