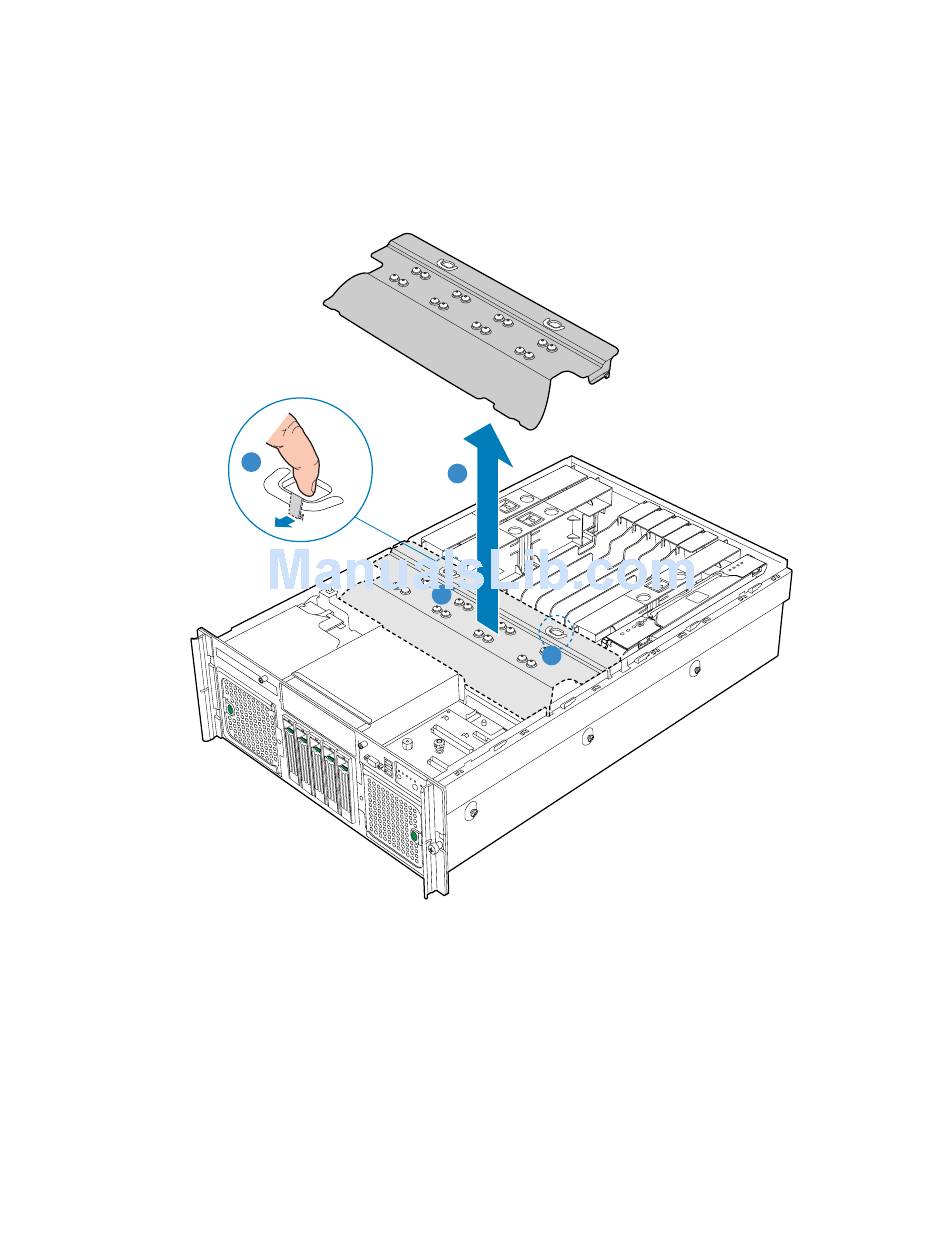

Figure 88. Removing The Processor Air Baffle - Intel SR4850HW4 - Server Platform - 0 MB RAM Product Manual

Working Inside the System
10. Insert your fingers in the holes in the top of the baffle. See letter "A" in Figure 88.
11. Pull the baffle up and back to disengage the baffle from the two-sheetmetal tabs at the front of
the baffle.
12. Lift the baffle up to remove it. See letter "B" in the figure.
A
172
B
A

Figure 88. Removing the Processor Air Baffle

Intel® Server Platforms SR4850HW4 & SR4850HW4/M Product Guide
