Goodrive300 Series VFD

5.4 Keypad operation

Operate the VFD via operation panel. See the detailed structure description of function codes in the
brief diagram of function codes.
5.4.1 How to modify the function codes of the VFD
The VFD has three levels menu, which are:
1. Group number of function code (first-level menu)
2. Tab of function code (second-level menu)
3. Set value of function code (third-level menu)
Remarks: Press both the PRG/ESC and the DATA/ENT can return to the second-level menu from the
third-level menu. The difference is: pressing DATA/ENT will save the set parameters into the control
panel, and then return to the second-level menu with shifting to the next function code automatically;
while pressing PRG/ESC will directly return to the second-level menu without saving the parameters,
and keep staying at the current function code.
Under the third-level menu, if the parameter has no flickering bit, it means the function code cannot be
modified. The possible reasons could be:
1) This function code is not modifiable parameter, such as actual detected parameter, operation
records and so on;
2) This function code is not modifiable in running state, but modifiable in stop state.
Example:Set function code P00.01 from 0 to 1.
All digits are blinking.
Note: When setting the value, you can press
5.4.2 How to set the password of the VFD
Goodrive300 series VFDs provide password protection function to users. Set P7.00 to gain the
password and the password protection becomes valid instantly after quitting from the function code
editing state. Press PRG/ESC again to the function code editing state, "0.0.0.0.0" will be displayed.
Unless using the correct password, the operators cannot enter it.
Set P7.00 to 0 to cancel password protection function.
The password protection becomes effective instantly after retreating form the function code editing
state. Press PRG/ESC again to the function code editing state, "0.0.0.0.0" will be displayed. Unless
using the correct password, the operators cannot enter it.
PRC DATA
ESC ENT
PRC
ESC
The units place is blinking.
The units place is blinking.
»
SHIFT

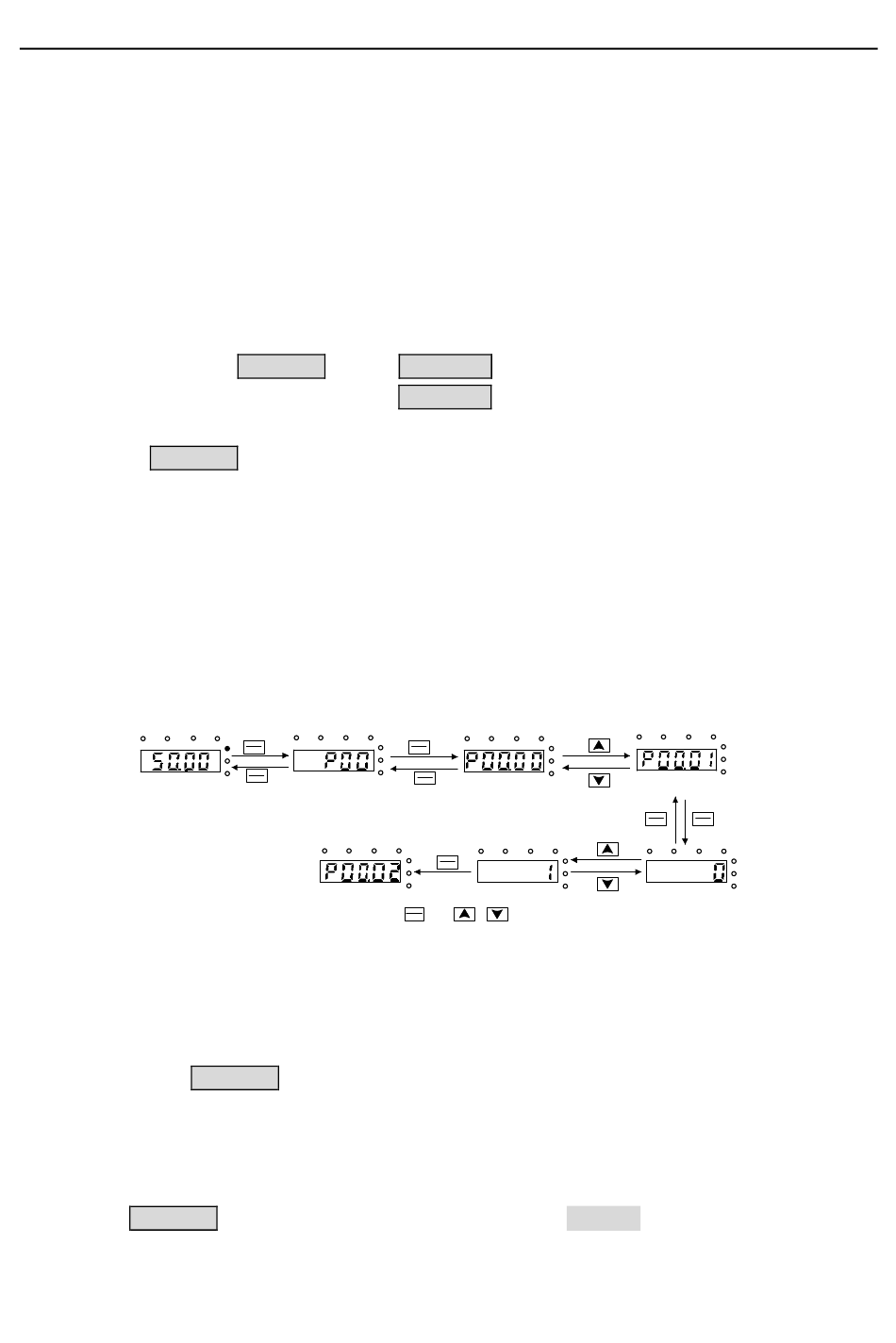

Figure 5-3 Sketch map of modifying parameters
PRC
ESC
The units place is blinking. The units place is blinking.
DATA
ENT
and + to modify the value.
38
Keypad operation procedure
PRC DATA
ESC ENT
