Goodrive300 Series VFD
Environment
Storage
temperature
Running environment
condition
Altitude
Vibration
Installation direction
Note:
 Goodrive300 series VFDs should be installed in a clean and ventilated environment according
to enclosure classification.
 Cooling air must be clean without corrosive gas or electrically conductive dust.
4.2.2 Installation direction
The VFD may be installed on the wall or in a cabinet.
The VFD must be installed upright. Check the installation site according to the requirements below.
Refer to Appendix C "Dimension drawings" in the appendix for frame details.
a. Vertical installation
corrosive air.
-30–+60° C
The installation site of the VFD should:
keep away from the electromagnetic radiation source;
keep away from contaminative air, such as corrosive gas, oil mist and
flammable gas;
ensure foreign objects, such as metal power, dust, oil, water cannot
enter into the VFD (do not install the VFD on the flammable materials
such as wood);
keep away from direct sunlight, oil mist, steam and vibration
environment.
When the altitude exceeds 1000m but is lower than 3000m, derate 1%
for every additional 100m;
When the altitude exceeds 2000m, configure an isolation transformer
on the input end of the VFD.
When the altitude exceeds 3000m but is lower than 5000m, contact us
for technical consultation. Do not use the VFD at an altitude higher
than 5000m.
2
≤ 5.88m/s (0.6g)
The VFD should be installed upright to ensure the cooling effect.
OK
b. Horizontal installation

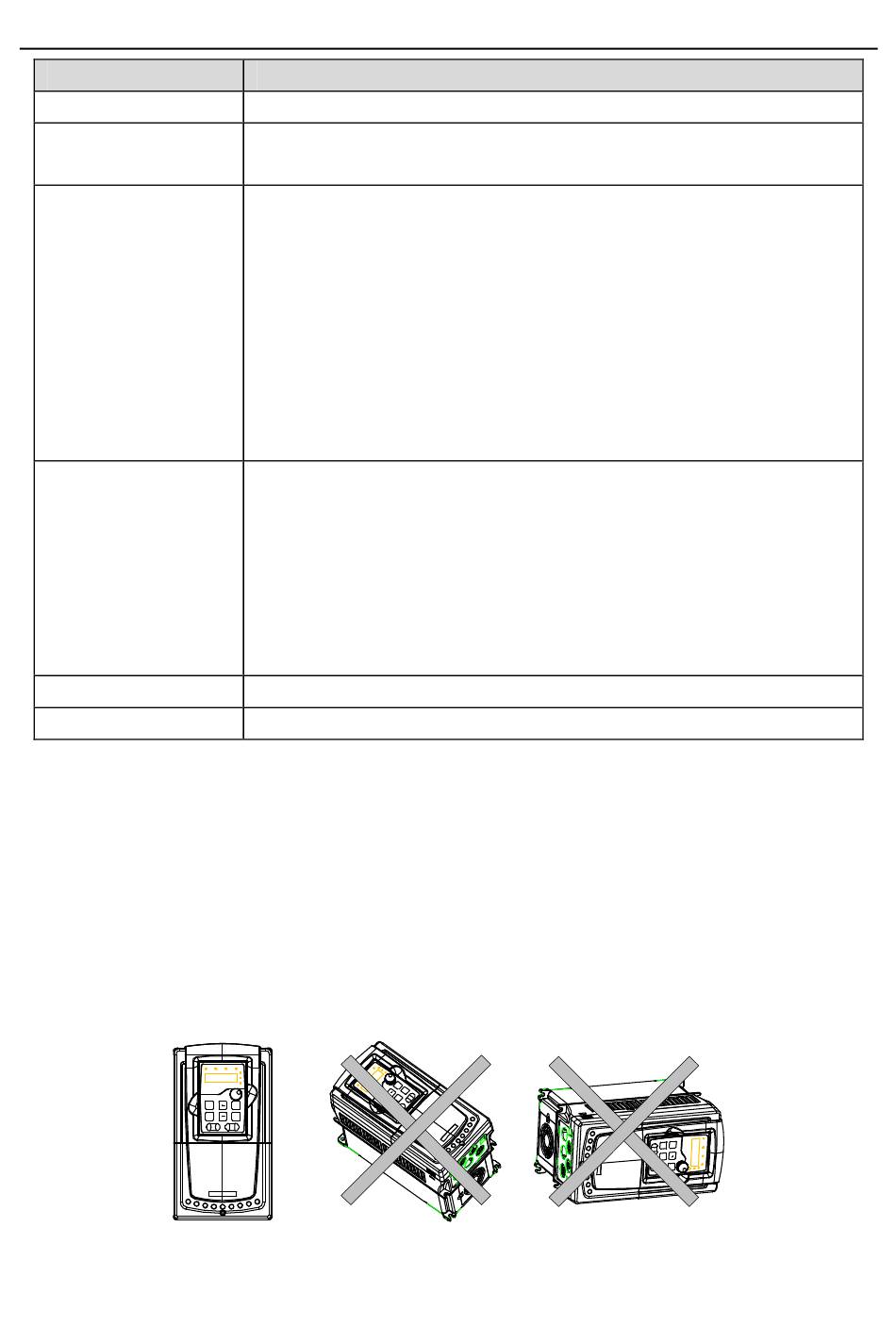

Figure 4-1 Installation direction of the VFD
Conditions
NO
c. Transverse installation
17
Installation guide
NO
