Goodrive300 Series VFD

4.3 Standard wiring

4.3.1 Main circuit connection diagram
4.3.1.1 Main circuit connection diagram of VFDs of AC 3PH 380V (-15%)–440V (+10%)
Single-phase 220V
(optional)
AC 3PH
380V (-15%)–440V (+10%)
50/60Hz
Single-phase 220V
(optional)
AC 3PH
380V (-15%)-440V (+10%)
50/60Hz
Note:
 The fuse, DC reactor, braking unit, braking resistor, input reactor, input filter, output reactor,
output filter are optional parts. Please refer to Appendix D "Peripherial options and parts" for detailed
information.
 A1 and A2 are optional parts.
 P1 and (+) are short circuited in factory for the VFDs of 380V (≥37kW), if need to connect with
the DC rector, please remove the contact tag between P1 and (+).
 Before connecting the braking resistor cable, remove the yellow labels of PB, (+), and (-) from
the terminal blocks. Otherwise, poor connection may occur.
A1
A2
Input
R
reactor
S
Input
T
filter
Fuse
A1
A2
Input R
reactor
S
Input
T
filter
Fuse

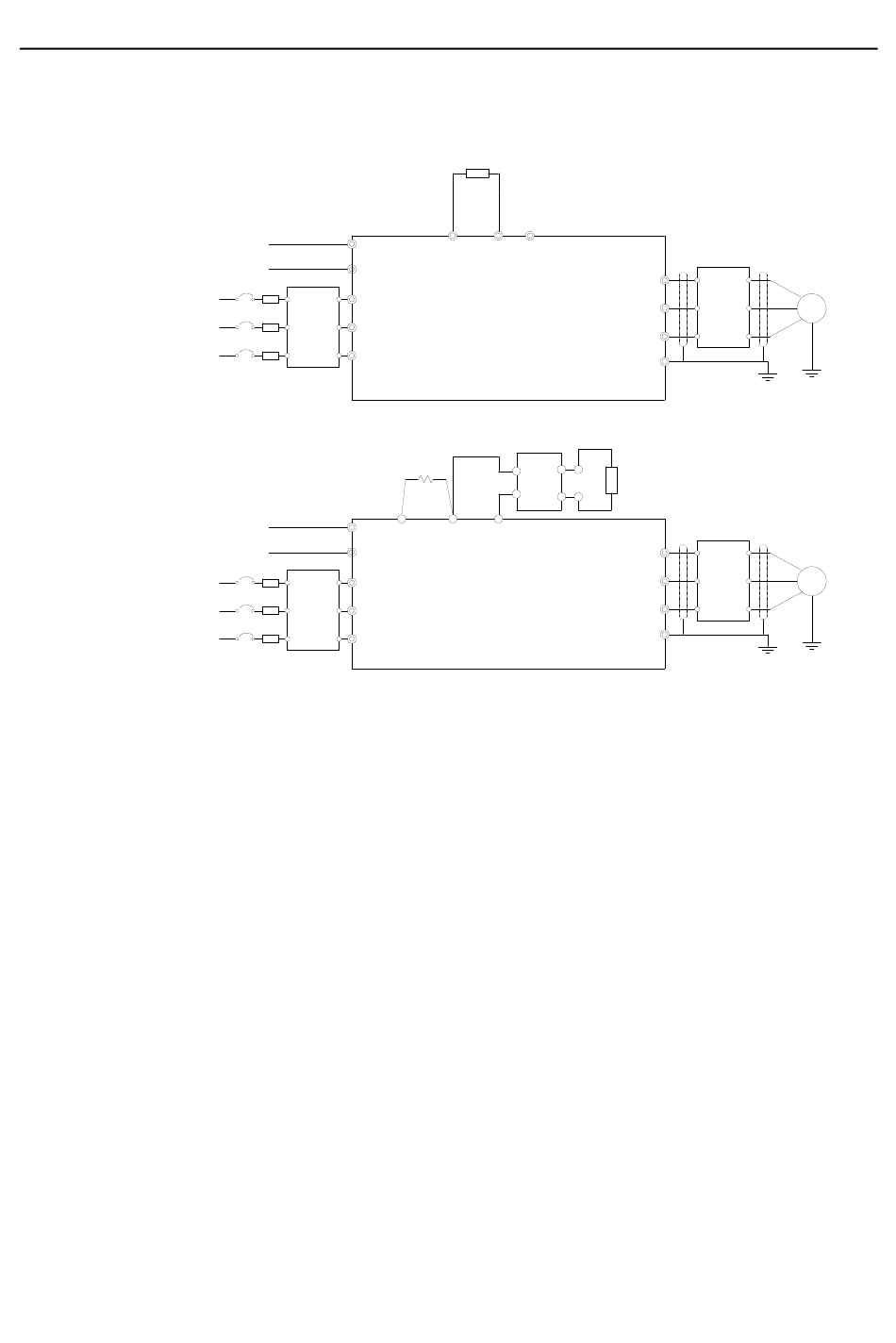

Figure 4-7 Main circuit connection diagram of 380V VFDs
Brake resistor
PB
(+) (-)
VFDs (≤30 kW)
Brake unit
DC reactor
DC+
DC-
P1
(+) (-)
VFDs (≥37 kW)
22
Installation guide
Output
U
reactor
V
Output
W
filter
PE
Brake resistor
Output
U
reactor
V
Output
W
filter
PE
M
M
