Goodrive300 Series VFD
Model
1.5kW–2.2kW
4kW–5.5kW
7.5kW–11kW
15kW–18.5kW
22kW–30kW
37kW–55kW
75kW–110kW
132kW–200kW
220kW–280kW
315kW

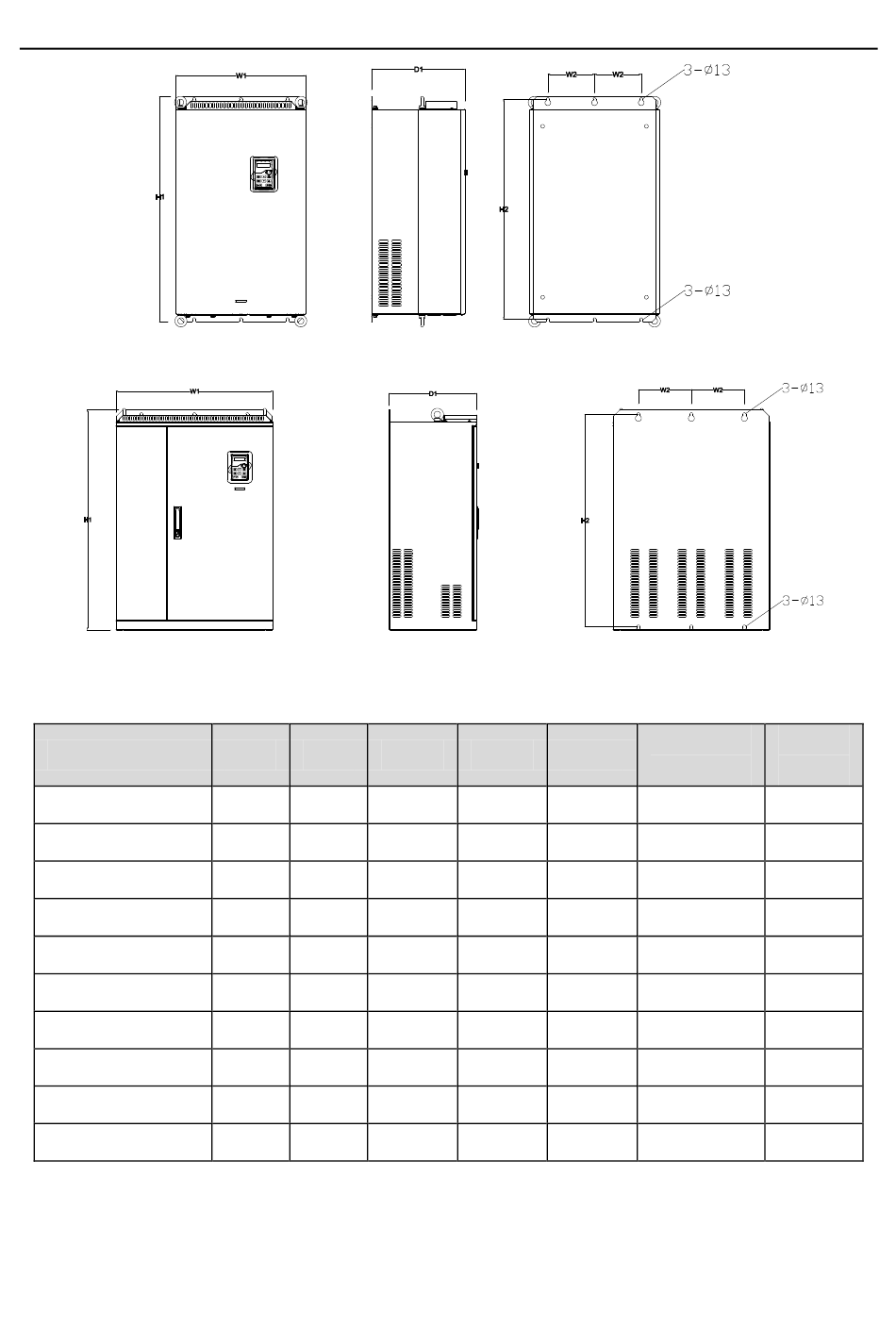

Wall installation of 380V 132-200kW VFDs
Wall installation of 380V 220-315kW VFDs
Installation dimension (unit: mm)
W1 W2 H1
126 115 193
146 131 263
170 151 331.5
230 210 342
255 237 407
270 130 555
325 200 680
500 180 870
680 230 960
680 230 960
H2 D1
175 174.5
243.5 181
303.5 216
311 216
384 245
540 325
661 365
850 360
926 380
926 380
253
Dimension drawings
Installation Weight
hole (kg)
5 2
6 3.5
6 6
6 7.8
7 9.5
7 30
9.5 47
11 85
13 135
13 137
