INVT Goodrive300 Series Operation Manual page 23

Goodrive300 Series VFD Installation guide
4.2.3 Installation mode
The VFD can be installed in three different ways, depending on the frame size:
a) Wall mounting, applicable for VFDs of 380V (≤315kW), 500V (≤75kW), and 660V (≤350kW)
b) Flange mounting, applicable for VFDs of 380V (≤200kW), 500V (≤75kW), and 660V (≤200kW)
c) Floor mounting, applicable for VFDs of 380V (220–500kW) and 660V (250–630kW)

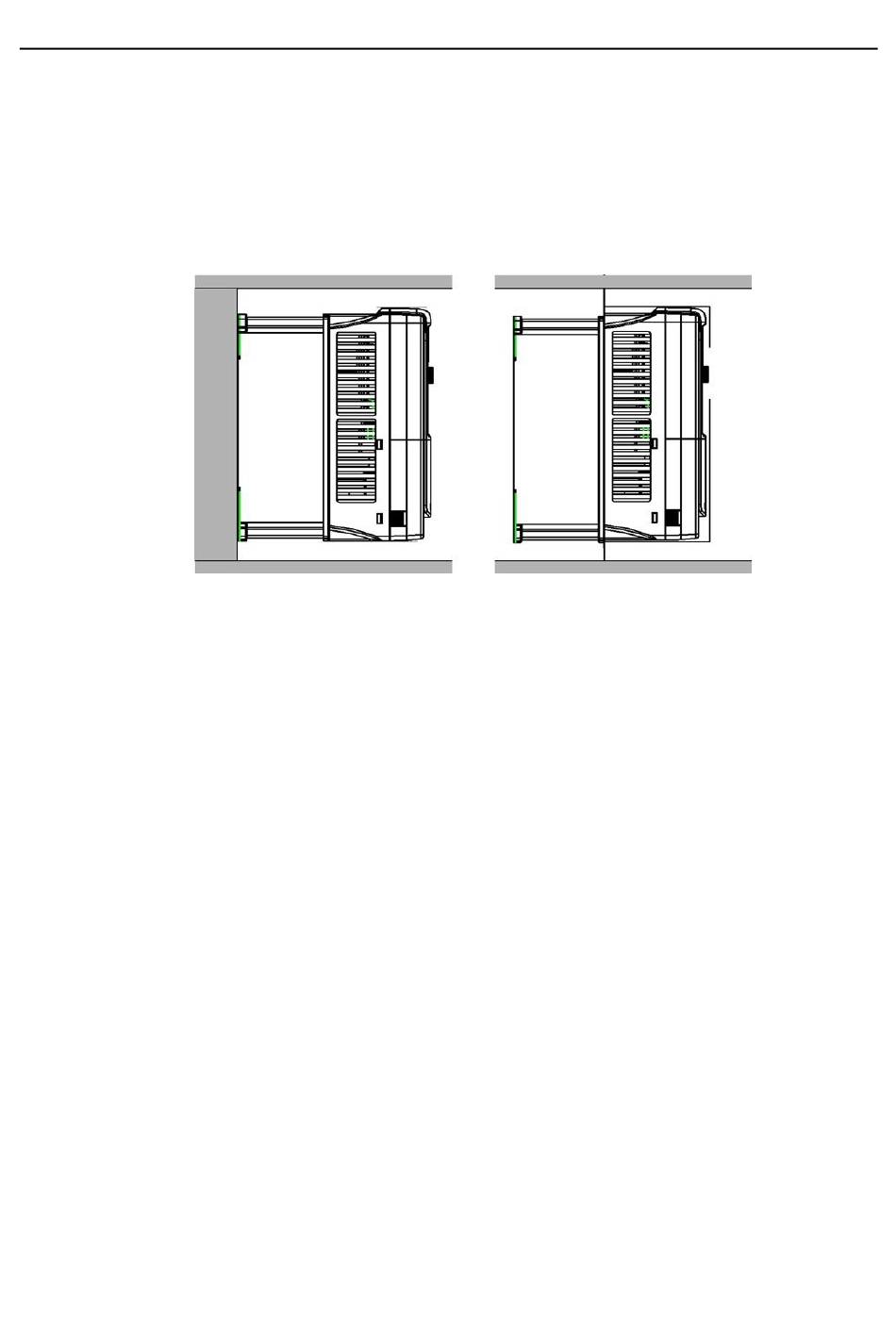

Wall mounting Flange mounting
Figure 4-2 Installation mode
(1) Mark the hole location. The location of the holes is shown in Appendix C "Dimension drawings".
(2) Fix the screws or bolts to the marked locations.
(3) Put the VFD against the wall.
(4) Tighten the screws in the wall securely.
Note:
The flange installation of the VFDs of 380V 1.5–30kW and 500V 4–18.5kW need flange board, while
the flange installation of the VFDs of 380V 37–200kW, the flange installation of the VFDs of 500V
22–75kW and 660V 22–220kW does not need.
The VFDs of 380V 220–315kW and 660V 250–350kW need optional bases, there is an input AC
reactor (or DC reactor) and output AC reactor on the base.
