Goodrive300 Series VFD
Appendix D Peripherial options and parts
D.1 What this chapter contains
This chapter describes how to select the options and parts of Goodrive300 series.
D.2 Peripherial wiring

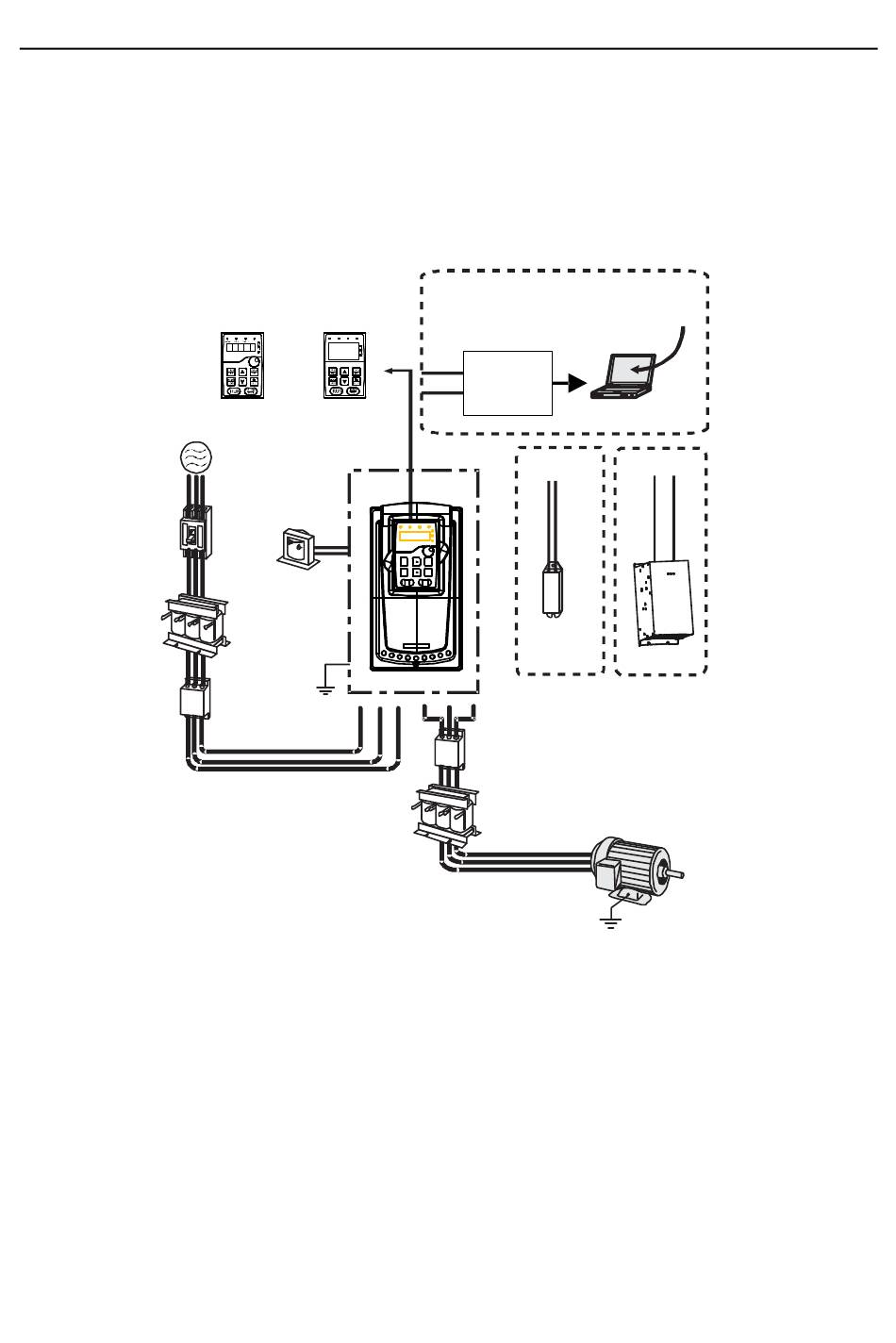

Below is the peripherial wiring of Goodrive300 series VFDs.
Note:
1. The VFD of 380V (≤30kW) are embedded with braking unit.
2. The VFDs of 380V (≥37kW) and of 660V have P1 terminal and are connected with external DC
reators.
3. The VFD of 500V (≤18.5kW) are embedded with braking unit.
4. The VFDs of 500V (≥22kW) have P1 terminal and are connected with external DC reators.
5. The VFDs of 660V have P1 terminal and are connected with external DC reators.
6. The braking units apply standard braking units. Refer to the instruction of DBU for detailed
information.
LCD
LED
Standard Optional
Power supply
Breaker
P1
+
DC reactor
Input reactor
Earth
Input filter
RS485
485 +
to
RS232
485 -
receiver
PB +
Brake
resistor
Output filter
Output reactor
261
Peripherial options and parts
Upper PC
PC
-
+
Brake
unit
motor
Earth
