5A-98 Automatic Transmission:
26. Forward Clutch

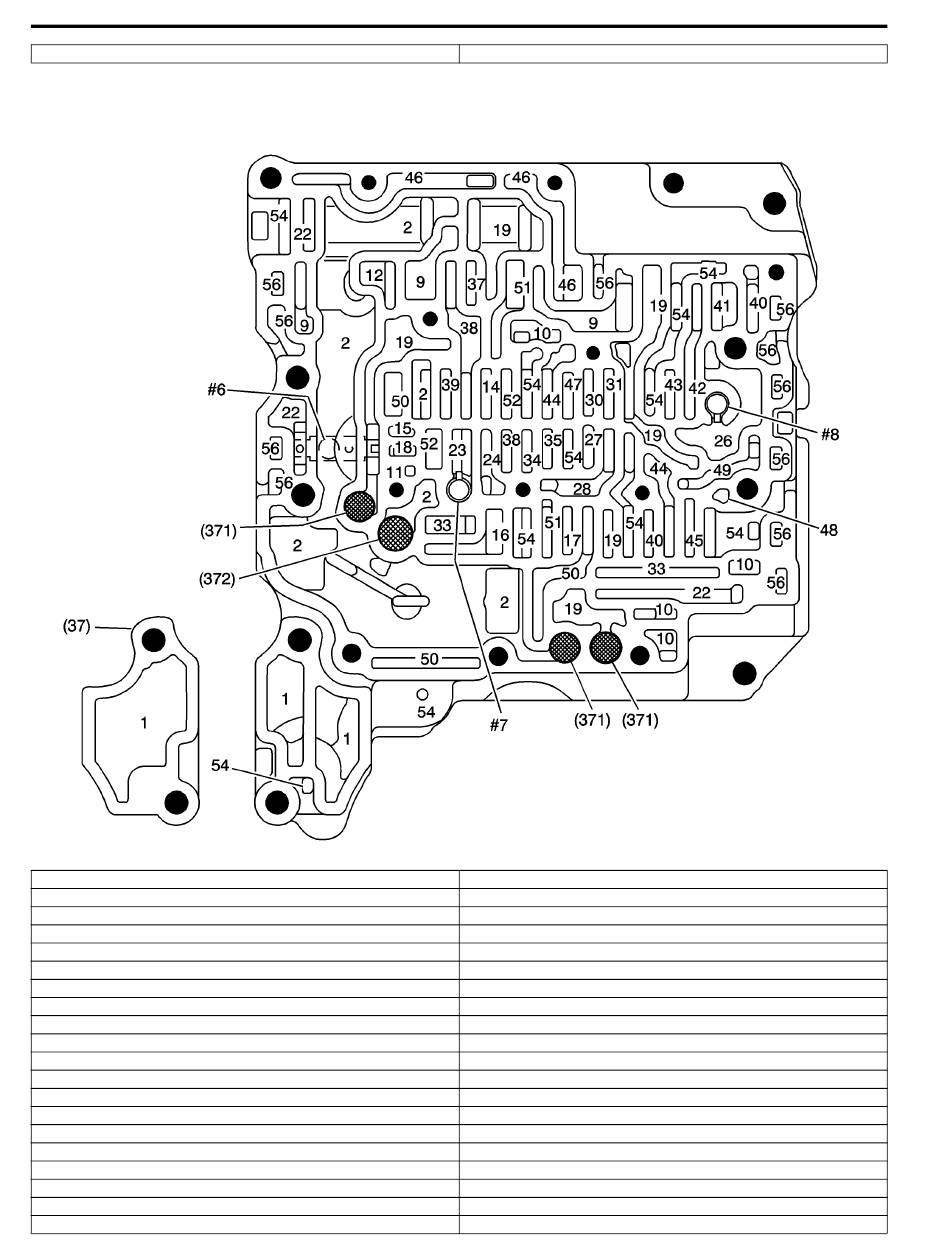

Middle Control Valve Body Assembly and Control Valve Body Fluid Passage Cover Fluid Passages (Front
#6. Accumulator Check Valve Assembly
#7. Accumulator Check Valve Assembly
#8. Accumulator Check Valve Assembly
37. Control Valve Body Fluid Passage Cover
371. Fluid Strainer
372. Fluid Strainer
1. Suction
2. Line
9. Solenoid Modulator
10. Throttle Signal - SLT
11. Shift Control - SLS
12. Lock Up Control - SLU
14. S1 Signal
15. S2 Signal
16. S3 Signal
17. S4 Signal
18. S5 Signal
19. Drive
22. Reverse
23. Reverse Clutch
Control Valve Body Assembly Side)
28. Direct Clutch Feed 2
30. B2 Control 1
31. B2 Control 2
33. B1 Control 1
34. B1 Control 2
35. B1 Control 3
38. B5 Control 2
39. 1-2 Reverse - B5 Clutch
40. 4-5 Clutch
41. B4 Control
42. B4 Release
43. Servo Release
44. Servo Feed
45. Servo Apply
46. 3rd Gear Band Apply
47. PN12345
48. PRN15
49. 234NCON
50. 345 Enable
51. 45 Enable
