Electrical Wiring - Danfoss VLT AQUA Drive FC 202 Programming Manual

Introduction
1 1

1.9 Electrical Wiring

1.9.1 Electrical Wiring - Control Cables
3-phase
power
input
DC bus
+10 V DC
0-10 V DC
0/4-20 mA
0-10 V DC
0/4-20 mA

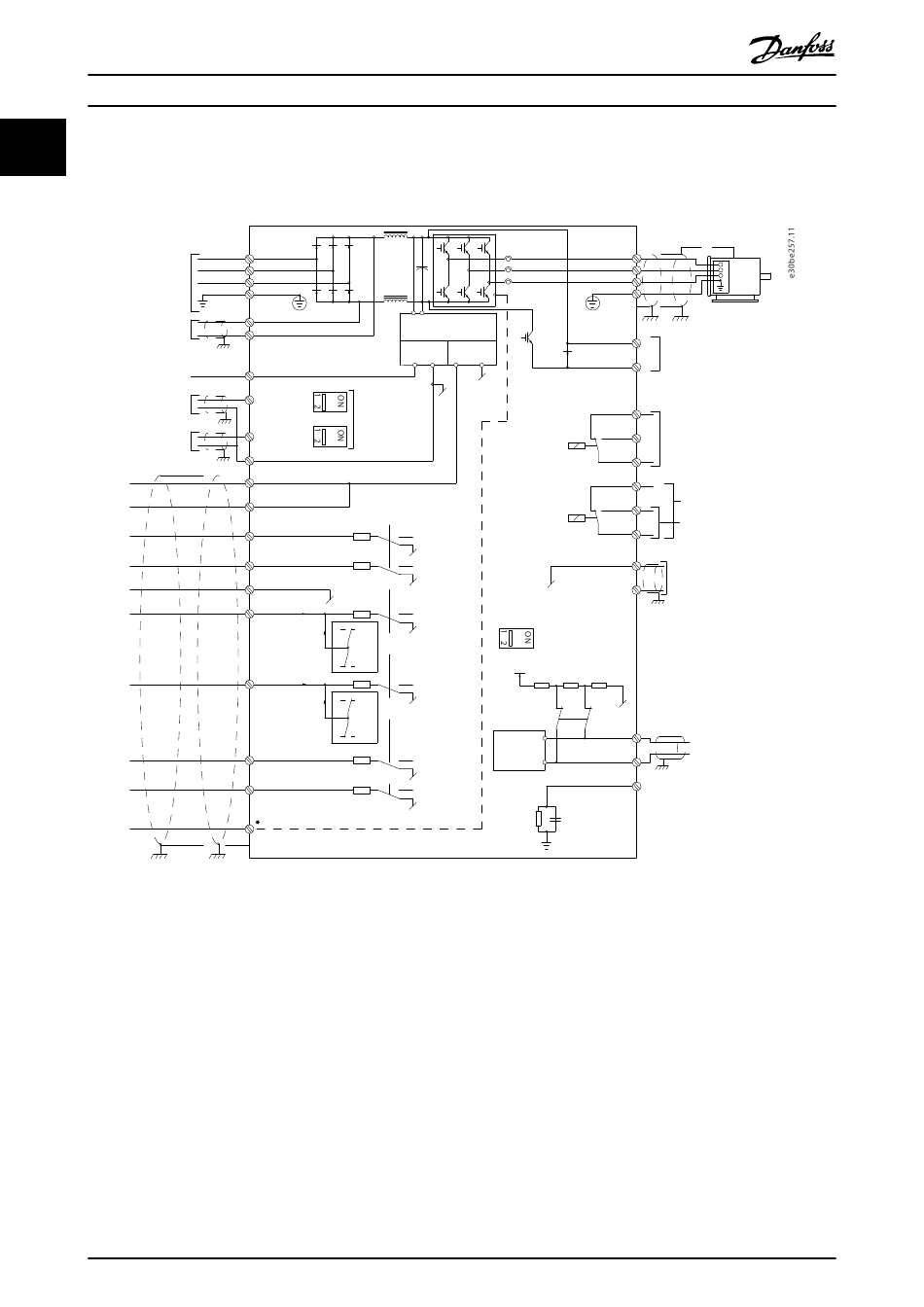

Illustration 1.2 Basic Wiring Schematic Drawing
A = Analog, D = Digital
Terminal 37 is used for Safe Torque Off. For Safe Torque Off installation instructions, refer to the VLT
Safe Torque Off Operating Instructions.
* Terminal 37 is not included in FC 202 (except enclosure size A1). Relay 2 and terminal 29 have no function in VLT
Drive FC 202.
Long control cables and analog signals may in rare cases,
and depending on installation, result in 50/60 Hz ground
loops due to noise from mains supply cables.
If this occurs, it may be necessary to break the shield or
insert a 100 nF capacitor between shield and enclosure.
10
®
VLT AQUA Drive FC 202
91 (L1)
92 (L2)
93 (L3)
95
PE
Switch mode
88 (-)
power supply
89 (+)
15 mA
50 (+10 V OUT)
+ -
S201
53 (A IN)
ON=0-20 mA
S202
OFF=0-10 V
54 (A IN)
55 (COM A IN)
12 (+24 V OUT)
13 (+24 V OUT)
P 5-00
24 V (NPN)
18 (D IN)
0 V (PNP)
24 V (NPN)
19 (D IN)
0 V (PNP)
20 (COM D IN)
24 V (NPN)
27 (D IN/OUT)
0 V (PNP)
24V
0V
24 V (NPN)
29
(D IN/OUT)
0 V (PNP)
24V
0V
24 V (NPN)
32 (D IN)
0 V (PNP)
24 V (NPN)
33 (D IN)
0 V (PNP)
*
37 (D IN)
Danfoss A/S © 05/2018 All rights reserved.
(U) 96
(V) 97
(W) 98
(PE) 99
24 V DC
(R+) 82
200 mA
+ -
(R-) 81
relay1
relay2
(COM A OUT) 39
(A OUT) 42
S801
ON=Terminated
OFF=Open
5V
0 V
S801
RS485
(P RS485) 68
Interface
(N RS485) 69
(COM RS485) 61
Connect the digital and analog inputs and outputs
separately to the common inputs (terminals 20, 55, and 39)
of the frequency converter to avoid ground currents from
both groups to affect other groups. For example, switching
on the digital input may disturb the analog input signal.
Motor
Brake
resistor
03
240 V AC, 2 A
02
01
06
240 V AC, 2 A
05
400 V AC, 2 A
04
Analog output
0/4-20 mA
RS485
(PNP) = Source
(NPN) = Sink
®
Frequency Converters -
®
AQUA
MG20OB02
