Danfoss VLT AQUA Drive FC 202 Programming Manual page 25

How to Program
Display line
Status messages showing icons and numeric value.
Indicator lights
•
Green LED/On: Indicates if control section is on.
•
Yellow LED/Wrn: Indicates a warning.
•
Flashing red LED/Alarm: Indicates an alarm.
LCP keys
[Menu]
Select 1 of the following modes:
•
Status.
•
Quick set-up.
•
Main menu.
1
Status
2
Menu
OK
On
3
Warn.
Alarm
Hand
4
Off
On

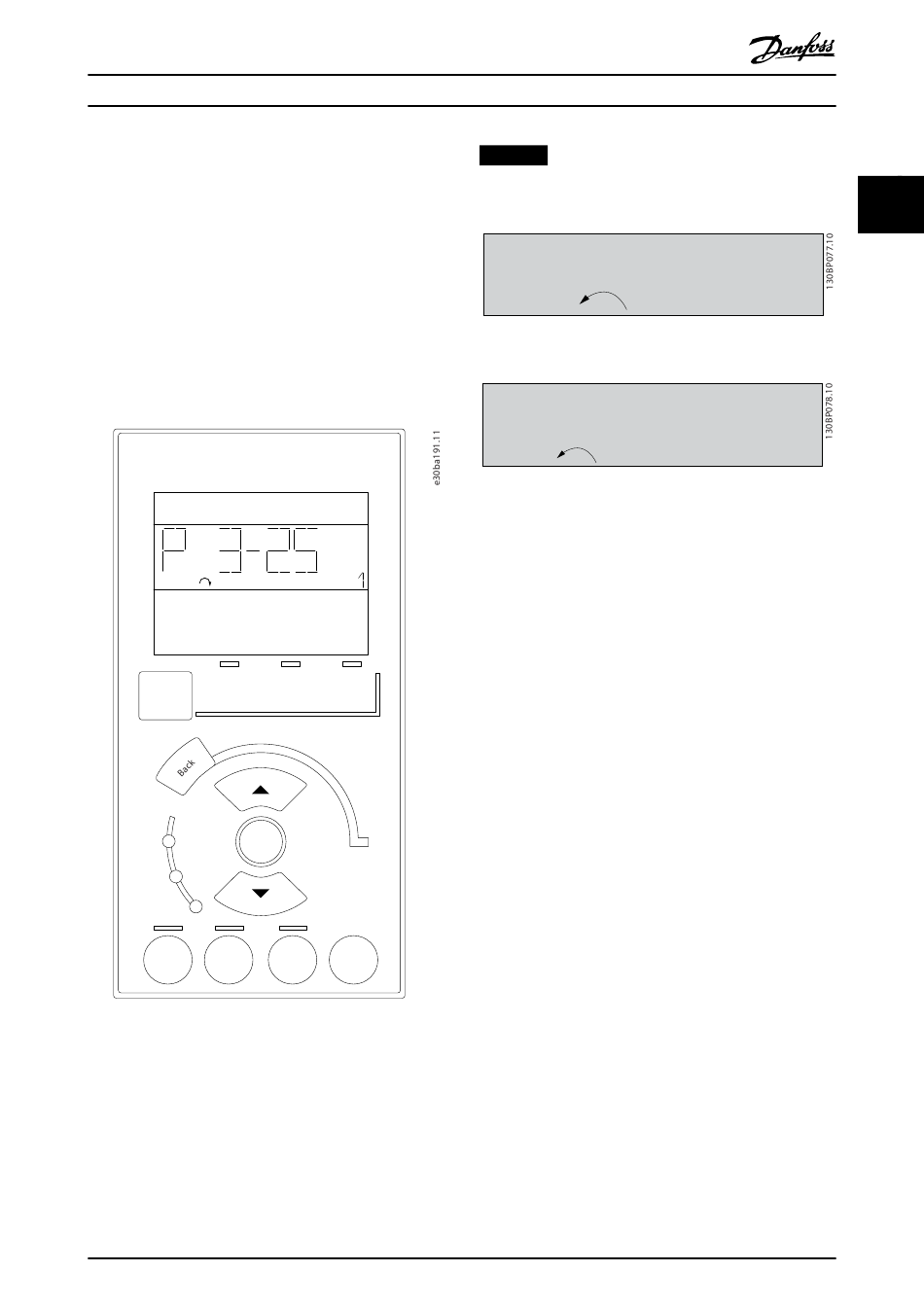

Illustration 2.22 LCP Keys
Status mode
Status mode shows the status of the frequency converter
or the motor.
If an alarm occurs, the NLCP automatically switches to
status mode.
Several alarms can be shown.
MG20OB02
Programming Guide
Setup
Quick Main
Setup Menu
Auto
Reset
On
Danfoss A/S © 05/2018 All rights reserved.
NOTICE
Parameter copy is not possible with LCP 101 numerical
local control panel.
22.8
Illustration 2.23 Status Mode
A 17
Illustration 2.24 Alarm
Main Menu/Quick Set-up
Used for programming all parameters or only the
parameters in the Quick Menu (see also description of the
LCP 102 in chapter 2.1 The Graphical and Numerical Local
Control Panel).
When the value flashes, press [
parameter values.
1. Press [Main Menu] to select main menu.
2. Select the parameter group [xx-__] and press
[OK].
3. Select the parameter [__-xx] and press [OK].
4. If the parameter is an array parameter, select the
array number and press [OK].
5. Select the required data value and press [OK].
Parameters with functional options show values such as
[1], [2], and so on. For a description of the different
options, see the individual parameter descriptions in
chapter 3 Parameter Description.
[Back]
Used for stepping backwards.
▲ ▼
[ ] [ ] are used for maneuvering between commands and
within parameters.
rpm
Setup 1
Setup 1
▲ ▼
] or [ ] to change
23
2 2
