Parameter Description
16-71 Relay Output [bin]
Range: Function:
0 [0 - 65535 ] View the settings of all relays.
*

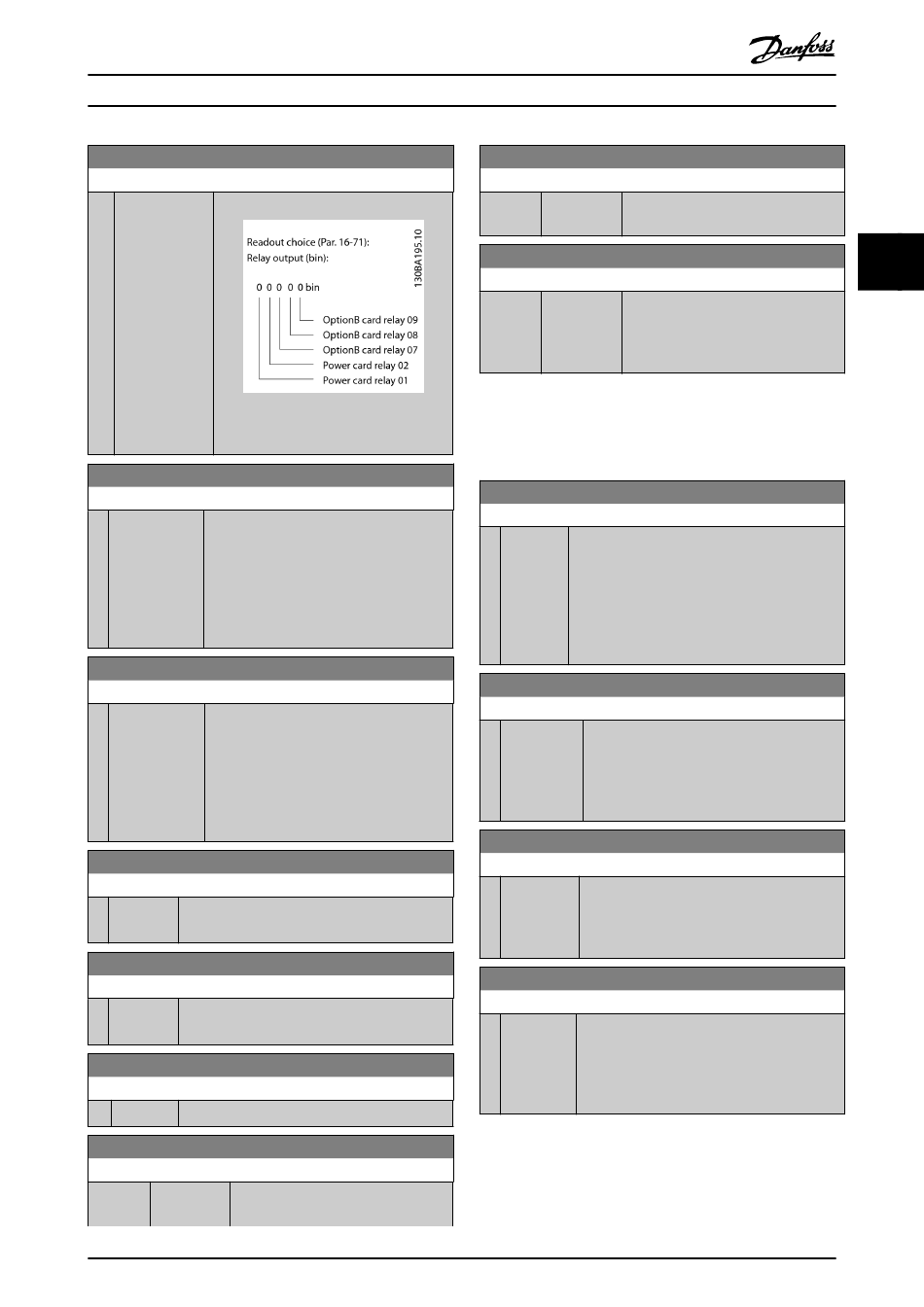

Illustration 3.59 Relay Settings
16-72 Counter A
Range: Function:
0 [-2147483648 View the present value of counter A.
*
- 2147483647 ] Counters are useful as comparator operands,
see parameter 13-10 Comparator Operand.
Reset or change the value either via digital
inputs (parameter group 5-1* Digital Inputs)
or by using an SLC action
(parameter 13-52 SL Controller Action).
16-73 Counter B
Range: Function:
0 [-2147483648 View the present value of counter B.
*
- 2147483647 ] Counters are useful as comparator operands,
parameter 13-10 Comparator Operand.
Reset or change the value either via digital
inputs (parameter group 5-1* Digital Inputs)
or by using an SLC action
(parameter 13-52 SL Controller Action).
16-75 Analog In X30/11
Range: Function:
0 [-20 - 20 ] View the actual value at input X30/11 of VLT
*
General Purpose I/O MCB 101.
16-76 Analog In X30/12
Range: Function:
0 [-20 - 20 ] View the actual value at input X30/12 of VLT
*
General Purpose I/O MCB 101.
16-77 Analog Out X30/8 [mA]
Range: Function:
0 [0 - 30 ] View the actual value at input X30/8 in mA.
*
16-78 Analog Out X45/1 [mA]
Range: Function:
0.000 [0.000 - Shows the actual output value at
N/A 30.000 N/A] terminal X45/1. The value shown
*
MG20OB02
Programming Guide
16-78 Analog Out X45/1 [mA]
Range:
16-79 Analog Out X45/3 [mA]
Range:
0.000
N/A
*
3.15.6 16-8* Fieldbus & FC Port
Parameters for reporting the bus references and control
words.
16-80 Fieldbus CTW 1
Range:
0 [0 -
*
65535 ]
16-82 Fieldbus REF 1
Range:
0 [-200 - 200 ] View the 2-byte word sent with the control
*
16-84 Comm. Option STW
Range:
0 [0 - 65535 ] Show the status word of the extended fieldbus
*
®
16-85 FC Port CTW 1
Range:
®
0 [0 -
*
65535 ]
Danfoss A/S © 05/2018 All rights reserved.
Function:
reflects the selection in
parameter 6-70 Terminal X45/1 Output.
Function:
[0.000 - Shows the actual output value at
30.000 N/A] terminal X45/3. The value shown
reflects the selection in
parameter 6-80 Terminal X45/3 Output.
Function:
View the 2-byte control word (CTW) received
from the fieldbus master. Interpretation of the
control word depends on the fieldbus option
installed and the control word profile selected in
parameter 8-10 Control Profile.
For more information, refer to the relevant
fieldbus manual.
Function:
word from the fieldbus master to set the
reference value.
For more information, refer to the relevant
fieldbus manual.
Function:
communication option.
For more information, refer to the relevant
fieldbus manual.
Function:
View the 2-byte control word (CTW) received
from the fieldbus master. Interpretation of the
control word depends on the fieldbus option
installed and the control word profile selected
in parameter 8-10 Control Profile.
