1.6 Electrical Wiring

1.6.1 Electrical Wiring - Control Cables

3 Phase
power
input
DC bus
+10Vdc
0/-10Vdc -
+10Vdc
0/4-20 mA
0/-10Vdc -
+10Vdc
0/4-20 mA

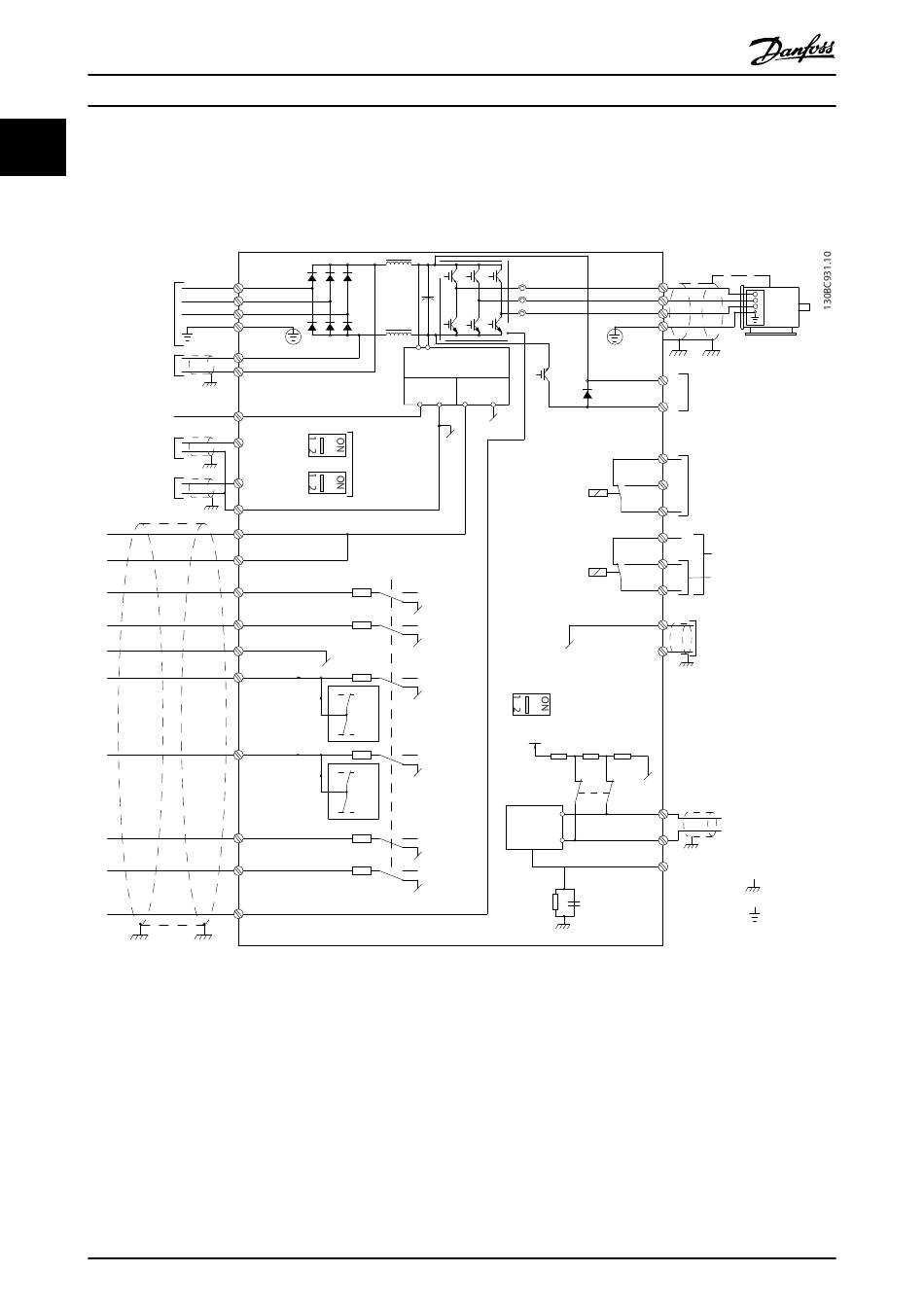

Illustration 1.2 Basic Wiring Schematic Drawing
A=Analog, D=Digital
Terminal 37 is used for Safe Torque Off. For Safe Torque Off installation instructions, refer to the Design Guide.
* Terminal 37 is not included in FC 301 (except enclosure type A1). Relay 2 and terminal 29 have no function in FC 301.
** Do not connect cable screen.
Very long control cables and analog signals may in rare cases and depending on installation result in 50/60 Hz earth loops
due to noise from mains supply cables.
If this occurs, it may be necessary to break the screen or insert a 100 nF capacitor between screen and chassis.
8
®
VLT AutomationDrive FC 301/302 Programming Guide
91 (L1)
92 (L2)
93 (L3)
95
PE
88 (-)
89 (+)
10Vdc
15mA
50 (+10 V OUT)
+
S201
53 (A IN)
ON=0/4-20mA
S202
OFF=0/-10Vdc -
+10Vdc
54 (A IN)
55 (COM A IN)
12 (+24V OUT)
13 (+24V OUT)
P 5-00
18 (D IN)
19 (D IN)
20 (COM D IN)
27
(D IN/OUT)
24V
0V
*
29 (D IN/OUT)
24V
0V
32 (D IN)
33 (D IN)
*
37 (D IN)
