Receiver
This section shows how to configure and use each of the functional blocks inside the receiver
(RX). Each GTM transceiver includes an independent receiver made up of a PCS and PMA. The
following figure shows the blocks of the GTM transceiver RX. High-speed serial data flows from
traces on the board into the PMA of the GTM transceiver RX, into the PCS, and finally into the
interconnect logic.
DFE/
RX EQ ADC
FFE
The key elements within the GTM transceiver RX are:
1. RX Analog Front End
2. RX Equalizer
3. RX CDR
4. RX Fabric Clock Output Control
5. RX Margin Analysis
6. RX Pre-Coder
7. RX Gray Encoder
8. RX Polarity Control
9. RX Pattern Checker
10. RX Buffer
UG581 (v1.0) January 4, 2019
Virtex UltraScale+ GTM Transceivers

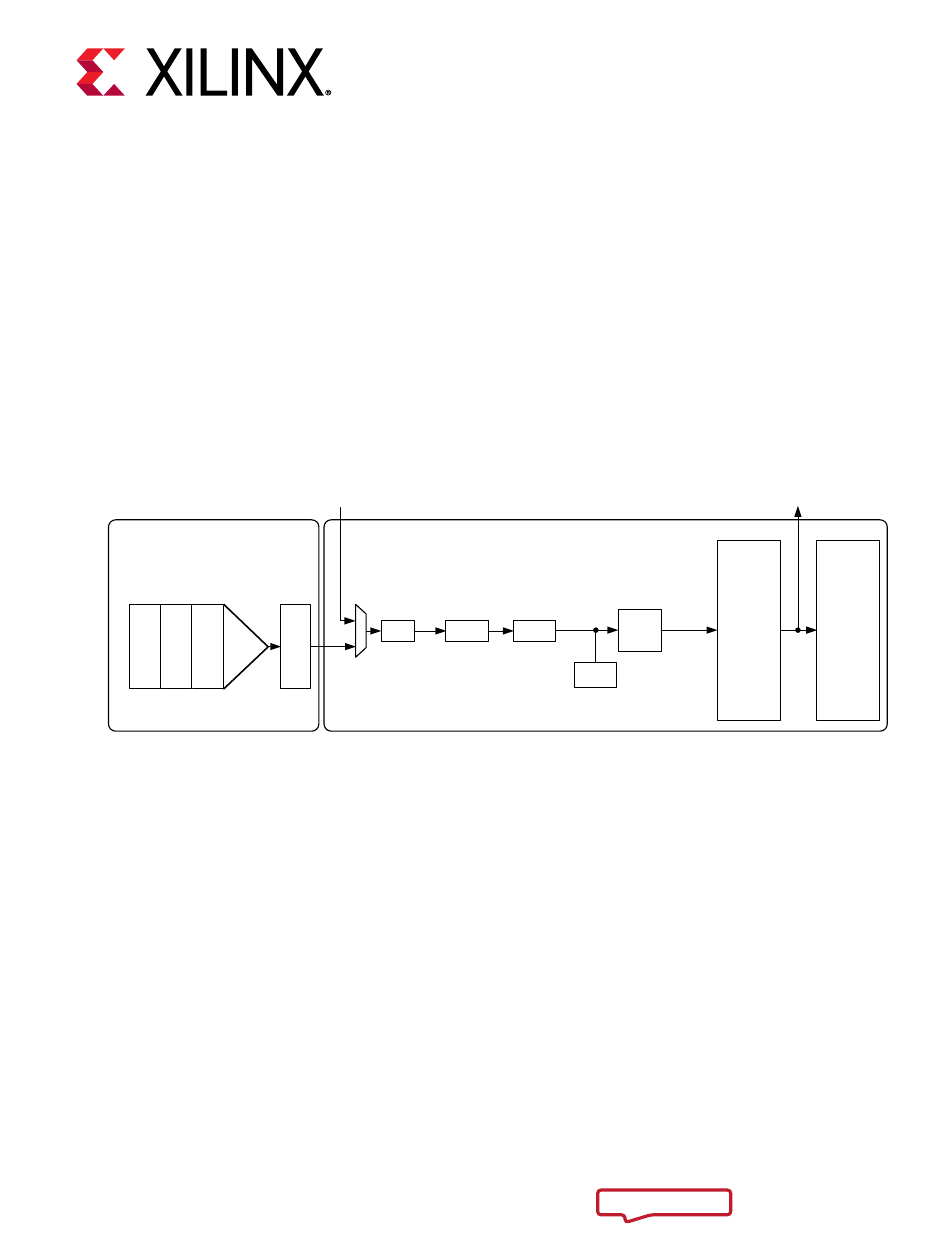

GTM Transciever RX Block Diagram
