RXUSRCLK and RXUSRCLK2 Generation
The RX interface includes two parallel clocks: RXUSRCLK and RXUSRCLK2. RXUSRCLK is the
internal clock for the PCS logic in the GTM transmitter. The required rate for RXUSRCLK
depends on the internal datapath width of the GTM_DUAL primitive and the RX line rate of the
GTM transmitter. The following
RXUSRCLK for all cases.
UG581 (v1.0) January 4, 2019
Virtex UltraScale+ GTM Transceivers

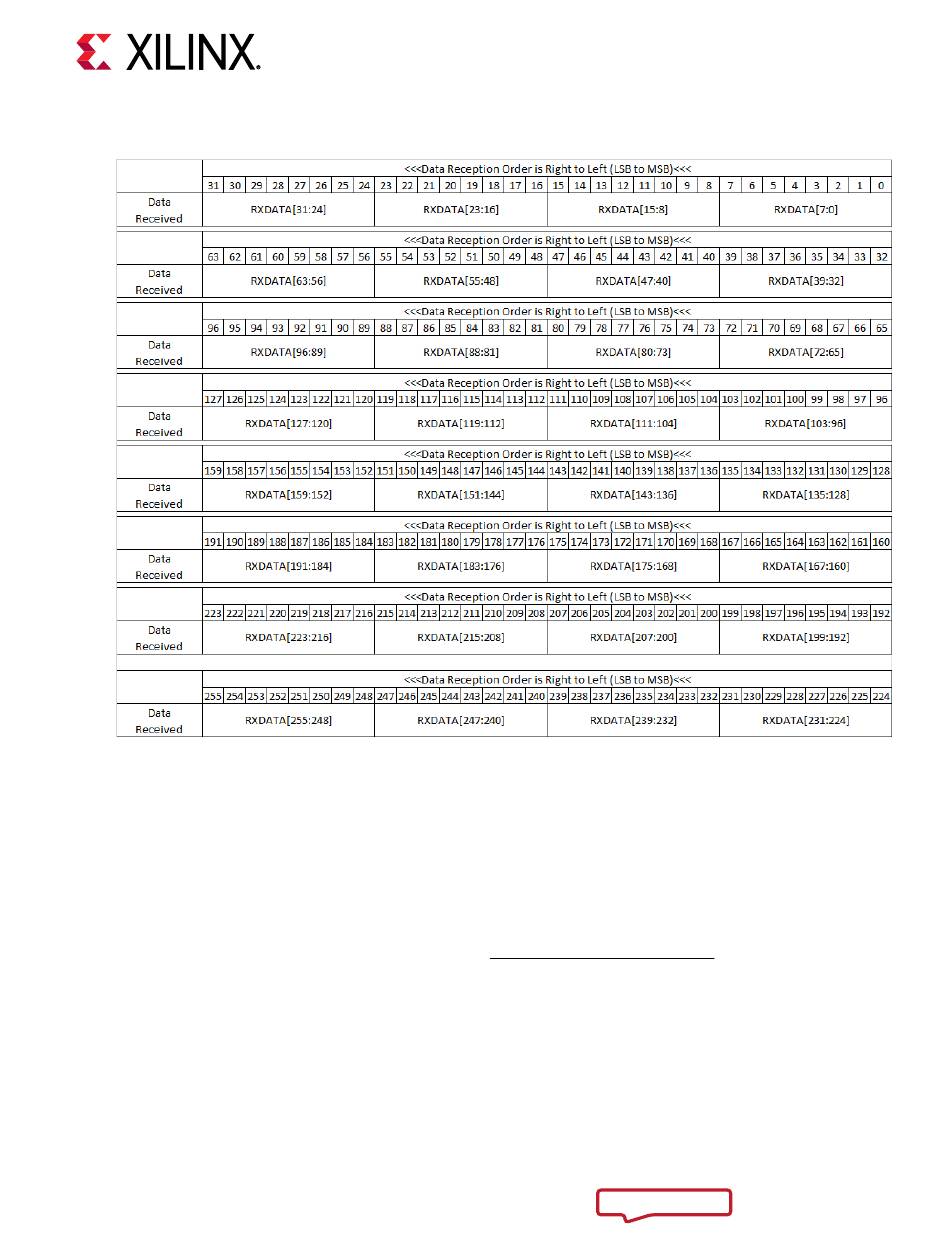

RX Data Received
Figure 45:
equation shows how to calculate the required rate for
RXUSRCLK Rate =
Line Rate
Internal Datapath Width
Send Feedback
Chapter 4: Receiver
