PANEL DESCRIPTION

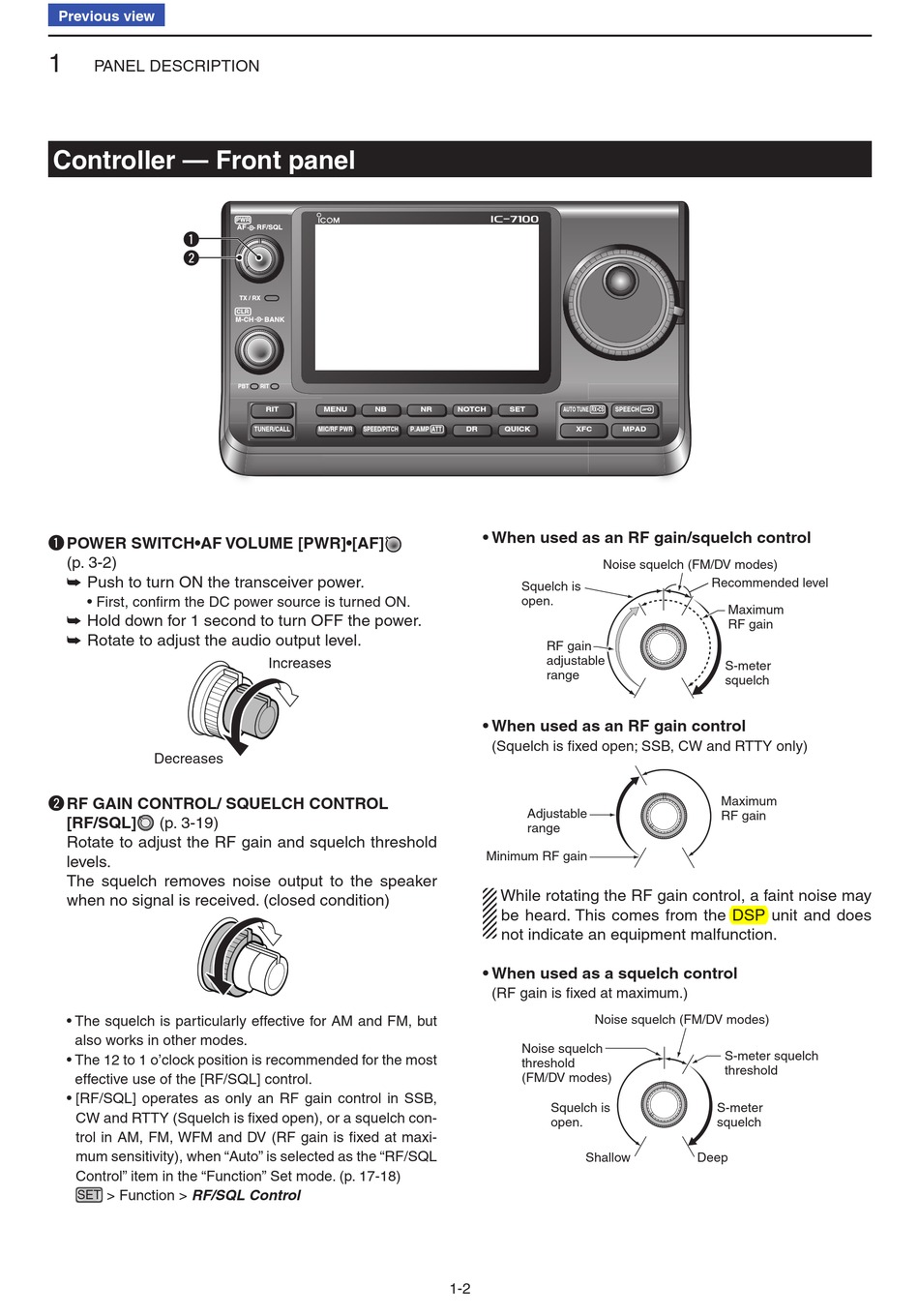

Controller — Front panel
q
w
q POWER SWITCH•AF VOLUME [PWR]•[AF]
(p. 3-2)
Push to turn ON the transceiver power.
➥
• First, confirm the DC power source is turned ON.
Hold down for 1 second to turn OFF the power.
➥
Rotate to adjust the audio output level.
➥
Decreases
w RF GAIN CONTROL/ SQUELCH CONTROL
[RF/SQL] (p. 3-19)
Rotate to adjust the RF gain and squelch threshold
levels.
The squelch removes noise output to the speaker
when no signal is received. (closed condition)
• The squelch is particularly effective for AM and FM, but
also works in other modes.
• The 12 to 1 o'clock position is recommended for the most
effective use of the [RF/SQL] control.
• [RF/SQL] operates as only an RF gain control in SSB,
CW and RTTY (Squelch is fixed open), or a squelch con-
trol in AM, FM, WFM and DV (RF gain is fixed at maxi-
mum sensitivity), when "Auto" is selected as the "RF/SQL
Control" item in the "Function" Set mode. (p. 17-18)
> Function > RF/SQL Control
SET
PWR
AF RF/SQL
TX / RX
CLR
M-CH BANK
PBT RIT
RIT MENU NB
TUNER/CALL MIC/RF PWR SPEED/PITCH
Increases
i7100
NR NOTCH SET AUTO TUNE RX
P.AMP ATT DR QUICK XFC
• When used as an RF gain/squelch control
Squelch is
open.
RF gain
adjustable
range
• When used as an RF gain control
(Squelch is fixed open; SSB, CW and RTTY only)
Adjustable
range
Minimum RF gain
While rotating the RF gain control, a faint noise may
be heard. This comes from the DSP unit and does
not indicate an equipment malfunction.
• When used as a squelch control
(RF gain is fixed at maximum.)
Noise squelch
threshold
(FM/DV modes)
Squelch is
open.
1-2
CS SPEECH
�
MPAD
Noise squelch (FM/DV modes)
Recommended level
Maximum
RF gain
S-meter
squelch
Maximum
RF gain
Noise squelch (FM/DV modes)
S-meter squelch
threshold
S-meter
squelch
Shallow Deep
