FUNCTIONS FOR RECEIVE

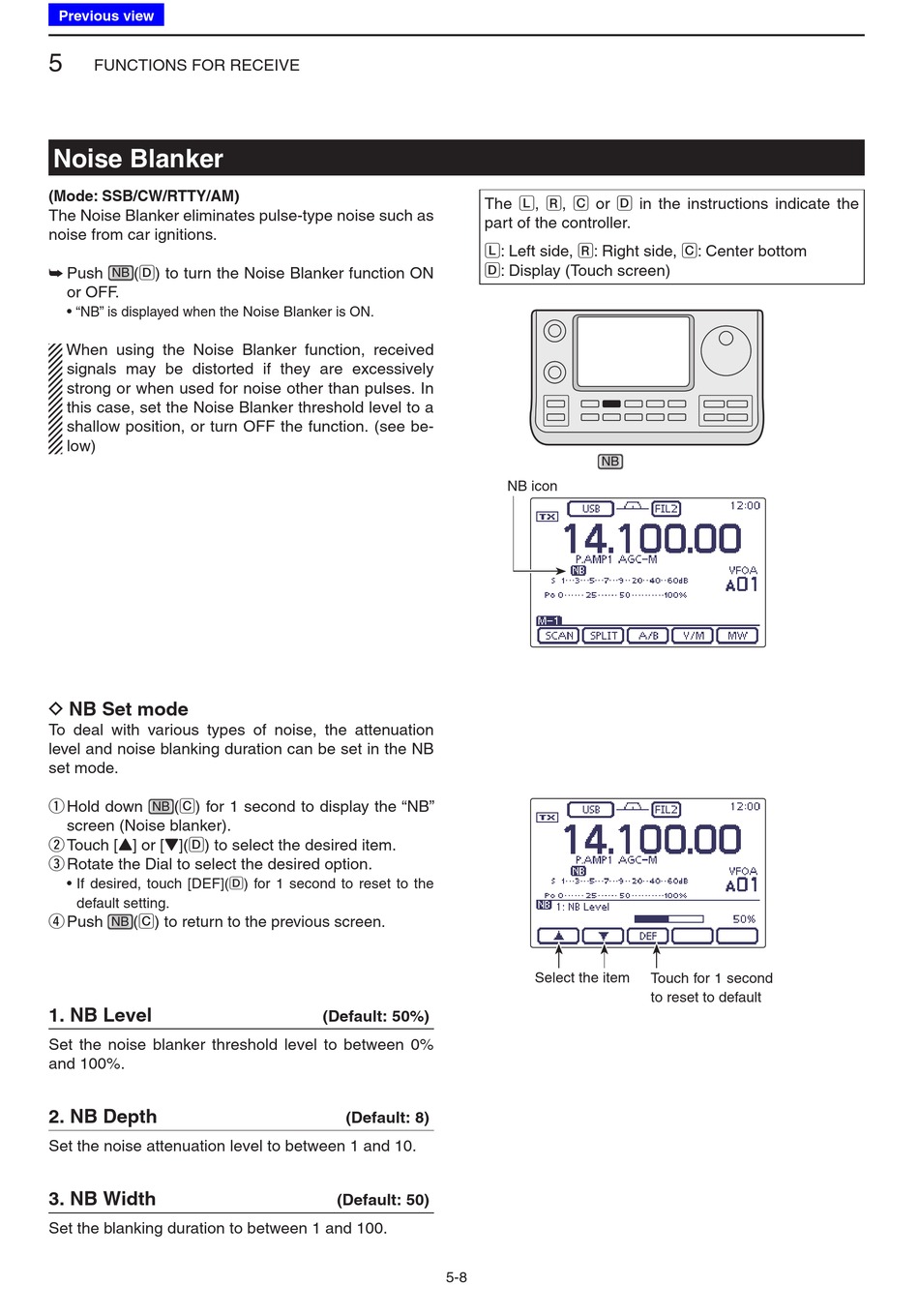

Noise Blanker

(Mode: SSB/CW/RTTY/AM)
The Noise Blanker eliminates pulse-type noise such as
noise from car ignitions.
Push (D) to turn the Noise Blanker function ON
➥ NB
or OFF.
• "NB" is displayed when the Noise Blanker is ON.
When using the Noise Blanker function, received
signals may be distorted if they are excessively
strong or when used for noise other than pulses. In
this case, set the Noise Blanker threshold level to a
shallow position, or turn OFF the function. (see be-
low)
D NB Set mode
To deal with various types of noise, the attenuation
level and noise blanking duration can be set in the NB
set mode.
Hold down (C) for 1 second to display the "NB"
q
NB
screen (Noise blanker).
Y] or [Z](D) to select the desired item.
Touch [
w
Rotate the Dial to select the desired option.
e
• If desired, touch [DEF](D) for 1 second to reset to the
default setting.
Push (C) to return to the previous screen.
r NB
1. NB Level
Set the noise blanker threshold level to between 0%
and 100%.
2. NB Depth
Set the noise attenuation level to between 1 and 10.
3. NB Width
Set the blanking duration to between 1 and 100.
The L, R, C or D in the instructions indicate the
part of the controller.
L: Left side, R: Right side, C: Center bottom
D: Display (Touch screen)
(Default: 50%)
(Default: 8)
(Default: 50)
5-8
NB
NB icon
Select the item Touch for 1 second
to reset to default
