D-STAR OPERATION <ADVANCED>

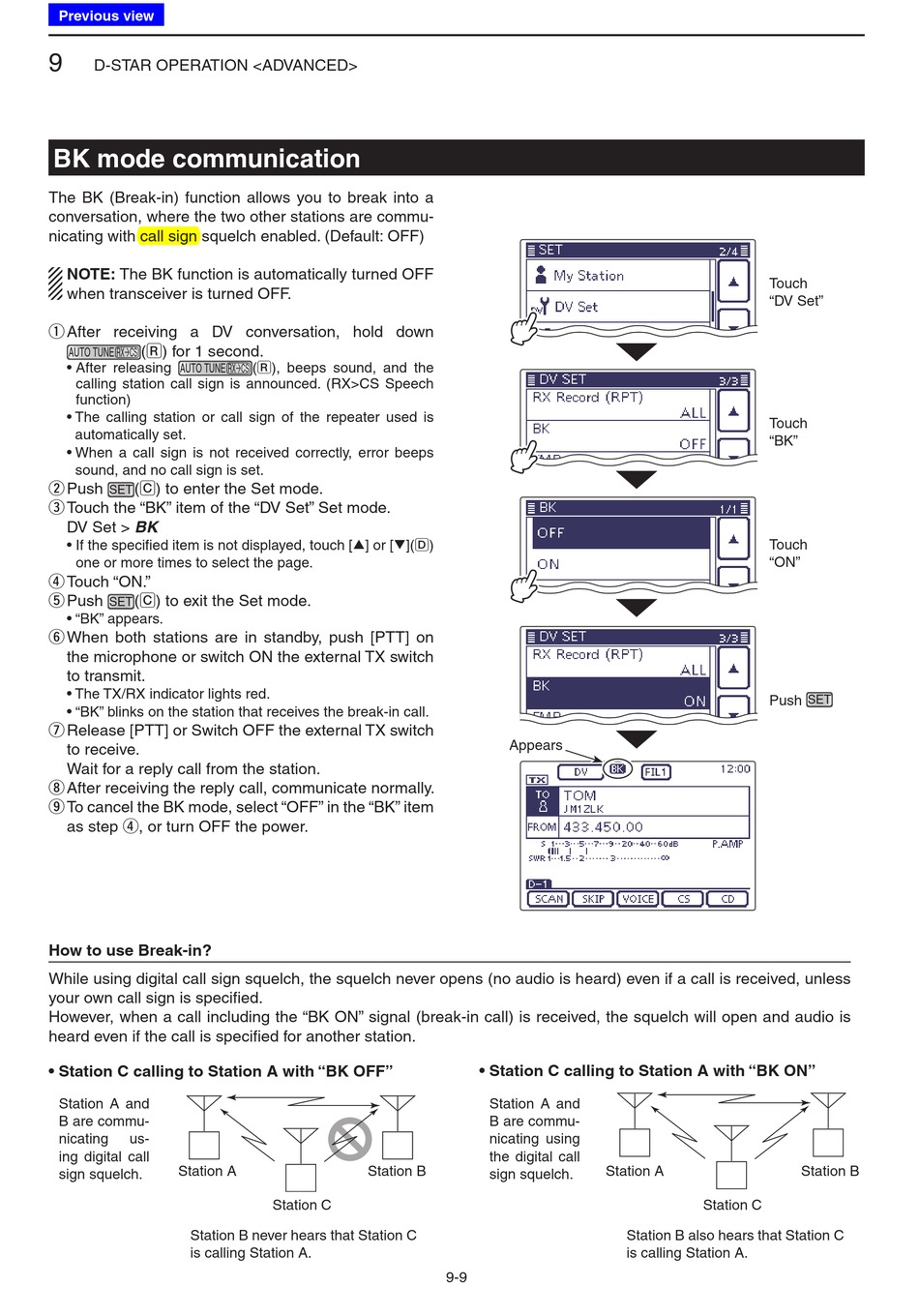

BK mode communication

The BK (Break-in) function allows you to break into a
conversation, where the two other stations are commu-
nicating with call sign squelch enabled. (Default: OFF)
NOTE: The BK function is automatically turned OFF
when transceiver is turned OFF.
After receiving a DV conversation, hold down
q
(R) for 1 second.
AUTO TUNE RX�CS
• After releasing
AUTO TUNE
calling station call sign is announced. (RX>CS Speech
function)
• The calling station or call sign of the repeater used is
automatically set.
• When a call sign is not received correctly, error beeps
sound, and no call sign is set.
Push (C) to enter the Set mode.
w
SET
Touch the "BK" item of the "DV Set" Set mode.
e
DV Set > BK
• If the specified item is not displayed, touch [∫] or [√](D)
one or more times to select the page.
Touch "ON."
r
Push (C) to exit the Set mode.
t
SET
• "BK" appears.
When both stations are in standby, push [PTT] on
y
the microphone or switch ON the external TX switch
to transmit.
• The TX/RX indicator lights red.
• "BK" blinks on the station that receives the break-in call.
Release [PTT] or Switch OFF the external TX switch
u
to receive.
Wait for a reply call from the station.
After receiving the reply call, communicate normally.
i
To cancel the BK mode, select "OFF" in the "BK" item
o
as step r, or turn OFF the power.
How to use Break-in?
While using digital call sign squelch, the squelch never opens (no audio is heard) even if a call is received, unless
your own call sign is specified.
However, when a call including the "BK ON" signal (break-in call) is received, the squelch will open and audio is
heard even if the call is specified for another station.
• Station C calling to Station A with "BK OFF"
Station A and
B are commu-
nicating us-
ing digital call
Station A
sign squelch.
Station B never hears that Station C
is calling Station A.
(R), beeps sound, and the
RX�CS
Station B
Station C
Appears
• Station C calling to Station A with "BK ON"
Station A and
B are commu-
nicating using
the digital call
Station A
sign squelch.
9-9
Touch
"DV Set"
Touch
"BK"
Touch
"ON"
Push
Station C
Station B also hears that Station C
is calling Station A.
SET
Station B
