12

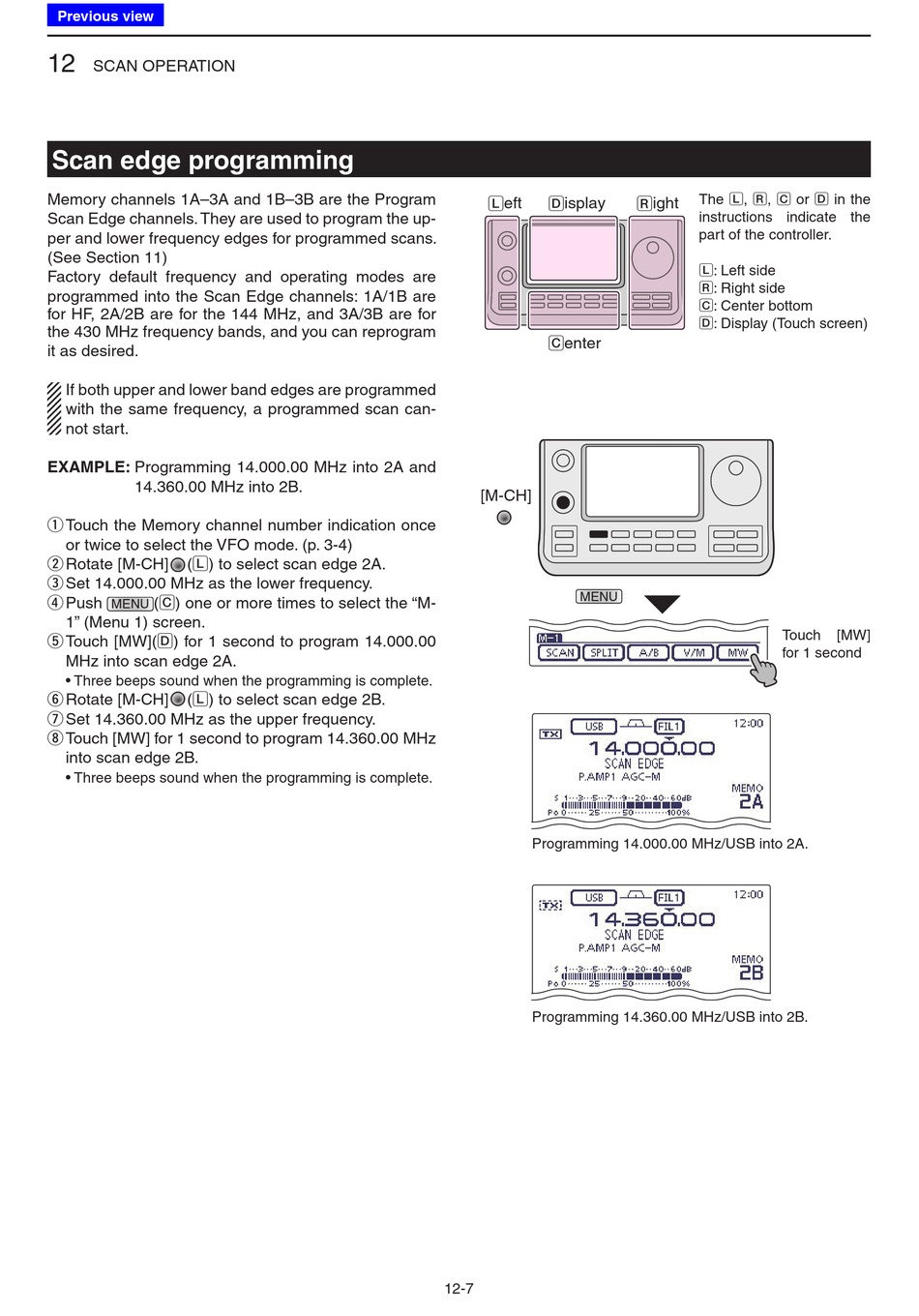

SCAN OPERATION

Scan edge programming

Memory channels 1A–3A and 1B–3B are the Program
Scan Edge channels. They are used to program the up-
per and lower frequency edges for programmed scans.
(See Section 11)
Factory default frequency and operating modes are
programmed into the Scan Edge channels: 1A/1B are
for HF, 2A/2B are for the 144 MHz, and 3A/3B are for
the 430 MHz frequency bands, and you can reprogram
it as desired.
If both upper and lower band edges are programmed
with the same frequency, a programmed scan can-
not start.
EXAMPLE: Programming 14.000.00 MHz into 2A and
14.360.00 MHz into 2B.
Touch the Memory channel number indication once
q
or twice to select the VFO mode. (p. 3-4)
Rotate [M-CH] (L) to select scan edge 2A.
w
Set 14.000.00 MHz as the lower frequency.
e
Push (C) one or more times to select the "M-
r
MENU
1" (Menu 1) screen.
Touch [MW]( D) for 1 second to program 14.000.00
t
MHz into scan edge 2A.
• Three beeps sound when the programming is complete.
Rotate [M-CH] (L) to select scan edge 2B.
y
Set 14.360.00 MHz as the upper frequency.
u
Touch [MW] for 1 second to program 14.360.00 MHz
i
into scan edge 2B.
• Three beeps sound when the programming is complete.
L eft D isplay
C enter
[M-CH]
MENU
Programming 14.000.00 MHz/USB into 2A.
Programming 14.360.00 MHz/USB into 2B.
12-7
The L, R, C or D in the
R ight
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
Touch
for 1 second
[MW]
