3
BASIC OPERATION
Setting frequency (Continued)

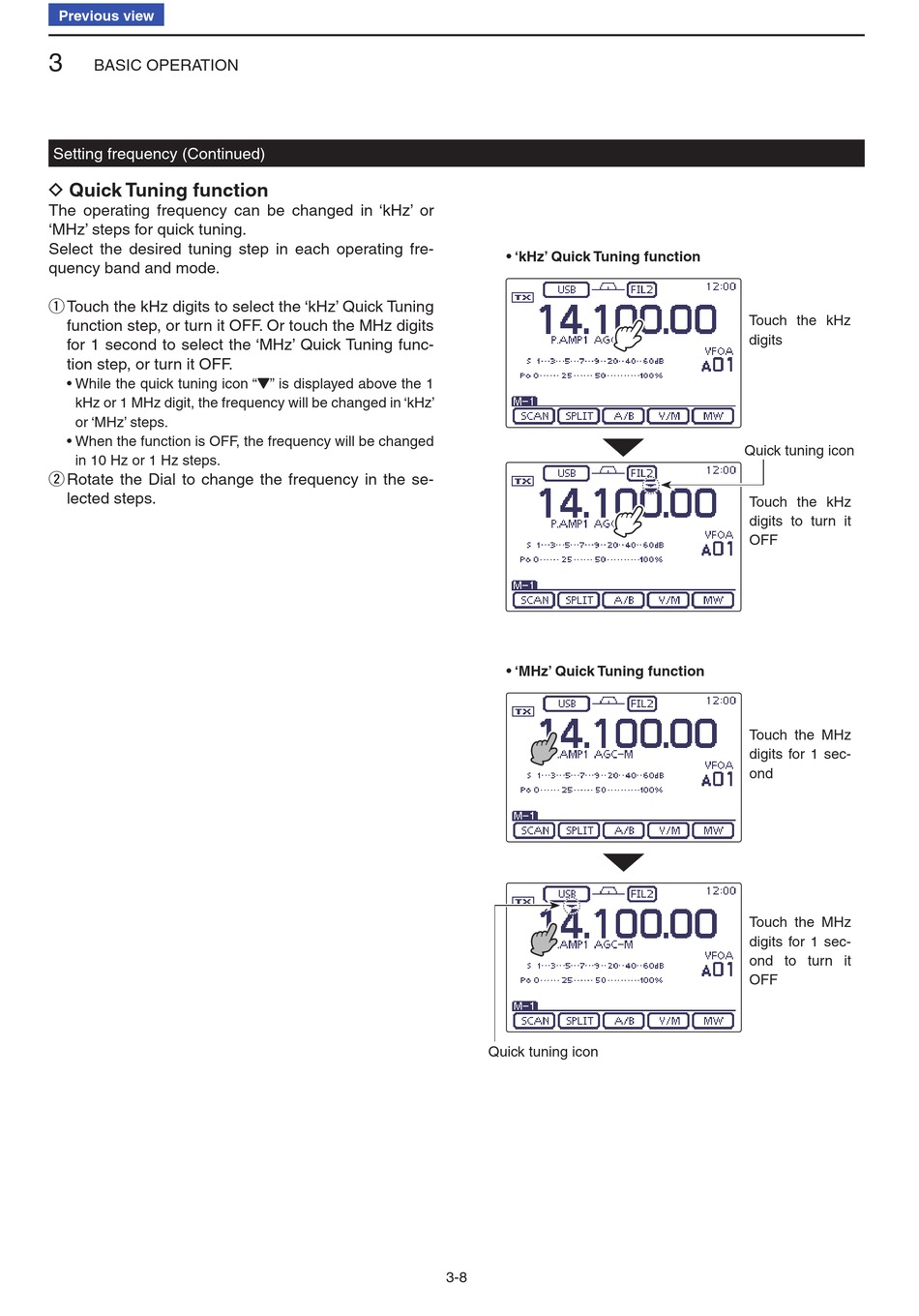

D Quick Tuning function
The operating frequency can be changed in 'kHz' or
'MHz' steps for quick tuning.
Select the desired tuning step in each operating fre-
quency band and mode.
q Touch the kHz digits to select the 'kHz' Quick Tuning
function step, or turn it OFF. Or touch the MHz digits
for 1 second to select the 'MHz' Quick Tuning func-
tion step, or turn it OFF.
• While the quick tuning icon "Z" is displayed above the 1
kHz or 1 MHz digit, the frequency will be changed in 'kHz'
or 'MHz' steps.
• When the function is OFF, the frequency will be changed
in 10 Hz or 1 Hz steps.
w Rotate the Dial to change the frequency in the se-
lected steps.
• 'kHz' Quick Tuning function
• 'MHz' Quick Tuning function
Quick tuning icon
3-8
Touch the kHz
digits
Quick tuning icon
Touch the kHz
digits to turn it
OFF
Touch the MHz
digits for 1 sec-
ond
Touch the MHz
digits for 1 sec-
ond to turn it
OFF
