1

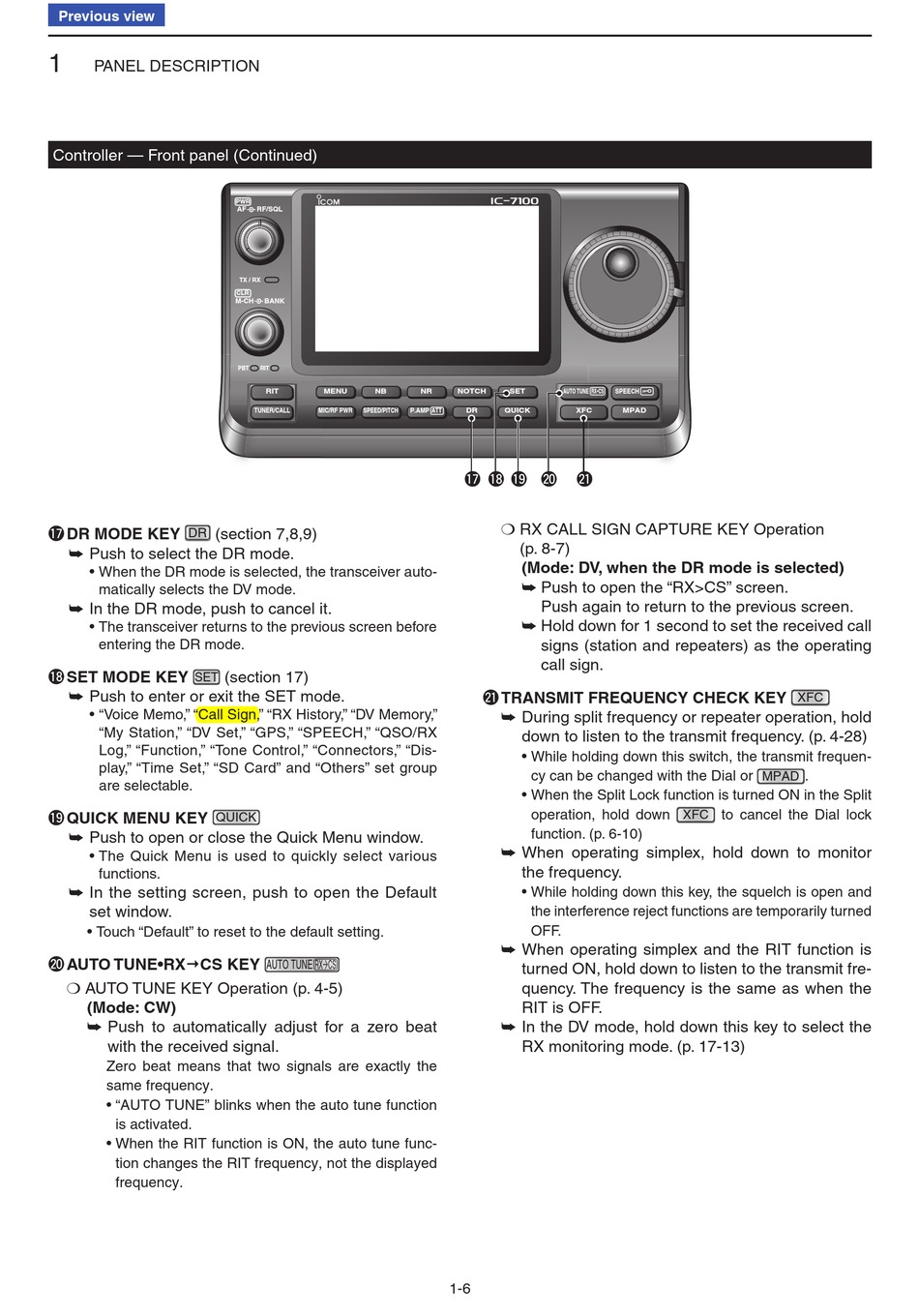

PANEL DESCRIPTION
Controller — Front panel (Continued)
!7 DR MODE KEY (section 7,8,9)
DR
➥ Push to select the DR mode.
• When the DR mode is selected, the transceiver auto-
matically selects the DV mode.
➥ In the DR mode, push to cancel it.
• The transceiver returns to the previous screen before
entering the DR mode.
!8 SET MODE KEY
SET
➥ Push to enter or exit the SET mode.
• "Voice Memo," "Call Sign," "RX History," "DV Memory,"
"My Station," "DV Set," "GPS," "SPEECH," "QSO/RX
Log," "Function," "Tone Control," "Connectors," "Dis-
play," "Time Set," "SD Card" and "Others" set group
are selectable.
!9 QUICK MENU KEY
QUICK
➥ Push to open or close the Quick Menu window.
• The Quick Menu is used to quickly select various
functions.
➥ In the setting screen, push to open the Default
set window.
• Touch "Default" to reset to the default setting.
@0 AUTO TUNE•RXCS KEY
❍ AUTO TUNE KEY Operation (p. 4-5)
(Mode: CW)
➥ Push to automatically adjust for a zero beat
with the received signal.
Zero beat means that two signals are exactly the
same frequency.
• "AUTO TUNE" blinks when the auto tune function
is activated.
• When the RIT function is ON, the auto tune func-
tion changes the RIT frequency, not the displayed
frequency.
PWR
AF RF/SQL
TX / RX
CLR
M-CH BANK
PBT RIT
RIT MENU NB
TUNER/CALL MIC/RF PWR SPEED/PITCH
(section 17)
AUTO TUNE
RX�CS
i7100
NR NOTCH SET AUTO TUNE RX
P.AMP ATT DR QUICK XFC
!7 !8 !9 @0 @1
❍ RX CALL SIGN CAPTURE KEY Operation
(p. 8-7)
(Mode: DV, when the DR mode is selected)
➥ Push to open the "RX>CS" screen.
Push again to return to the previous screen.
➥ Hold down for 1 second to set the received call
signs (station and repeaters) as the operating
call sign.
@1 TRANSMIT FREQUENCY CHECK KEY
➥ During split frequency or repeater operation, hold
down to listen to the transmit frequency. (p. 4-28)
• While holding down this switch, the transmit frequen-
cy can be changed with the Dial or
• When the Split Lock function is turned ON in the Split
operation, hold down
function. (p. 6-10)
➥ When operating simplex, hold down to monitor
the frequency.
• While holding down this key, the squelch is open and
the interference reject functions are temporarily turned
OFF.
➥ When operating simplex and the RIT function is
turned ON, hold down to listen to the transmit fre-
quency. The frequency is the same as when the
RIT is OFF.
➥ In the DV mode, hold down this key to select the
RX monitoring mode. (p. 17-13)
1-6
CS SPEECH
�
MPAD
MPAD
to cancel the Dial lock
XFC
XFC
.
