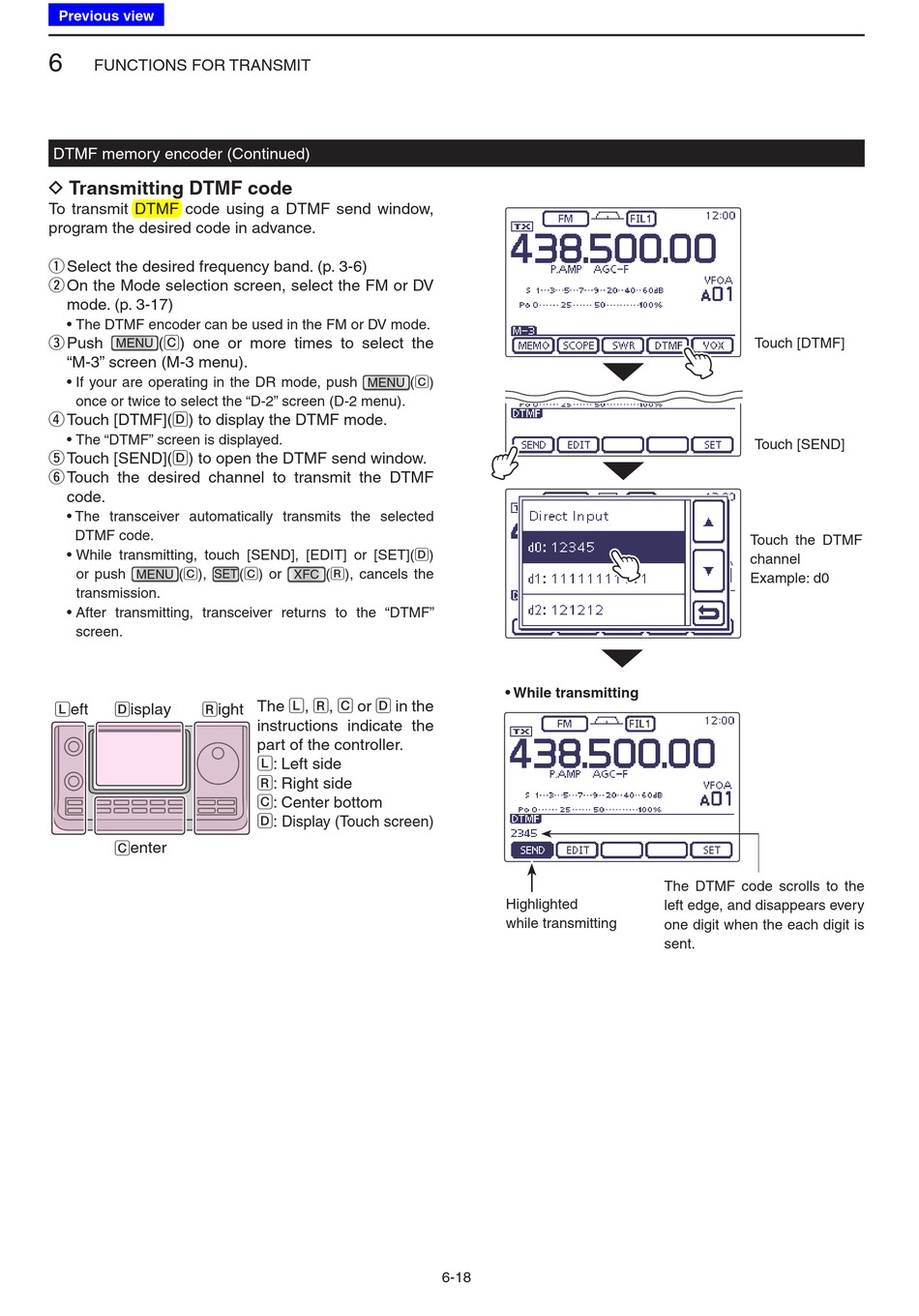

FUNCTIONS FOR TRANSMIT
DTMF memory encoder (Continued)

D Transmitting DTMF code

To transmit DTMF code using a DTMF send window,
program the desired code in advance.
Select the desired frequency band. (p. 3-6)
q
On the Mode selection screen, select the FM or DV
w
mode. (p. 3-17)
• The DTMF encoder can be used in the FM or DV mode.
Push (C) one or more times to select the
e
MENU
"M-3" screen (M-3 menu).
• If your are operating in the DR mode, push
once or twice to select the "D-2" screen (D-2 menu).
Touch [DTMF]( D) to display the DTMF mode.
r
• The "DTMF" screen is displayed.
Touch [SEND]( D) to open the DTMF send window.
t
Touch the desired channel to transmit the DTMF
y
code.
• The transceiver automatically transmits the selected
DTMF code.
• While transmitting, touch [SEND], [EDIT] or [SET](D)
or push (C),
MENU SET
transmission.
• After transmitting, transceiver returns to the "DTMF"
screen.
L eft D isplay R ight
C enter
(C)
MENU
(C) or (R), cancels the
XFC
The L, R, C or D in the
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
• While transmitting
Highlighted
while transmitting
6-18
Touch [DTMF]
Touch [SEND]
Touch the DTMF
channel
Example: d0
The DTMF code scrolls to the
left edge, and disappears every
one digit when the each digit is
sent.
