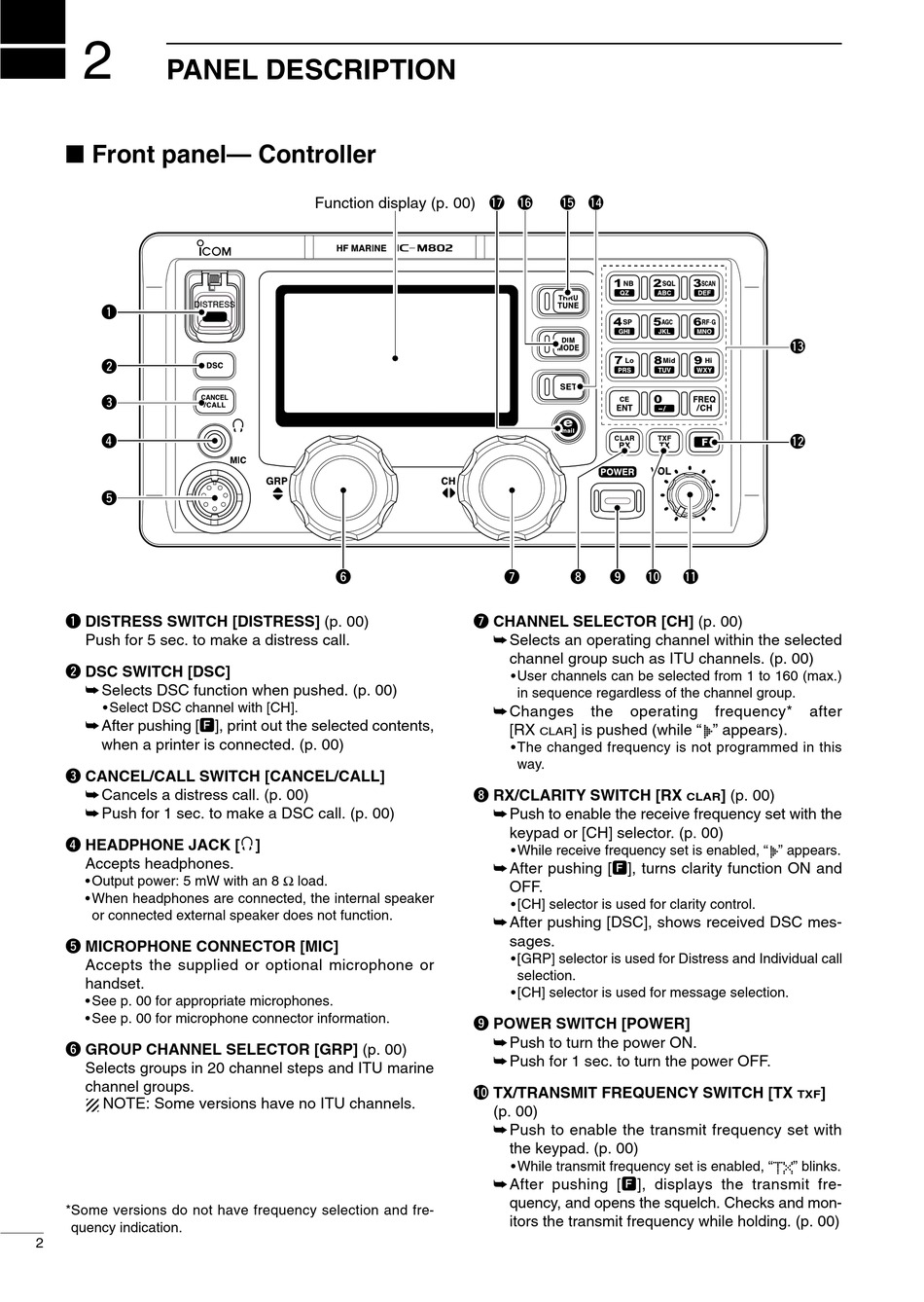

PANEL DESCRIPTION

I Front panel— Controller
DISTRESS
q
w
e
r
t
q DISTRESS SWITCH [DISTRESS] (p. 00)
Push for 5 sec. to make a distress call.
w DSC SWITCH [DSC]
➥ Selects DSC function when pushed. (p. 00)
• Select DSC channel with [CH].
➥ After pushing [F], print out the selected contents,
when a printer is connected. (p. 00)
e CANCEL/CALL SWITCH [CANCEL/CALL]
➥ Cancels a distress call. (p. 00)
➥ Push for 1 sec. to make a DSC call. (p. 00)
r HEADPHONE JACK [ ]
Accepts headphones.
• Output power: 5 mW with an 8 Ω load.
• When headphones are connected, the internal speaker
or connected external speaker does not function.
t MICROPHONE CONNECTOR [MIC]
Accepts the supplied or optional microphone or
handset.
• See p. 00 for appropriate microphones.
• See p. 00 for microphone connector information.
y GROUP CHANNEL SELECTOR [GRP] (p. 00)
Selects groups in 20 channel steps and ITU marine
channel groups.
NOTE: Some versions have no ITU channels.
*Some versions do not have frequency selection and fre-
quency indication.
2
Function display (p. 00)
y
u CHANNEL SELECTOR [CH] (p. 00)
i RX/CLARITY SWITCH [RX
o POWER SWITCH [POWER]
!0 TX/TRANSMIT FREQUENCY SWITCH [TX
!7 !6 !5 !4
u i o !0
➥ Selects an operating channel within the selected
channel group such as ITU channels. (p. 00)
• User channels can be selected from 1 to 160 (max.)
in sequence regardless of the channel group.
➥ Changes
the operating
[RX ] is pushed (while "å" appears).
CLAR
• The changed frequency is not programmed in this
way.
➥ Push to enable the receive frequency set with the
keypad or [CH] selector. (p. 00)
• While receive frequency set is enabled, "å" appears.
➥ After pushing [F], turns clarity function ON and
OFF.
• [CH] selector is used for clarity control.
➥ After pushing [DSC], shows received DSC mes-
sages.
• [GRP] selector is used for Distress and Individual call
selection.
• [CH] selector is used for message selection.
➥ Push to turn the power ON.
➥ Push for 1 sec. to turn the power OFF.
(p. 00)
➥ Push to enable the transmit frequency set with
the keypad. (p. 00)
• While transmit frequency set is enabled, "TX" blinks.
➥ After pushing [F], displays the transmit fre-
quency, and opens the squelch. Checks and mon-
itors the transmit frequency while holding. (p. 00)
!3
!2
!1
frequency* after
] (p. 00)
CLAR
]
TXF
