1

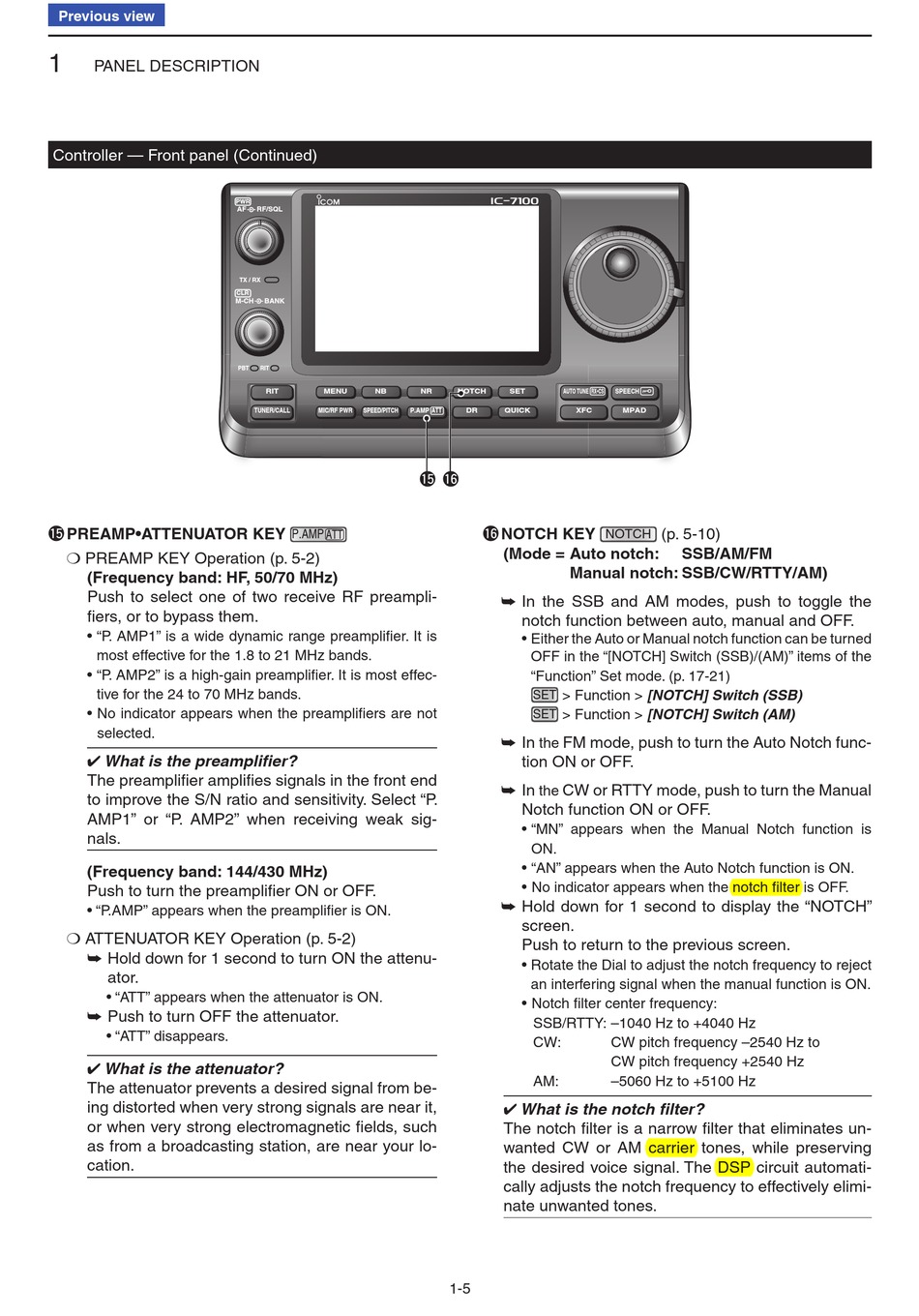

PANEL DESCRIPTION
Controller — Front panel (Continued)
!5 PREAMP•ATTENUATOR KEY
❍ PREAMP KEY Operation (p. 5-2)
(Frequency band: HF, 50/70 MHz)
Push to select one of two receive RF preampli-
fiers, or to bypass them.
• "P. AMP1" is a wide dynamic range preamplifier. It is
most effective for the 1.8 to 21 MHz bands.
• "P. AMP2" is a high-gain preamplifier. It is most effec-
tive for the 24 to 70 MHz bands.
• No indicator appears when the preamplifiers are not
selected.
✔ What is the preamplifier?
The preamplifier amplifies signals in the front end
to improve the S/N ratio and sensitivity. Select "P.
AMP1" or "P. AMP2" when receiving weak sig-
nals.
(Frequency band: 144/430 MHz)
Push to turn the preamplifier ON or OFF.
• "P.AMP" appears when the preamplifier is ON.
❍ ATTENUATOR KEY Operation (p. 5-2)
➥ Hold down for 1 second to turn ON the attenu-
ator.
• "ATT" appears when the attenuator is ON.
➥ Push to turn OFF the attenuator.
• "ATT" disappears.
✔ What is the attenuator?
The attenuator prevents a desired signal from be-
ing distorted when very strong signals are near it,
or when very strong electromagnetic fields, such
as from a broadcasting station, are near your lo-
cation.
PWR
AF RF/SQL
TX / RX
CLR
M-CH BANK
PBT RIT
RIT MENU NB
TUNER/CALL MIC/RF PWR SPEED/PITCH
P.AMP
ATT
i7100
NR NOTCH SET AUTO TUNE RX
P.AMP ATT DR QUICK XFC
!5 !6
!6 NOTCH KEY
(Mode = Auto notch:
Manual notch: SSB/CW/RTTY/AM)
➥ In the SSB and AM modes, push to toggle the
notch function between auto, manual and OFF.
• Either the Auto or Manual notch function can be turned
OFF in the "[NOTCH] Switch (SSB)/(AM)" items of the
"Function" Set mode. (p. 17-21)
SET > Function > [NOTCH] Switch (SSB)
> Function > [NOTCH] Switch (AM)
SET
➥ In FM mode, push to turn the Auto Notch func-
the
tion ON or OFF.
➥ In CW or RTTY mode, push to turn the Manual
the
Notch function ON or OFF.
• "MN" appears when the Manual Notch function is
ON.
• "AN" appears when the Auto Notch function is ON.
• No indicator appears when the notch filter is OFF.
➥ Hold down for 1 second to display the "NOTCH"
screen.
Push to return to the previous screen.
• Rotate the Dial to adjust the notch frequency to reject
an interfering signal when the manual function is ON.
• Notch filter center frequency:
SSB/RTTY: –1040 Hz to +4040 Hz
CW:
AM:
✔ What is the notch filter?
The notch filter is a narrow filter that eliminates un-
wanted CW or AM carrier tones, while preserving
the desired voice signal. The DSP circuit automati-
cally adjusts the notch frequency to effectively elimi-
nate unwanted tones.
1-5
CS SPEECH
�
MPAD
(p. 5-10)
NOTCH
SSB/AM/FM
CW pitch frequency –2540 Hz to
CW pitch frequency +2540 Hz
–5060 Hz to +5100 Hz
