17

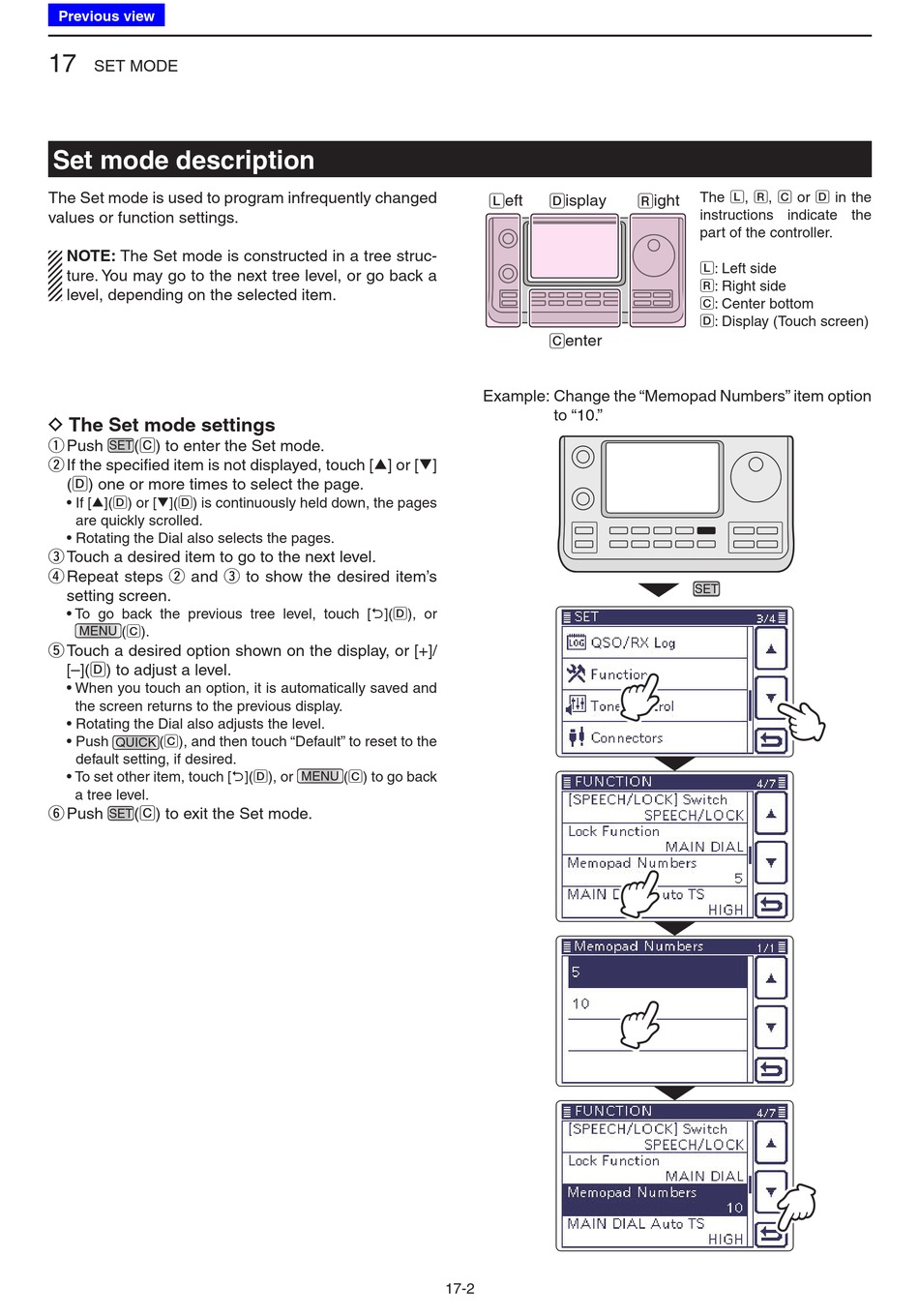

SET MODE

Set mode description

The Set mode is used to program infrequently changed
values or function settings.
NOTE: The Set mode is constructed in a tree struc-
ture. You may go to the next tree level, or go back a
level, depending on the selected item.

D The Set mode settings

Push (C) to enter the Set mode.
q
SET
If the specified item is not displayed, touch [
w
(D) one or more times to select the page.
• If [∫](D) or [√](D) is continuously held down, the pages
are quickly scrolled.
• Rotating the Dial also selects the pages.
Touch a desired item to go to the next level.
e
Repeat steps w and e to show the desired item's
r
setting screen.
• To go back the previous tree level, touch [](D), or
(C).
MENU
Touch a desired option shown on the display, or [+]/
t
[–](D) to adjust a level.
• When you touch an option, it is automatically saved and
the screen returns to the previous display.
• Rotating the Dial also adjusts the level.
• Push (C), and then touch "Default" to reset to the
QUICK
default setting, if desired.
• To set other item, touch [](D), or
a tree level.
Push (C) to exit the Set mode.
y
SET
∫] or [√]
MENU (C) to go back
17-2
L eft D isplay R ight
C enter
Example: Change the "Memopad Numbers" item option
to "10."
The L, R, C or D in the
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
SET
