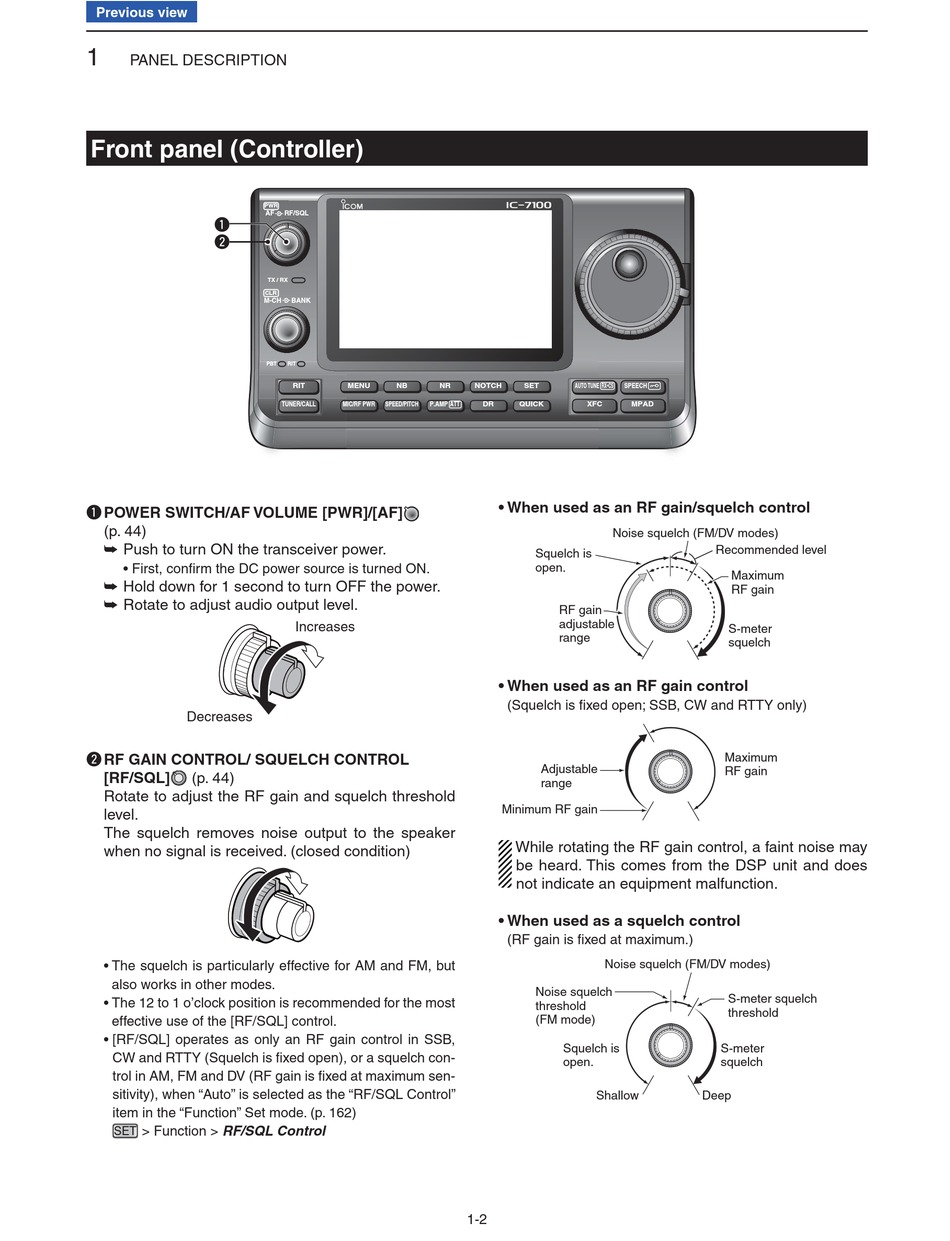

PANEL DESCRIPTION
Front panel (Controller)
PWR
AF
q
w
CLR
M-CH
PBT
q POWER SWITCH/AF VOLUME [PWR]/[AF]
(p. 44)
Push to turn ON the transceiver power.
• First, confi rm the DC power source is turned ON.
Hold down for 1 second to turn OFF the power.
Rotate to adjust audio output level.
Decreases
w RF GAIN CONTROL/ SQUELCH CONTROL
[RF/SQL]
(p. 44)
Rotate to adjust the RF gain and squelch threshold
level.
The squelch removes noise output to the speaker
when no signal is received. (closed condition)
• The squelch is particularly effective for AM and FM, but
also works in other modes.
• The 12 to 1 o'clock position is recommended for the most
effective use of the [RF/SQL] control.
• [RF/SQL] operates as only an RF gain control in SSB,
CW and RTTY (Squelch is fi xed open), or a squelch con-
trol in AM, FM and DV (RF gain is fi xed at maximum sen-
sitivity), when "Auto" is selected as the "RF/SQL Control"
item in the "Function" Set mode. (p. 162)
SET
> Function > RF/SQL Control
RF/SQL
TX / RX
BANK
RIT
RIT
MENU
NB
NR
TUNER/CALL
MIC/RF PWR
SPEED/PITCH
P.AMP ATT
Increases
i7100
NOTCH
SET
AUTO TUNE RX
CS
SPEECH
DR
QUICK
XFC
MPAD
• When used as an RF gain/squelch control
Noise squelch (FM/DV modes)
Squelch is
open.
RF gain
adjustable
range
• When used as an RF gain control
(Squelch is fi xed open; SSB, CW and RTTY only)
Adjustable
range
Minimum RF gain
While rotating the RF gain control, a faint noise may
be heard. This comes from the DSP unit and does
not indicate an equipment malfunction.
• When used as a squelch control
(RF gain is fi xed at maximum.)
Noise squelch (FM/DV modes)
Noise squelch
threshold
(FM mode)
Squelch is
open.
Shallow
1-2
Recommended level
Maximum
RF gain
S-meter
squelch
Maximum
RF gain
S-meter squelch
threshold
S-meter
squelch
Deep
