Basic Operation; Front Panel- Controller - Icom ID-880H Instruction Manual

2

BASIC OPERATION

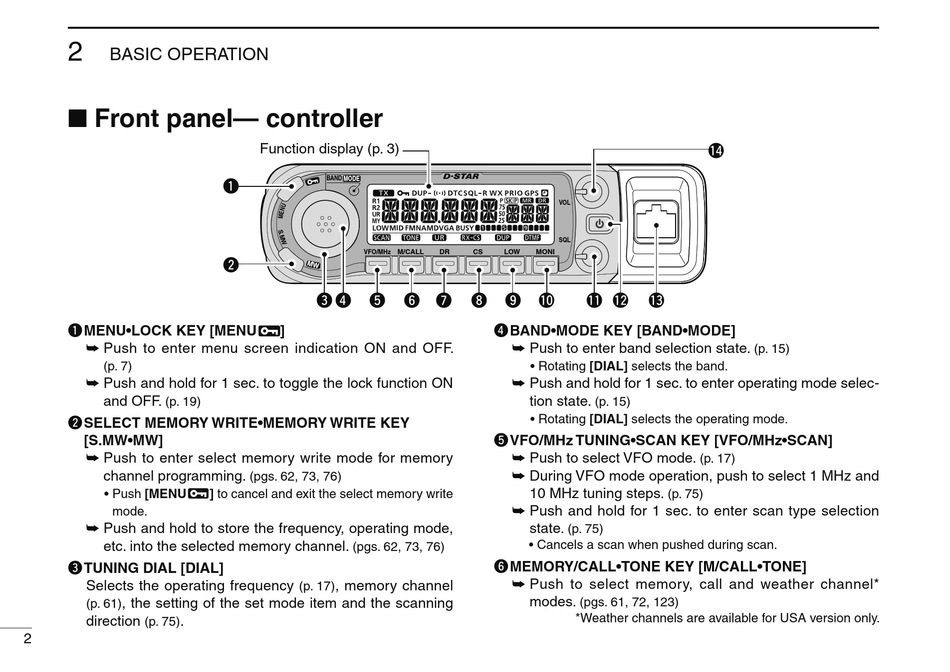

Front panel— controller
q MENU•LOCK KEY [MENU
Push to enter menu screen indication ON and OFF.
(p. 7)
Push and hold for 1 sec. to toggle the lock function ON
and OFF.
(p. 19)
w SELECT MEMORY WRITE•MEMORY WRITE KEY
[S.MW•MW]
Push to enter select memory write mode for memory
channel programming.
• Push [MENU
mode.
Push and hold to store the frequency, operating mode,
etc. into the selected memory channel.
e TUNING DIAL [DIAL]
Selects the operating frequency
, the setting of the set mode item and the scanning
(p. 61)
direction .
(p. 75)
2
Function display (p. 3)
BAND MODE
q
VFO/MHz
w
e r t
]
(pgs. 62, 73, 76)
] to cancel and exit the select memory write
(pgs. 62, 73, 76)
, memory channel
(p. 17)
VOL
SQL
M/CALL DR CS LOW MONI
y u i o !0
r BAND•MODE KEY [BAND•MODE]
Push to enter band selection state.
• Rotating [DIAL] selects the band.
Push and hold for 1 sec. to enter operating mode selec-
tion state.
• Rotating [DIAL] selects the operating mode.
t VFO/MHz TUNING•SCAN KEY [VFO/MHz•SCAN]
Push to select VFO mode.
During VFO mode operation, push to select 1 MHz and
10 MHz tuning steps.
Push and hold for 1 sec. to enter scan type selection
state.
(p. 75)
• Cancels a scan when pushed during scan.
y MEMORY/CALL•TONE KEY [M/CALL•TONE]
Push to select memory, call and weather channel*
modes.
*Weather channels are available for USA version only.
!4
!1 !2 !3
(p. 15)
(p. 15)
(p. 17)
(p. 75)
(pgs. 61, 72, 123)
