6
FUNCTIONS FOR TRANSMIT
Split frequency operation (Continued)

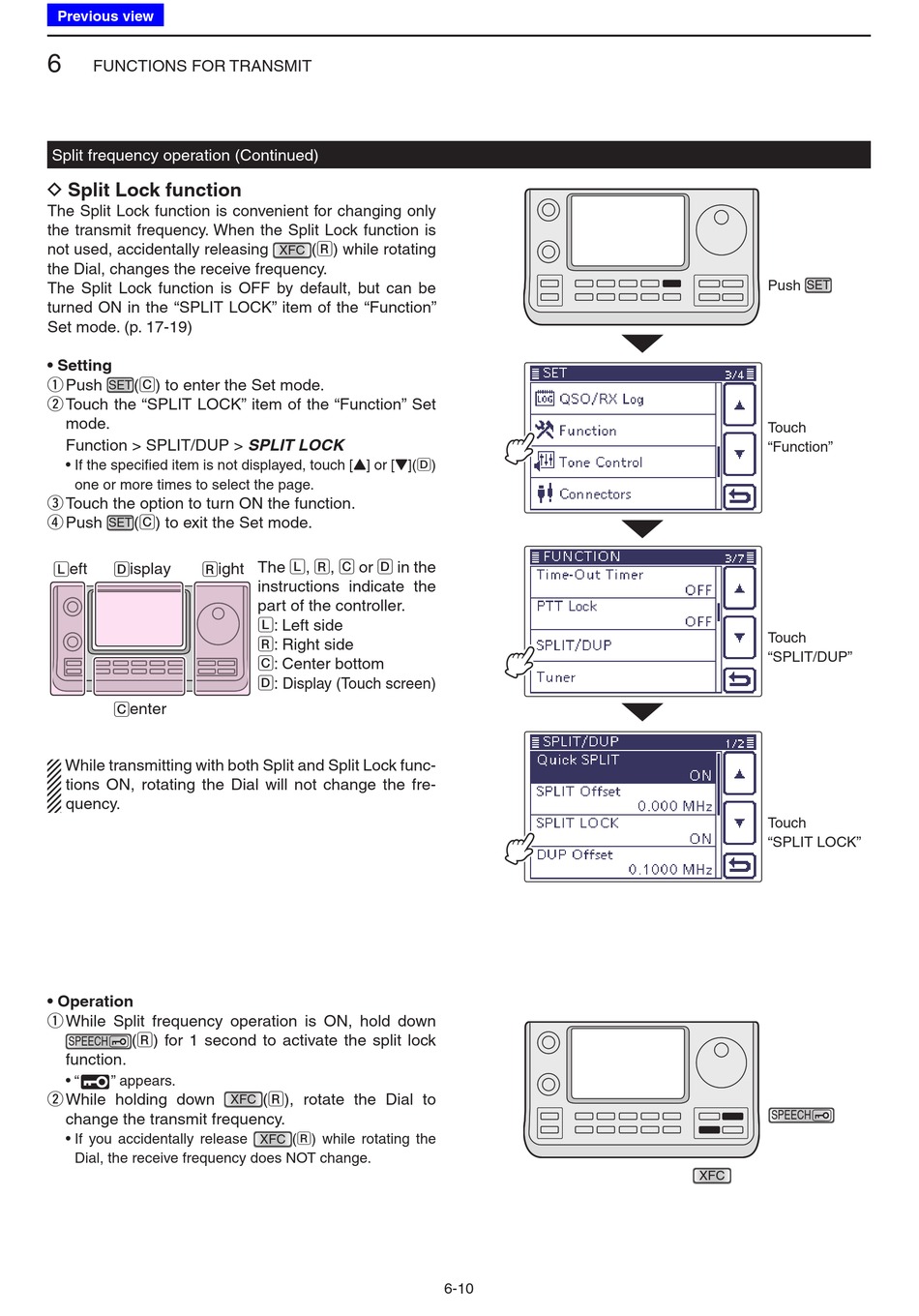

D Split Lock function

The Split Lock function is convenient for changing only
the transmit frequency. When the Split Lock function is
not used, accidentally releasing
the Dial, changes the receive frequency.
The Split Lock function is OFF by default, but can be
turned ON in the "SPLIT LOCK" item of the "Function"
Set mode. (p. 17-19)
• Setting
Push (C) to enter the Set mode.
q SET
Touch the "SPLIT LOCK" item of the "Function" Set
w
mode.
Function > SPLIT/DUP > SPLIT LOCK
• If the specified item is not displayed, touch [Y] or [Z](D)
one or more times to select the page.
Touch the option to turn ON the function.
e
Push (C) to exit the Set mode.
r SET
L eft D isplay R ight
C enter
While transmitting with both Split and Split Lock func-
tions ON, rotating the Dial will not change the fre-
quency.
• Operation
While Split frequency operation is ON, hold down
q
(R) for 1 second to activate the split lock
SPEECH
function.
• " " appears.
While holding down
w
change the transmit frequency.
• If you accidentally release
Dial, the receive frequency does NOT change.
(R) while rotating
XFC
The L, R, C or D in the
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
(R), rotate the Dial to
XFC
(R) while rotating the
XFC
6-10
Push
SET
Touch
"Function"
Touch
"SPLIT/DUP"
Touch
"SPLIT LOCK"
SPEECH
XFC
