6
FUNCTIONS FOR TRANSMIT

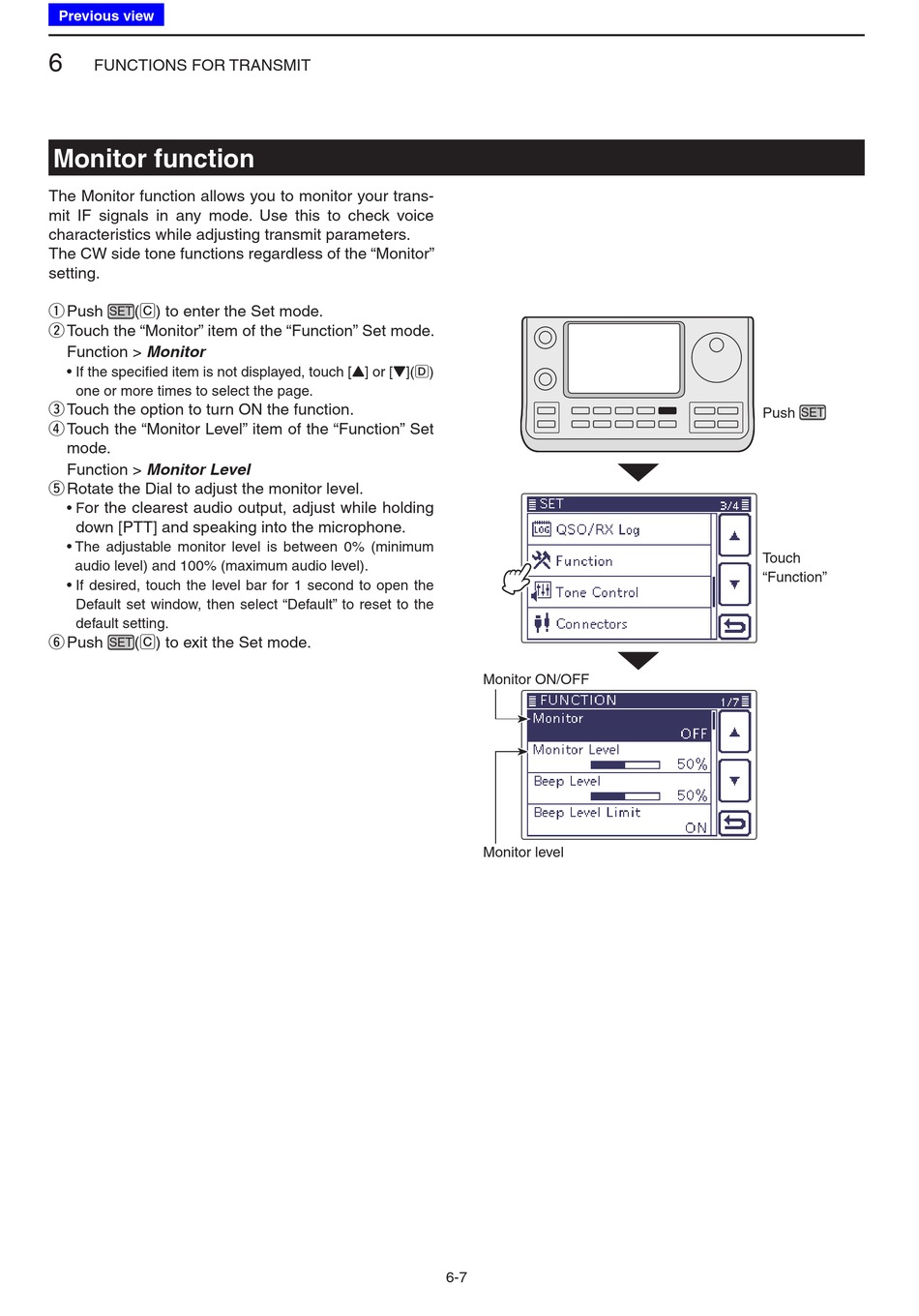

Monitor function
The Monitor function allows you to monitor your trans-
mit IF signals in any mode. Use this to check voice
characteristics while adjusting transmit parameters.
The CW side tone functions regardless of the "Monitor"
setting.
Push
(C) to enter the Set mode.
q
SET
Touch the "Monitor" item of the "Function" Set mode.
w
Function > Monitor
• If the specified item is not displayed, touch [Y] or [Z](D)
one or more times to select the page.
Touch the option to turn ON the function.
e
Touch the "Monitor Level" item of the "Function" Set
r
mode.
Function > Monitor Level
Rotate the Dial to adjust the monitor level.
t
or the clearest audio output, adjust while holding
• F
down [PTT] and speaking into the microphone.
• The adjustable monitor level is between 0% (minimum
audio level) and 100% (maximum audio level).
• If desired, touch the level bar for 1 second to open the
Default set window, then select "Default" to reset to the
default setting.
Push
(C) to exit the Set mode.
y
SET
Monitor ON/OFF
Monitor level
6-7
Push
SET
Touch
"Function"
