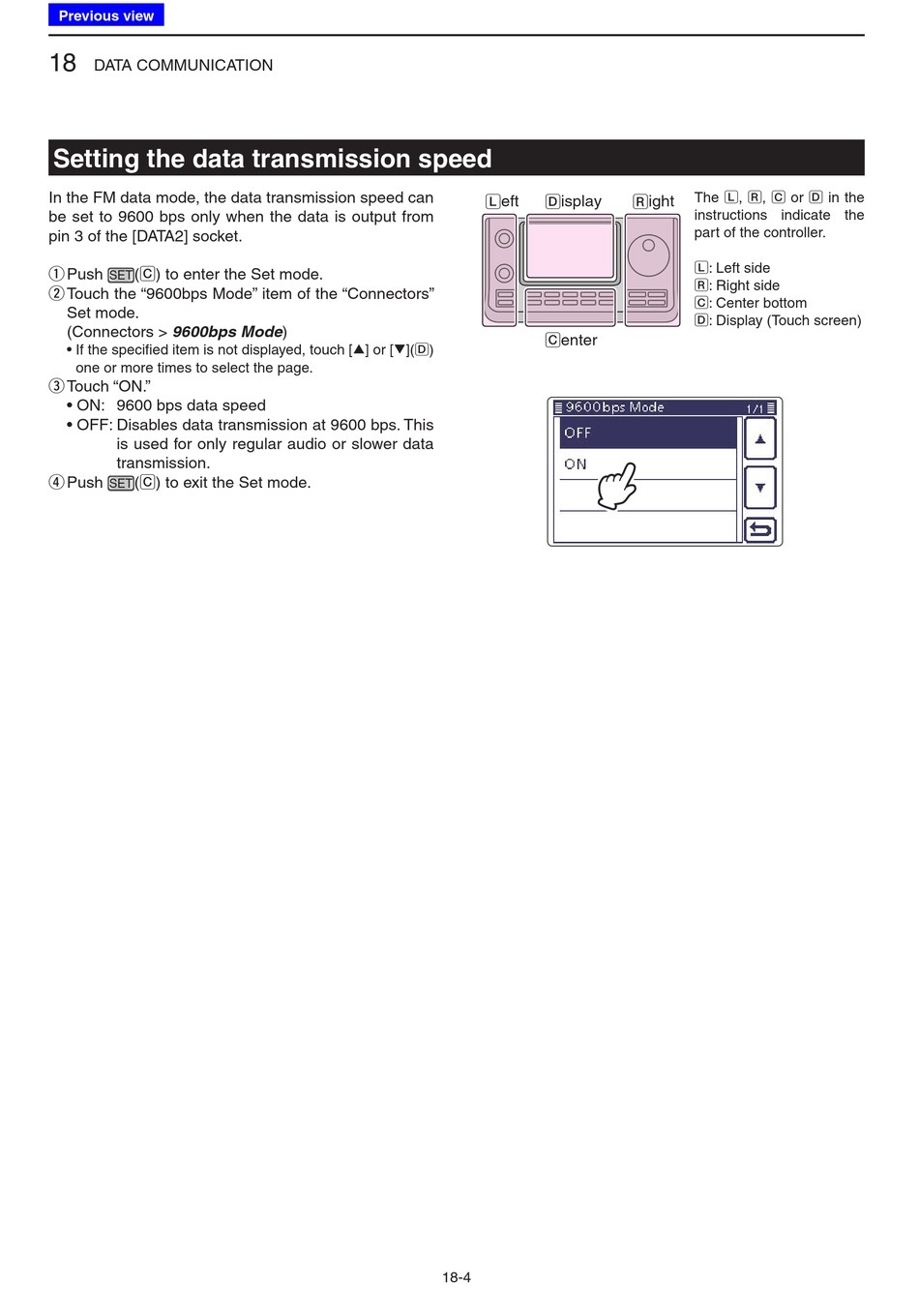

18
DATA COMMUNICATION
Setting the data transmission speed
In the FM data mode, the data transmission speed can
be set to 9600 bps only when the data is output from
pin 3 of the [DATA2] socket.
Push
(C) to enter the Set mode.
q
SET
Touch the "9600bps Mode" item of the "Connectors"
w
Set mode.
(Connectors > 9600bps Mode)
• If the specified item is not displayed, touch [∫] or [√](D)
one or more times to select the page.
Touch "ON."
e
• ON: 9600 bps data speed
• OFF: Disables data transmission at 9600 bps. This
is used for only regular audio or slower data
transmission.
Push
(C) to exit the Set mode.
r
SET
L eft
D isplay
C enter
18-4
The L, R, C or D in the
R ight
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
