PANEL DESCRIPTION

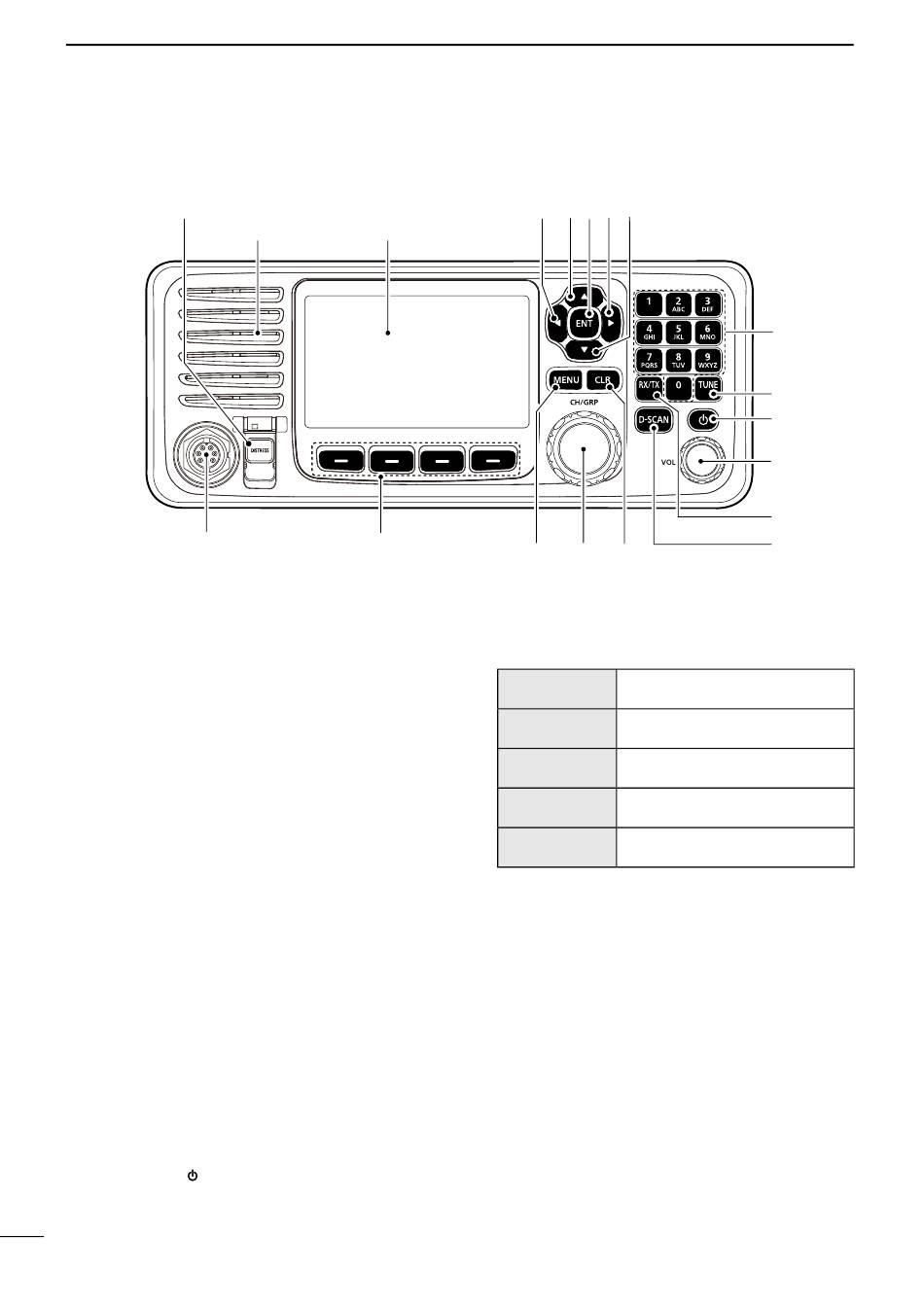

■ Remote Controller front panel

1
MICROPHONE
CONNECTOR
(pp. 63, 71)
1 DISTRESS KEY [DISTRESS]
Hold down for 3 seconds to transmit a Distress call.
(p. 24)
2 LEFT AND RIGHT KEYS [◄]/[►]
z Push to scroll the Software Key functions. (p. 4)
z In the Character or Number Entry mode, push to
select a character or number in the table.
3 UP AND DOWN KEYS [▲]/[▼]
z Push to select an operating channel, menu
items, menu settings, and so on.
4 ENTER KEY [ENT]
Push to set the entered data, selected item, and so on.
5 KEYPAD KEYS
Push to enter numbers, letters, or symbols.
6 TUNE KEY [TUNE]
When the AT-141 is connected:
z Push to start manual tuning or to bypass the
tuning circuit.
z Hold down to start manual tuning.
L "TUNE" is displayed after tuning is completed.
L "THRU" is displayed if the tuner cannot tune the
antenna.
When the other antenna tuner is connected:
z Push to start manual tuning.
7 POWER KEY [ ]
Hold down for 1 second to turn the transceiver ON
or OFF.
3
SPEAKER FUNCTION DISPLAY (p. 6)
SOFTWARE KEYS (p. 4)
2 3 4 2 3
13 12 11
8 VOLUME DIAL [VOL]
z Rotate to adjust the speaker volume level.
z Push 1 ~ 5 times to display the setting screens.
The Volume Setting window is
Pushing once
displayed.
The NB Level Setting window is
Pushing twice
displayed.
The S-SQL Level Setting window
Pushing 3 times
is displayed.
The RF Gain Setting window is
Pushing 4 times
displayed.
The Backlight Settings window is
Pushing 5 times
displayed.
9 RX/TX KEY [RX/TX]
Push to set a temporary operating frequency.
(p. 16)
10 DSC SCAN KEY [D-SCAN]
Push to start a DSC scan. (p. 10)
11 CLEAR KEY [CLR]
Push to cancel the entered data or to return to the
previous screen.
12 CHANNEL/GROUP SELECTOR [CH/GRP]
z Push to select the Channel Select mode or the
Group Select mode. (p. 9)
z Push to set the entered data, selected item, and
so on.
z Rotate to select the operating channel, menu
items, menu settings, and so on.
13 MENU KEY [MENU]
Push to enter or exit the Menu screen.
5
6
7
8
9
10
