20

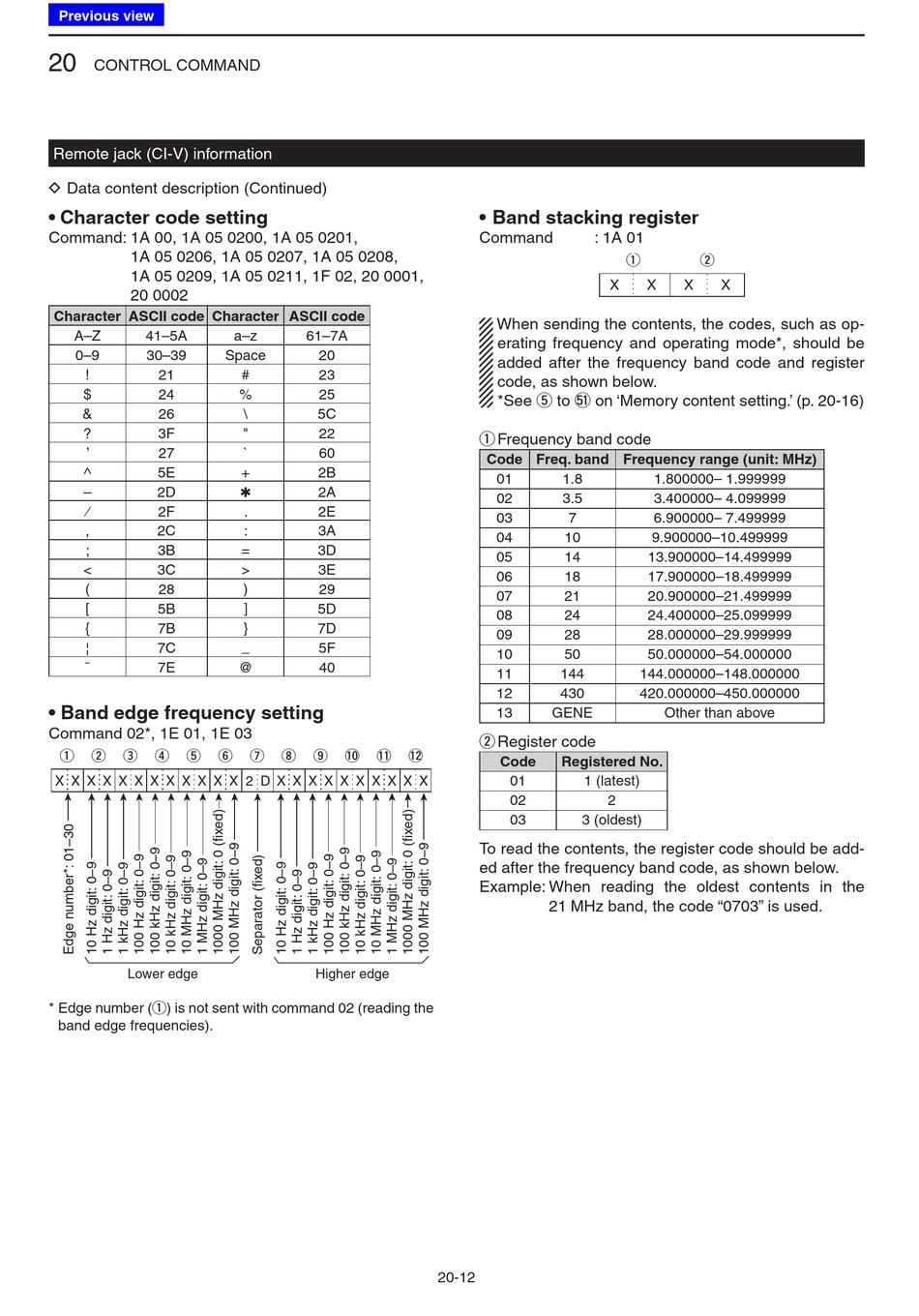

CONTROL COMMAND
Remote jack (CI-V) information
D
Data content description (Continued)
• Character code setting
Command: 1A 00, 1A 05 0200, 1A 05 0201,
1A 05 0206, 1A 05 0207, 1A 05 0208,
1A 05 0209, 1A 05 0211, 1F 02, 20 0001,
20 0002
Character ASCII code Character ASCII code
A–Z
41–5A
0–9
30–39
!
21
$
24
&
26
?
3F
'
27
^
5E
2D
2F
,
2C
;
3B
<
3C
(
28
[
5B
{
7B
¦
7C
¯
7E
• Band edge frequency setting
Command 02*, 1E 01, 1E 03
q
w
e
r
t
y
X X X
X X X X X X X X X 2 D X X X X X X X X X X
Lower edge
* Edge number (q) is not sent with command 02 (reading the
band edge frequencies).
a–z
61–7A
Space
20
#
23
%
25
\
5C
"
22
`
60
+
2B
2A
.
2E
:
3A
=
3D
>
3E
)
29
]
5D
}
7D
_
5F
@
40
u
i
o
!0
!1
Higher edge
• Band stacking register
Command
When sending the contents, the codes, such as op-
erating frequency and operating mode*, should be
added after the frequency band code and register
code, as shown below.
* See t to %1 on 'Memory content setting.' (p. 20-16)
Frequency band code
q
Code Freq. band Frequency range (unit: MHz)
01
1.8
02
3.5
03
7
04
10
05
14
06
18
07
21
08
24
09
28
10
50
11
144
12
430
13
GENE
Register code
w
!2
Code
Registered No.
01
02
03
To read the contents, the register code should be add-
ed after the frequency band code, as shown below.
Example: When reading the oldest contents in the
21 MHz band, the code "0703" is used.
20-12
: 1A 01
q
w
X
X
X
X
1.800000– 1.999999
3.400000– 4.099999
6.900000– 7.499999
9.900000–10.499999
13.900000–14.499999
17.900000–18.499999
20.900000–21.499999
24.400000–25.099999
28.000000–29.999999
50.000000–54.000000
144.000000–148.000000
420.000000–450.000000
Other than above
1 (latest)
2
3 (oldest)
