Previous view
3
BASIC OPERATION

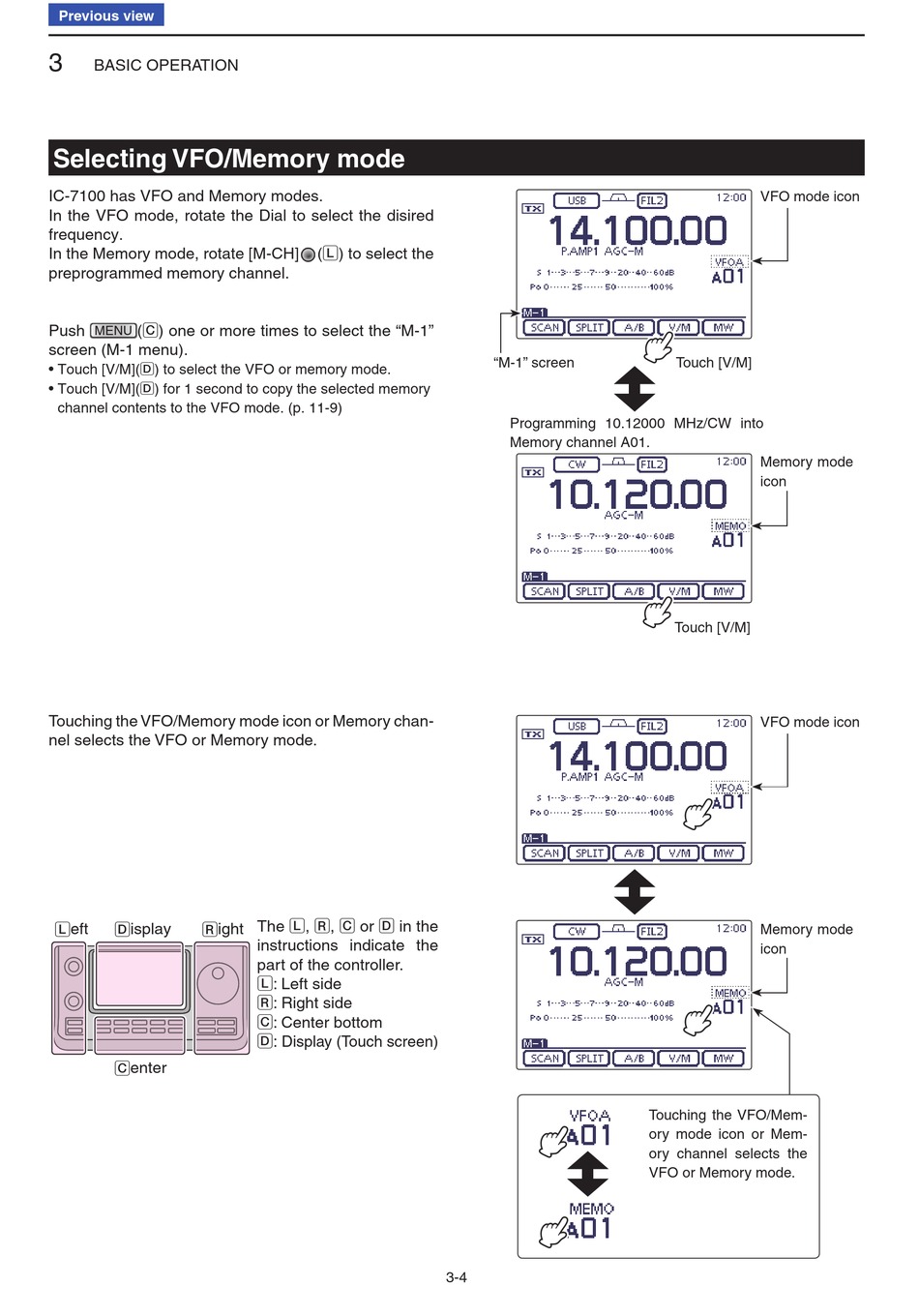

Selecting VFO/Memory mode
IC-7100 has VFO and Memory modes.
In the VFO mode, rotate the Dial to select the disired
frequency.
In the Memory mode, rotate [M-CH]
preprogrammed memory channel.
Push
(C) one or more times to select the "M-1"
MENU
screen (M-1 menu).
• Touch [V/M](D) to select the VFO or memory mode.
• Touch [V/M](D) for 1 second to copy the selected memory
channel contents to the VFO mode. (p. 11-9)
Touching the VFO/Memory mode icon or Memory chan-
nel selects the VFO or Memory mode.
L eft
D isplay
R ight
C enter
(L) to select the
The L, R, C or D in the
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
"M-1" screen
Programming 10.12000 MHz/CW into
Memory channel A01.
3-4
VFO mode icon
Touch [V/M]
Memory mode
icon
Touch [V/M]
VFO mode icon
Memory mode
icon
Touching the VFO/Mem-
ory mode icon or Mem-
ory channel selects the
VFO or Memory mode.
