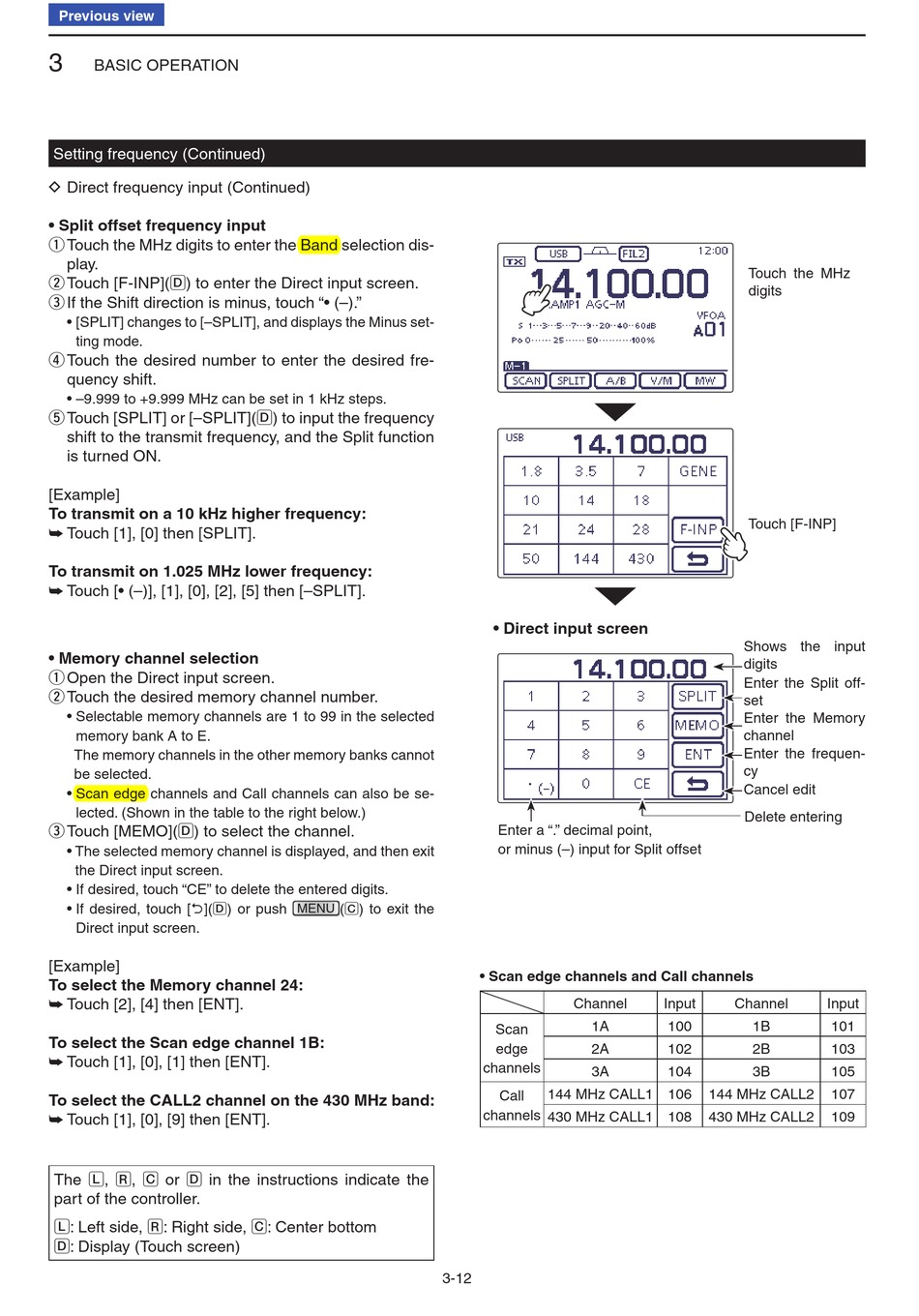

BASIC OPERATION
Setting frequency (Continued)
D
Direct frequency input (Continued)
• Split offset frequency input
Touch the MHz digits to enter the Band selection dis-
q
play.
Touch [F-INP](
D) to enter the Direct input screen.
w
If the Shift direction is minus, touch "• (–)."
e
• [SPLIT] changes to [–SPLIT], and displays the Minus set-
ting mode.
Touch the desired number to enter the desired fre-
r
quency shift.
• –9.999 to +9.999 MHz can be set in 1 kHz steps.
Touch [SPLIT] or [–SPLIT](
t
shift to the transmit frequency, and the Split function
is turned ON.
[Example]
To transmit on a 10 kHz higher frequency:
Touch [1], [0] then [SPLIT].
To transmit on 1.025 MHz lower frequency:
Touch [• (–)], [1], [0], [2], [5] then [–SPLIT].
• Memory channel selection
Open the Direct input screen.
q
Touch the desired memory channel number.
w
• Selectable memory channels are 1 to 99 in the selected
memory bank A to E.
The memory channels in the other memory banks cannot
be selected.
• Scan edge channels and Call channels can also be se-
lected. (Shown in the table to the right below.)
Touch [MEMO](
D) to select the channel.
e
• The selected memory channel is displayed, and then exit
the Direct input screen.
• If desired, touch "CE" to delete the entered digits.
• If desired, touch [](D) or push
Direct input screen.
[Example]
To select the Memory channel 24:
Touch [2], [4] then [ENT].
To select the Scan edge channel 1B:
Touch [1], [0], [1] then [ENT].
To select the CALL2 channel on the 430 MHz band:
Touch [1], [0], [9] then [ENT].
The L, R, C or D in the instructions indicate the
part of the controller.
L: Left side, R: Right side, C: Center bottom
D: Display (Touch screen)
D) to input the frequency
(C) to exit the
MENU
• Direct input screen
Enter a "." decimal point,
or minus (–) input for Split offset
• Scan edge channels and Call channels
Channel
1A
Scan
edge
2A
channels
3A
144 MHz CALL1 106
Call
channels
430 MHz CALL1 108
3-12
Touch the MHz
digits
Touch [F-INP]
Shows the input
digits
Enter the Split off-
set
Enter the Memory
channel
Enter the frequen-
cy
Cancel edit
Delete entering
Input
Channel
Input
100
1B
101
102
2B
103
104
3B
105
144 MHz CALL2
107
430 MHz CALL2
109
