6
FUNCTIONS FOR TRANSMIT
Break-in function (Continued)

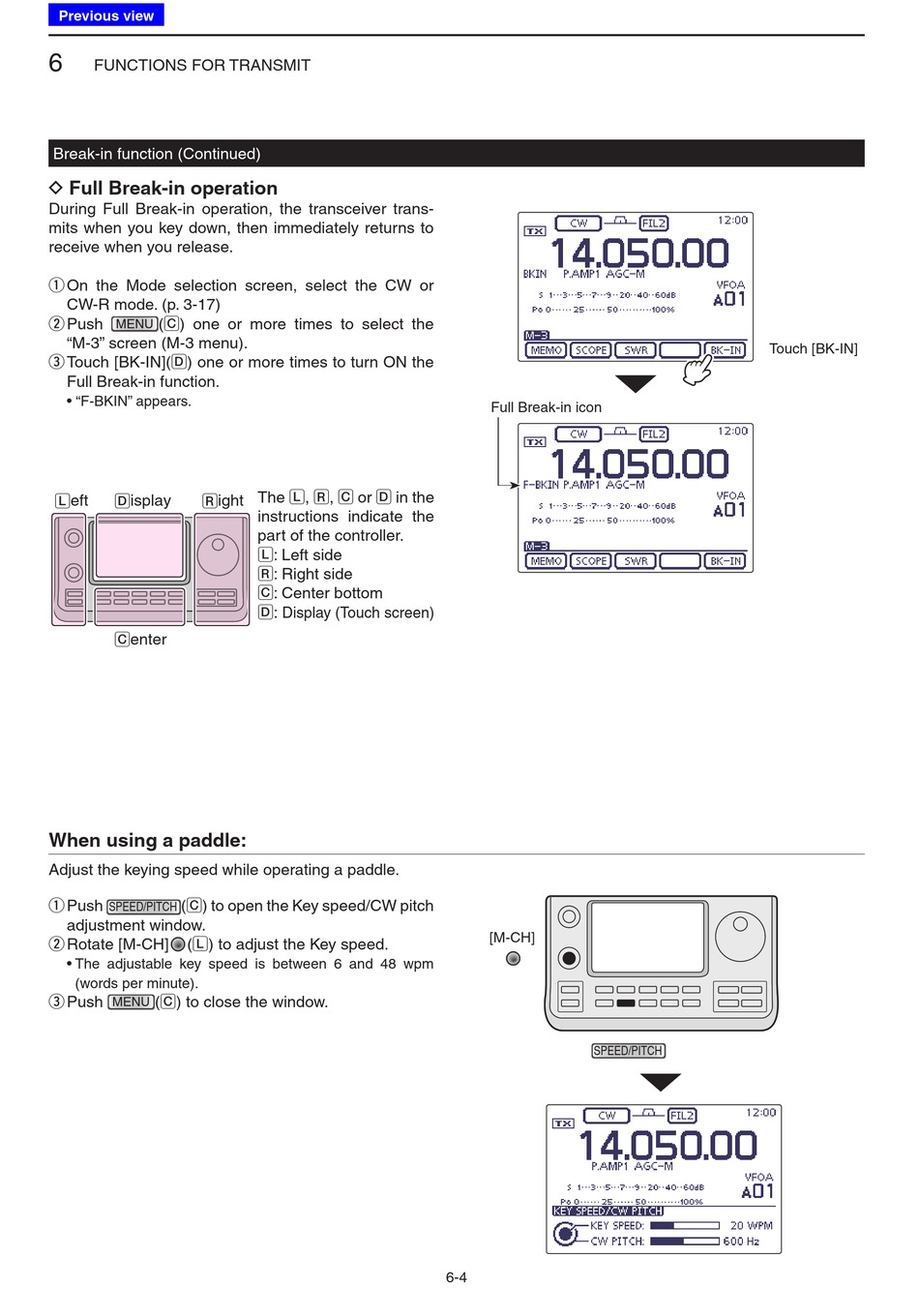

D Full Break-in operation

During Full Break-in operation, the transceiver trans-
mits when you key down, then immediately returns to
receive when you release.
On the Mode selection screen, select the CW or
q
CW-R mode. (p. 3-17)
Push (C) one or more times to select the
w
MENU
"M-3" screen (M-3 menu).
Touch [BK-IN]( D) one or more times to turn ON the
e
Full Break-in function.
• "F-BKIN" appears.
L eft D isplay R ight
C enter
When using a paddle:
Adjust the keying speed while operating a paddle.
Push (C) to open the Key speed/CW pitch
q
SPEED/PITCH
adjustment window.
Rotate [M-CH] (L) to adjust the Key speed.
w
• The adjustable key speed is between 6 and 48 wpm
(words per minute).
Push (C) to close the window.
e
MENU
The L, R, C or D in the
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
Full Break-in icon
[M-CH]
SPEED/PITCH
6-4
Touch [BK-IN]
