1

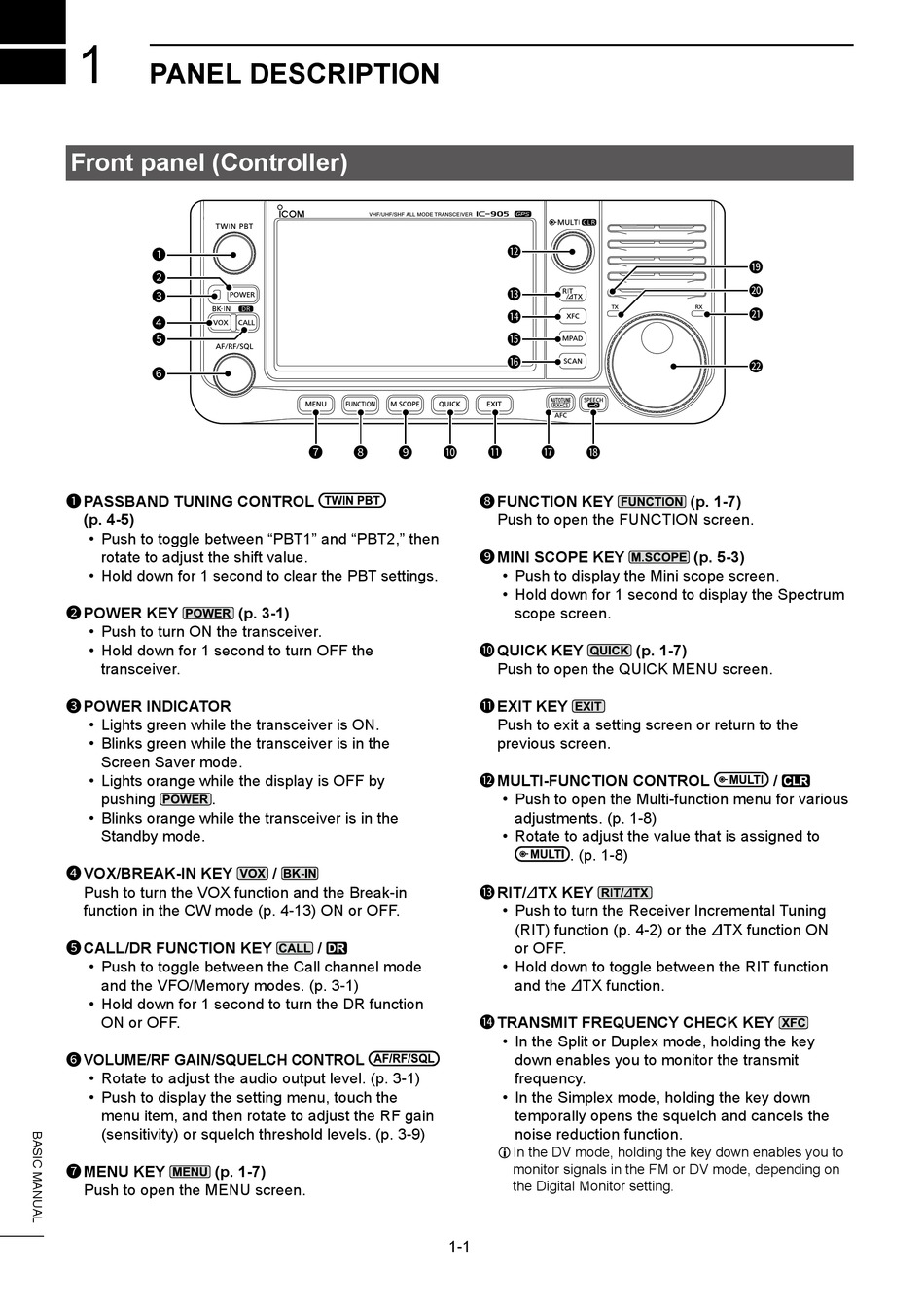

PANEL DESCRIPTION

Front panel (Controller)

1
2
3
4
5
6
1 PASSBAND TUNING CONTROL
(p. 4-5)
• Push to toggle between "PBT1" and "PBT2," then
rotate to adjust the shift value.
• Hold down for 1 second to clear the PBT settings.
2 POWER KEY (p. 3-1)
• Push to turn ON the transceiver.
• Hold down for 1 second to turn OFF the
transceiver.
3 POWER INDICATOR
• Lights green while the transceiver is ON.
• Blinks green while the transceiver is in the
Screen Saver mode.
• Lights orange while the display is OFF by
pushing .
• Blinks orange while the transceiver is in the
Standby mode.
4 VOX/BREAK-IN KEY
Push to turn the VOX function and the Break-in
function in the CW mode (p. 4-13) ON or OFF.
5 CALL/DR FUNCTION KEY
• Push to toggle between the Call channel mode
and the VFO/Memory modes. (p. 3-1)
• Hold down for 1 second to turn the DR function
ON or OFF.
6 VOLUME/RF GAIN/SQUELCH CONTROL
• Rotate to adjust the audio output level. (p. 3-1)
• Push to display the setting menu, touch the
menu item, and then rotate to adjust the RF gain
(sensitivity) or squelch threshold levels. (p. 3-9)
7 MENU KEY (p. 1-7)
Push to open the MENU screen.
7 8 9 10
/
/
12
13
14
15
16
11 17 18
8 FUNCTION KEY
Push to open the FUNCTION screen.
9 MINI SCOPE KEY
• Push to display the Mini scope screen.
• Hold down for 1 second to display the Spectrum
scope screen.
10 QUICK KEY
Push to open the QUICK MENU screen.
11 EXIT KEY
Push to exit a setting screen or return to the
previous screen.
12 MULTI-FUNCTION CONTROL
• Push to open the Multi-function menu for various
adjustments. (p. 1-8)
• Rotate to adjust the value that is assigned to
. (p. 1-8)
13 RIT/∂TX KEY
• Push to turn the Receiver Incremental Tuning
(RIT) function (p. 4-2) or the ∂TX function ON
or OFF.
• Hold down to toggle between the RIT function
and the ∂TX function.
14 TRANSMIT FREQUENCY CHECK KEY
• In the Split or Duplex mode, holding the key
down enables you to monitor the transmit
frequency.
• In the Simplex mode, holding the key down
temporally opens the squelch and cancels the
noise reduction function.
L In the DV mode, holding the key down enables you to
monitor signals in the FM or DV mode, depending on
the Digital Monitor setting.
1-1
19
20
21
22
(p. 1-7)
(p. 5-3)
(p. 1-7)
/
