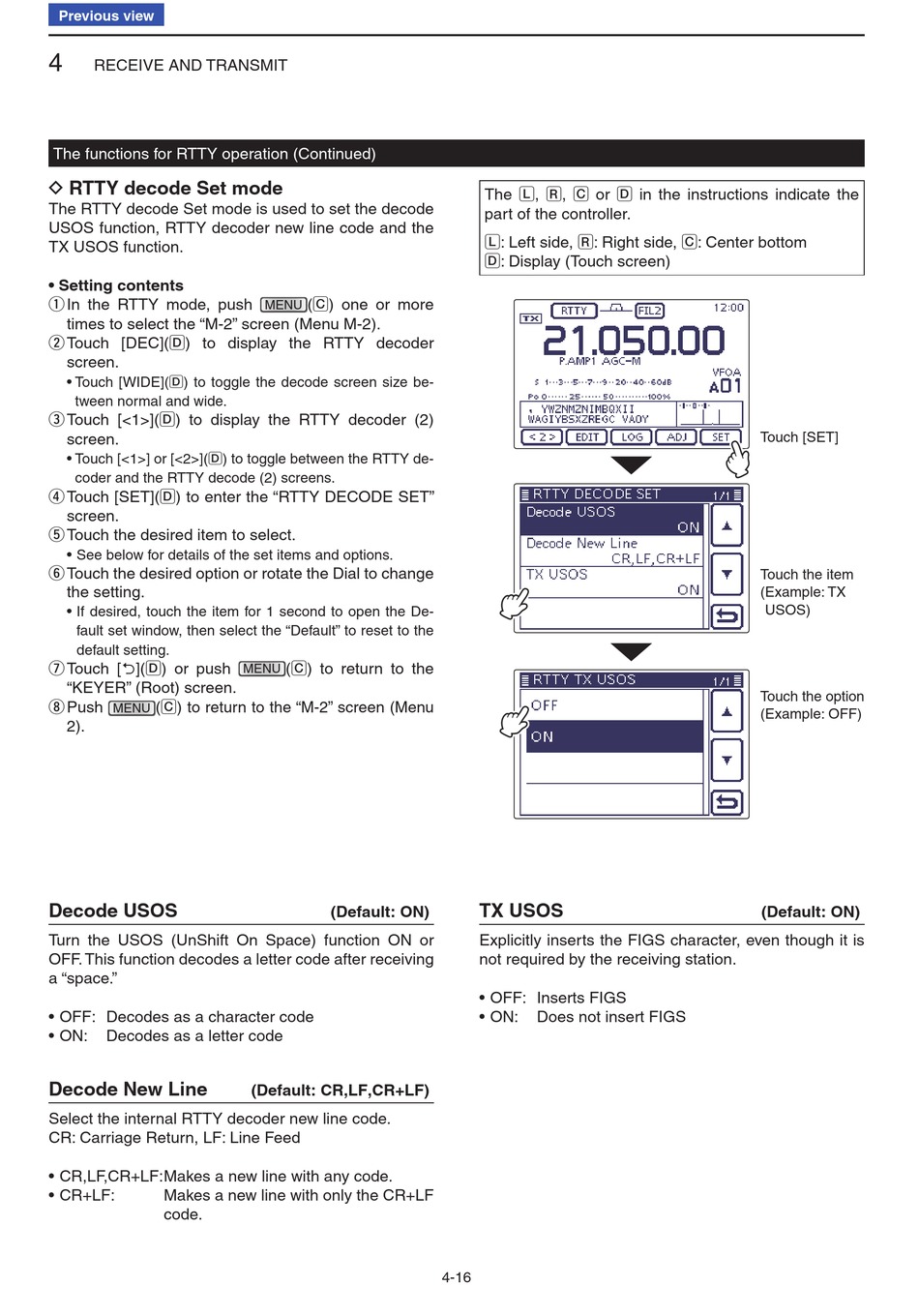

Drtty Decode Set Mode - Icom IC-7100 Advanced Instructions

Previous view
4
RECEIVE AND TRANSMIT
The functions for RTTY operation (Continued)
D RTTY decode Set mode
The RTTY decode Set mode is used to set the decode
USOS function, RTTY decoder new line code and the
TX USOS function.
• Setting contents
In the RTTY mode, push
q
times to select the "M-2" screen (Menu M-2).
Touch [DEC]( D) to display the RTTY decoder
w
screen.
• Touch [WIDE](D) to toggle the decode screen size be-
tween normal and wide.
Touch [<1>]( D) to display the RTTY decoder (2)
e
screen.
• Touch [<1>] or [<2>](D) to toggle between the RTTY de-
coder and the RTTY decode (2) screens.
Touch [SET]( D) to enter the "RTTY DECODE SET"
r
screen.
Touch the desired item to select.
t
• See below for details of the set items and options.
Touch the desired option or rotate the Dial to change
y
the setting.
• If desired, touch the item for 1 second to open the De-
fault set window, then select the "Default" to reset to the
default setting.
Touch [ ](D) or push
u
"KEYER" (Root) screen.
Push (C) to return to the "M-2" screen (Menu
i
MENU
2).
Decode USOS
Turn the USOS (UnShift On Space) function ON or
OFF. This function decodes a letter code after receiving
a "space."
• OFF: Decodes as a character code
• ON: Decodes as a letter code
Decode New Line
Select the internal RTTY decoder new line code.
CR: Carriage Return, LF: Line Feed
• CR,LF,CR+LF:Makes a new line with any code.
• CR+LF: Makes a new line with only the CR+LF
code.
(C) one or more
MENU
(C) to return to the
MENU
(Default: ON)
(Default: CR,LF,CR+LF)
The L, R, C or D in the instructions indicate the
part of the controller.
L: Left side, R: Right side, C: Center bottom
D: Display (Touch screen)
TX USOS
Explicitly inserts the FIGS character, even though it is
not required by the receiving station.
• OFF: Inserts FIGS
• ON: Does not insert FIGS
4-16
Touch [SET]
Touch the item
( Example: TX
USOS)
Touch the option
(Example: OFF)
(Default: ON)
