7

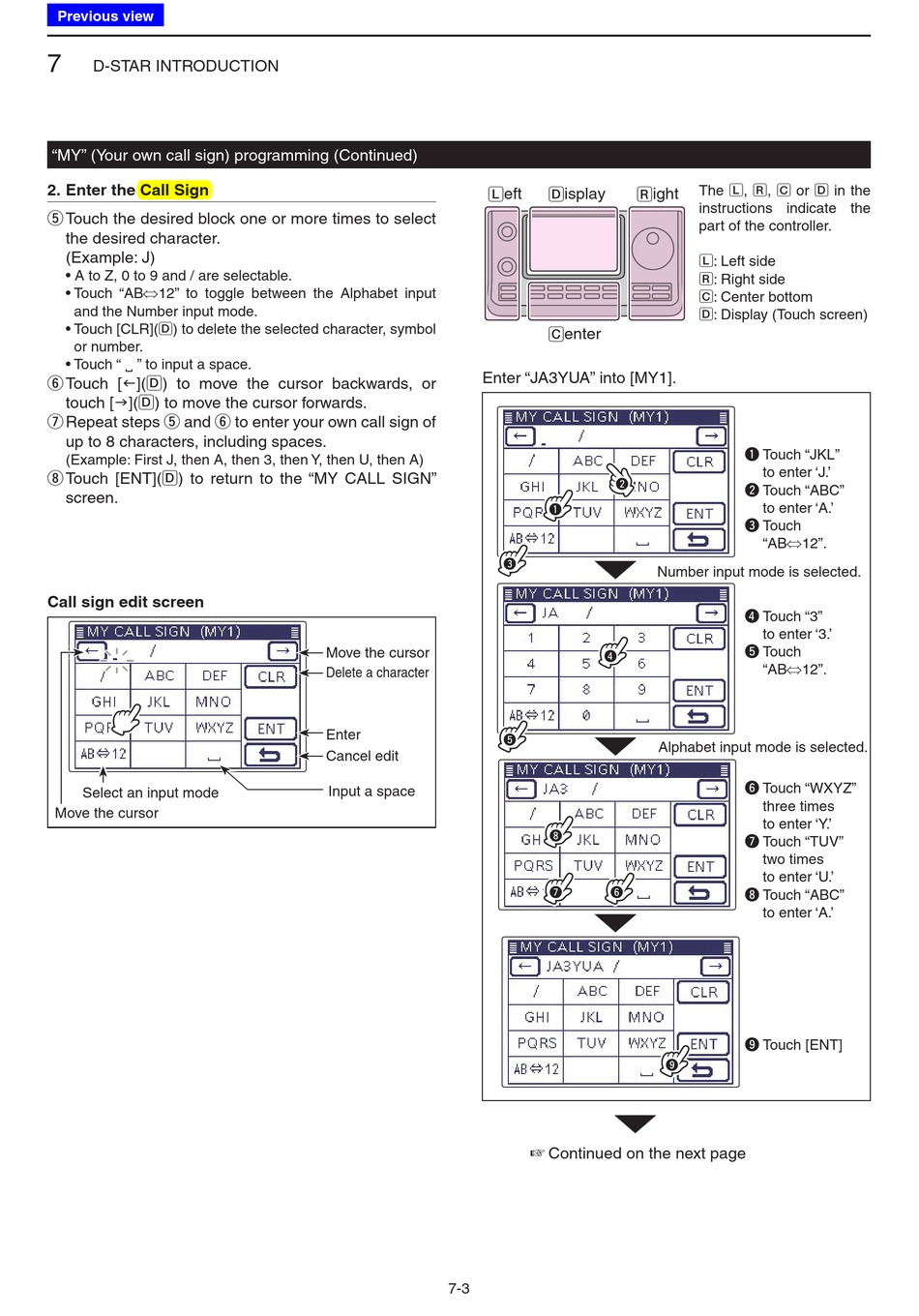

D-STAR INTRODUCTION
"MY" (Your own call sign) programming (Continued)
2.
Enter the Call Sign
Touch the desired block one or more times to select
t
the desired character.
(Example: J)
• A to Z, 0 to 9 and / are selectable.
• Touch "AB⇔12" to toggle between the Alphabet input
and the Number input mode.
• Touch [CLR](D) to delete the selected character, symbol
or number.
• Touch "  " to input a space.
Touch [
f](D) to move the cursor backwards, or
y
touch [g](D) to move the cursor forwards.
Repeat steps
t and y to enter your own call sign of
u
up to 8 characters, including spaces.
(Example: First J, then A, then 3, then Y, then U, then A)
Touch [ENT](
D) to return to the "MY CALL SIGN"
i
screen.
Call sign edit screen
Select an input mode
Move the cursor
L eft
Enter "JA3YUA" into [MY1].
Move the cursor
Delete a character
Enter
Cancel edit
Input a space
7-3
D isplay
R ight
C enter
w
q
e
Number input mode is selected.
r
t
Alphabet input mode is selected.
i
u
y
o
Continued on the next page
The L, R, C or D in the
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
q Touch "JKL"
to enter 'J.'
w Touch "ABC"
to enter 'A.'
e Touch
"AB⇔12".
r Touch "3"
to enter '3.'
t Touch
"AB⇔12".
y Touch "WXYZ"
three times
to enter 'Y.'
u Touch "TUV"
two times
to enter 'U.'
i Touch "ABC"
to enter 'A.'
o Touch [ENT]
