MAINTENANCE
Data cloning (Continued)
D

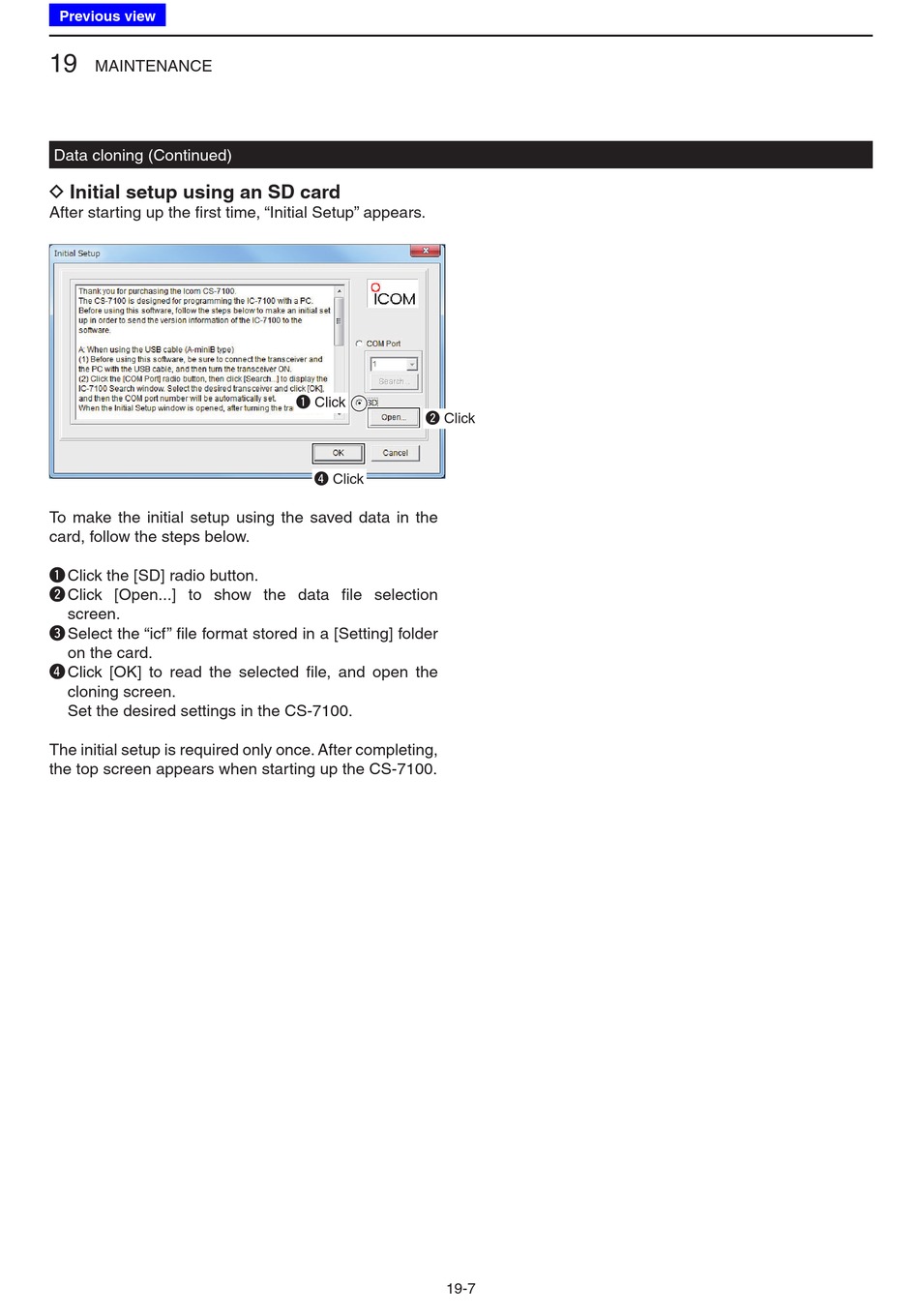

Initial setup using an SD card
After starting up the first time, "Initial Setup" appears.
To make the initial setup using the saved data in the
card, follow the steps below.
q Click the [SD] radio button.
w Click [Open...] to show the data file selection
screen.
e Select the "icf" file format stored in a [Setting] folder
on the card.
r Click [OK] to read the selected file, and open the
cloning screen.
Set the desired settings in the CS-7100.
The initial setup is required only once. After completing,
the top screen appears when starting up the CS-7100.
q Click
w Click
r Click
19-7
