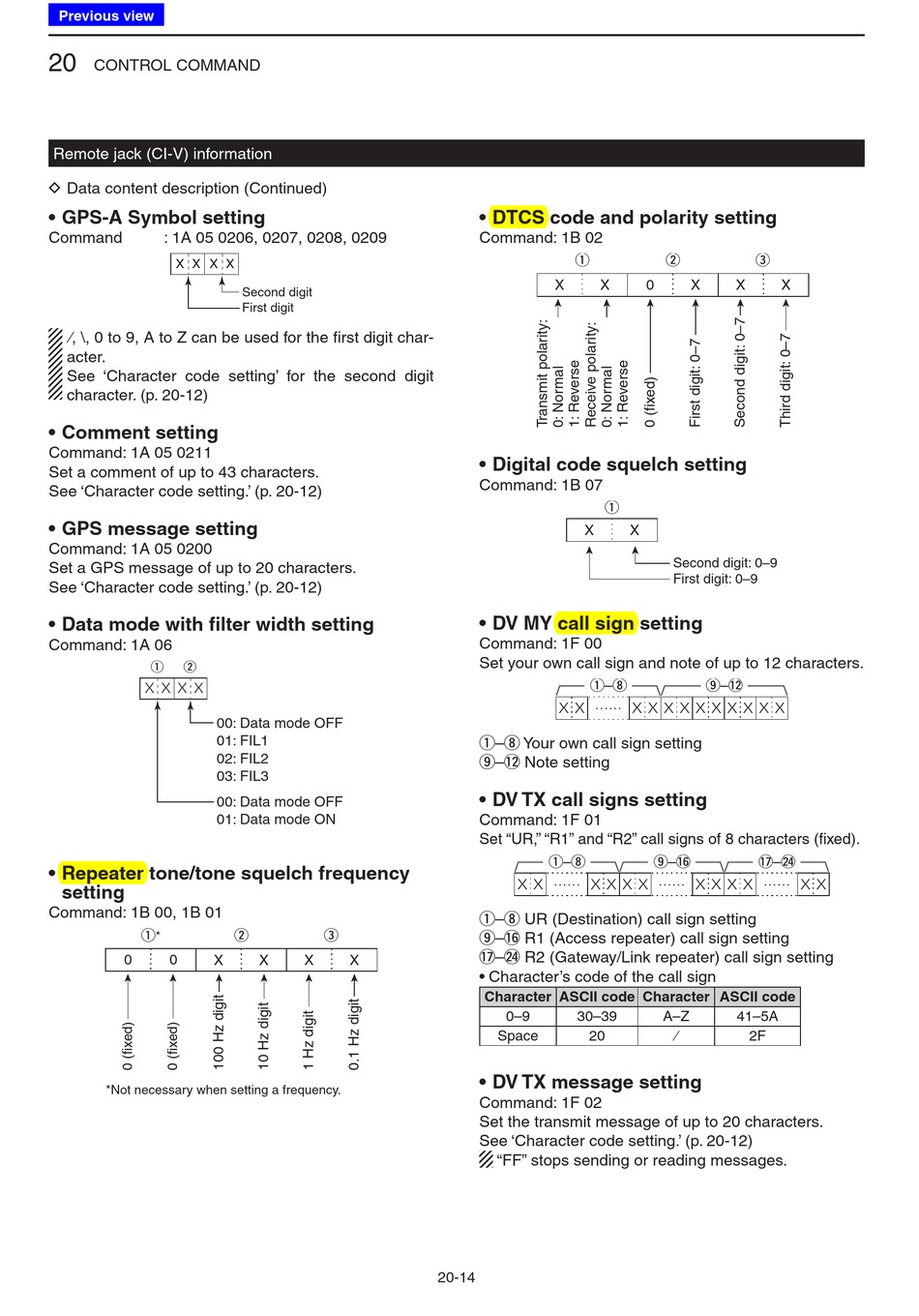

• GPS-A Symbol setting
Command
: 1A 05 0206, 0207, 0208, 0209
X X X X
⁄, \, 0 to 9, A to Z can be used for the first digit char-
acter.
See 'Character code setting' for the second digit
character. (p. 20-12)
• Comment setting
Command: 1A 05 0211
Set a comment of up to 43 characters.
See 'Character code setting.' (p. 20-12)
• GPS message setting
Command: 1A 05 0200
Set a GPS message of up to 20 characters.
See 'Character code setting.' (p. 20-12)
• Data mode with filter width setting
Command: 1A 06
q
w
00: Data mode OFF
01: FIL1
02: FIL2
03: FIL3
00: Data mode OFF
01: Data mode ON
• Repeater tone/tone squelch frequency
setting
Command: 1B 00, 1B 01
q
*
0
0
X
*Not necessary when setting a frequency.
Second digit
First digit
w
e
X
X
X
• DTCS code and polarity setting
Command: 1B 02
q
X
X
• Digital code squelch setting
Command: 1B 07
q
X
• DV MY call sign setting
Command: 1F 00
Set your own call sign and note of up to 12 characters.
q–i
q–i Your own call sign setting
o–!2 Note setting
• DV TX call signs setting
Command: 1F 01
Set "UR," "R1" and "R2" call signs of 8 characters (fixed).
q–i
q–i UR (Destination) call sign setting
o–!6 R1 (Access repeater) call sign setting
!7 – @4 R2 (Gateway/Link repeater) call sign setting
• Character's code of the call sign
Character ASCII code Character ASCII code
0–9
30–39
Space
20
• DV TX message setting
Command: 1F 02
Set the transmit message of up to 20 characters.
See 'Character code setting.' (p. 20-12)
"FF" stops sending or reading messages.
20-14
w
e
0
X
X
X
X
Second digit: 0–9
First digit: 0–9
o–!2
!7 – @4
o–!6
A–Z
41–5A
⁄
2F
