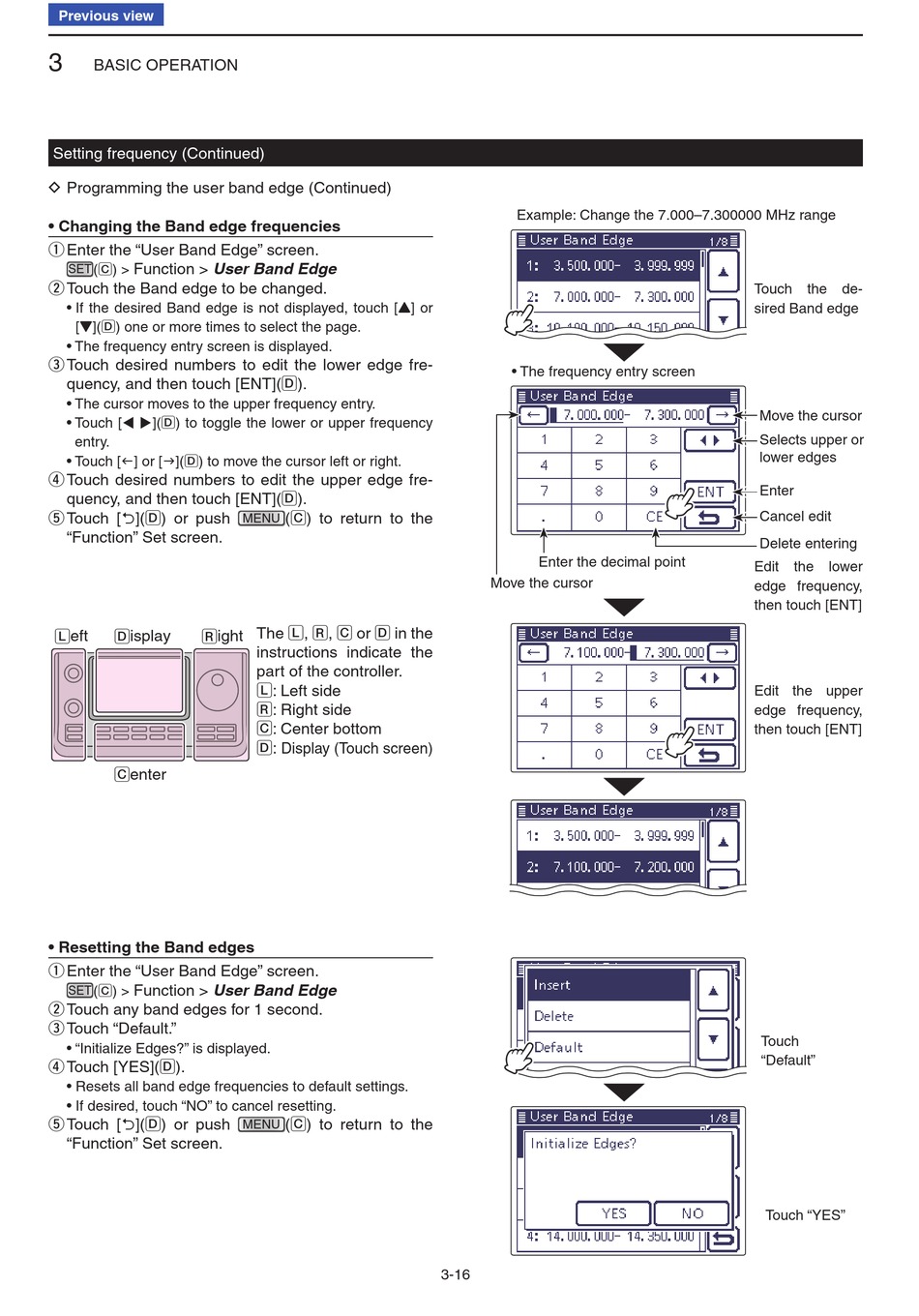

Icom IC-7100 Advanced Instructions page 54

Previous view
3
BASIC OPERATION
Setting frequency (Continued)
D
Programming the user band edge (Continued)
• Changing the Band edge frequencies
Enter the "User Band Edge" screen.
q
Function > User Band Edge
SET (C) >
Touch the Band edge to be changed.
w
• If the desired Band edge is not displayed, touch [Y] or
[Z](D) one or more times to select the page.
• The frequency entry screen is displayed.
Touch desired numbers to edit the lower edge fre-
e
quency, and then touch [ENT](D).
• The cursor moves to the upper frequency entry.
• Touch [t u](D) to toggle the lower or upper frequency
entry.
• Touch [f] or [g](D) to move the cursor left or right.
Touch desired numbers to edit the upper edge fre-
r
quency, and then touch [ENT](D).
Touch [ ](D) or push
t
"Function" Set screen.
L eft D isplay R ight
C enter
• Resetting the Band edges
Enter the "User Band Edge" screen.
q
Function > User Band Edge
SET (C) >
Touch any band edges for 1 second.
w
Touch "Default."
e
• "Initialize Edges?" is displayed.
Touch [YES](
r
D).
• Resets all band edge frequencies to default settings.
• If desired, touch "NO" to cancel resetting.
Touch [ ](D) or push
t
"Function" Set screen.
(C) to return to the
MENU
The L, R, C or D in the
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
(C) to return to the
MENU
Example: Change the 7.000–7.300000 MHz range
• The frequency entry screen
Enter the decimal point
Move the cursor
3-16
Touch the de-
sired Band edge
Move the cursor
Selects upper or
lower edges
Enter
Cancel edit
Delete entering
Edit the lower
edge frequency,
then touch [ENT]
Edit the upper
edge frequency,
then touch [ENT]
Touch
"Default"
Touch "YES"
