MEMORY OPERATION

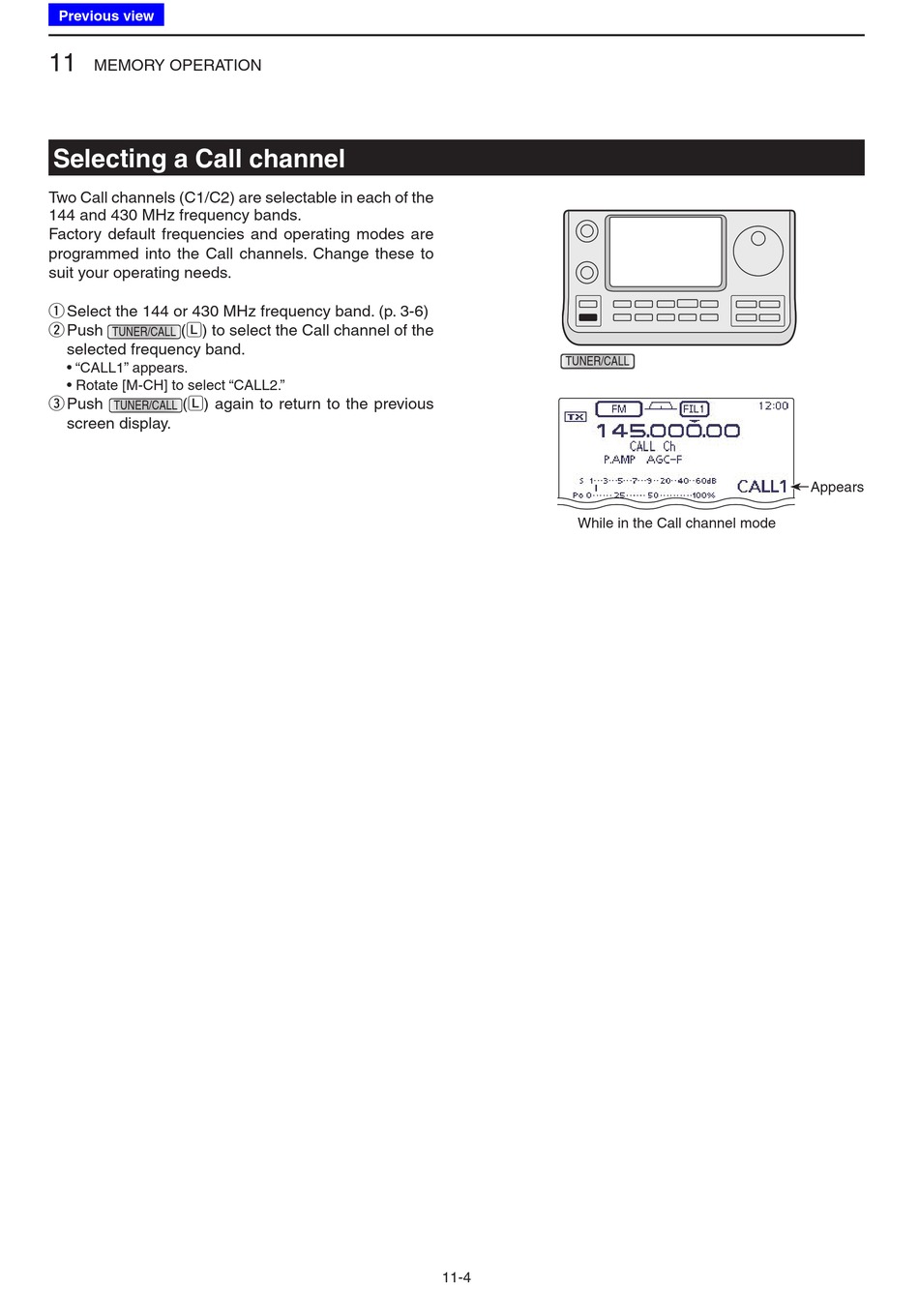

Selecting a Call channel
Two Call channels (C1/C2) are selectable in each of the
144 and 430 MHz frequency bands.
Factory default frequencies and operating modes are
programmed into the Call channels. Change these to
suit your operating needs.
Select
the 144 or 430 MHz frequency band. (p. 3-6)
q
Push
(L) to select the Call channel of the
w
TUNER/CALL
selected frequency band.
• "CALL1" appears.
• Rotate [M-CH] to select "CALL2."
Push
(L) again to return to the previous
e
TUNER/CALL
screen display.
TUNER/CALL
While in the Call channel mode
11-4
Appears
