PANEL DESCRIPTION
Controller — Function display (Continued)
!9

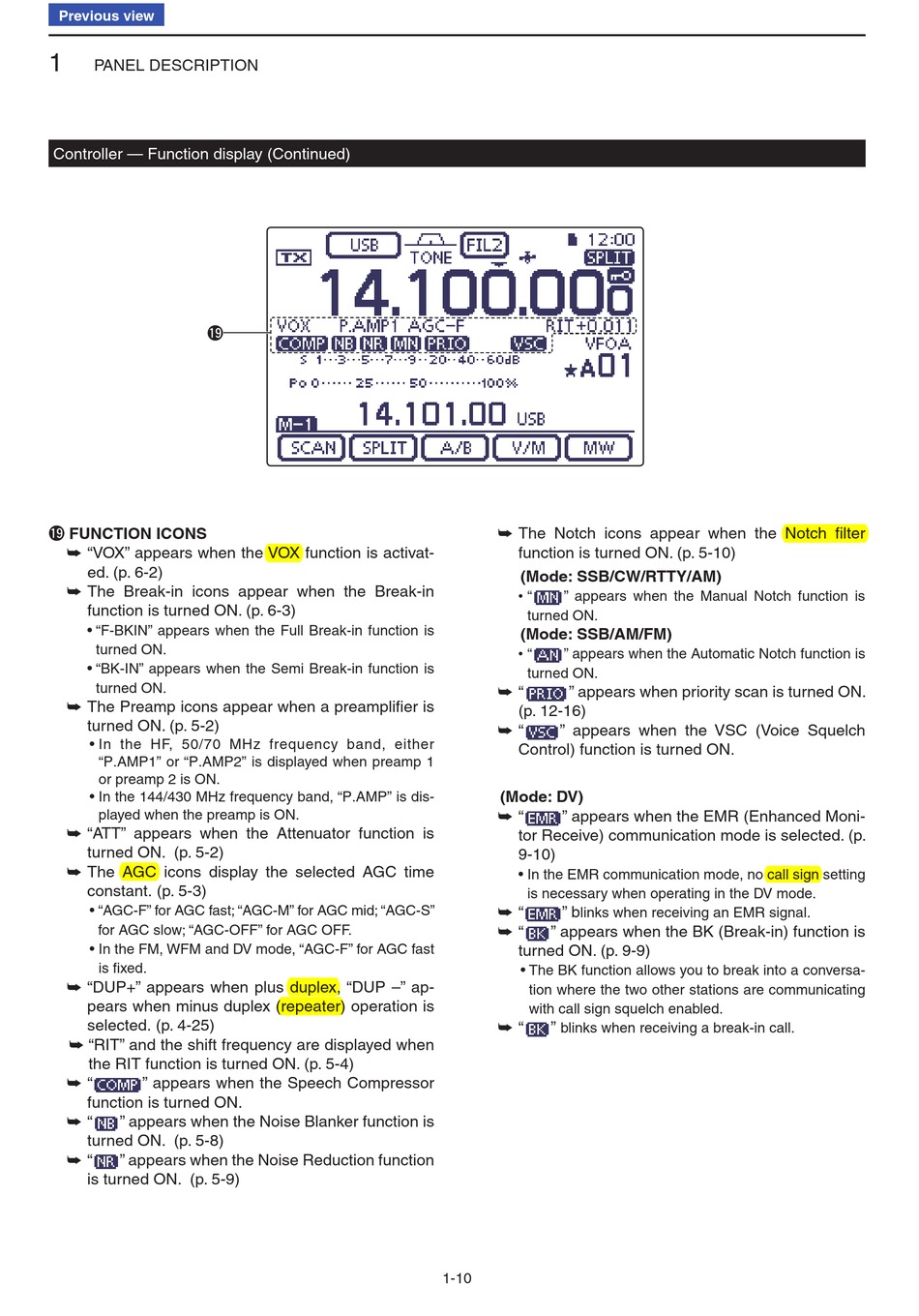

!9 FUNCTION ICONS
"VOX" appears when the VOX function is activat-
➥
ed. (p. 6-2)
The Break-in icons appear when the Break-in
➥
function is turned ON. (p. 6-3)
• "F-BKIN" appears when the Full Break-in function is
turned ON.
• "BK-IN" appears when the Semi Break-in function is
turned ON.
The Preamp icons appear when a preamplifier is
➥
turned ON. (p. 5-2)
• In the HF, 50/70 MHz frequency band, either
"P.AMP1" or "P.AMP2" is displayed when preamp 1
or preamp 2 is ON.
• In the 144/430 MHz frequency band, "P.AMP" is dis-
played when the preamp is ON.
"ATT" appears when the Attenuator function is
➥
turned ON. (p. 5-2)
The AGC icons display the selected AGC time
➥
constant. (p. 5-3)
• "AGC-F" for AGC fast; "AGC-M" for AGC mid; "AGC-S"
for AGC slow; "AGC-OFF" for AGC OFF.
• In the FM, WFM and DV mode, "AGC-F" for AGC fast
is fixed.
"DUP+" appears when plus duplex, "DUP –" ap-
➥
pears when minus duplex (repeater) operation is
selected. (p. 4-25)
➥ "RIT" and the shift frequency are displayed when
the RIT function is turned ON. (p. 5-4)
"
" appears when the Speech Compressor
➥
function is turned ON.
"
" appears when the Noise Blanker function is
➥
turned ON. (p. 5-8)
"
" appears when the Noise Reduction function
➥
is turned ON. (p. 5-9)
The Notch icons appear when the Notch filter
➥
function is turned ON. (p. 5-10)
(Mode: SSB/CW/RTTY/AM)
• "
" appears when the Manual Notch function is
turned ON.
(Mode: SSB/AM/FM)
• "
" appears when the Automatic Notch function is
turned ON.
"
" appears when priority scan is turned ON.
➥
(p. 12-16)
"
" appears when the VSC (Voice Squelch
➥
Control) function is turned ON.
(Mode: DV)
"
" appears when the EMR (Enhanced Moni-
➥
tor Receive) communication mode is selected. (p.
9-10)
• In the EMR communication mode, no call sign setting
is necessary when operating in the DV mode.
"
" b
links when receiving an EMR signal.
➥
➥ "
" appears when the BK (Break-in) function is
turned ON. (p. 9-9)
• The BK function allows you to break into a conversa-
tion where the two other stations are communicating
with call sign squelch enabled.
"
"
➥
blinks when receiving a break-in call.
